Chart 3: Left Front Window Inoperative, All Others Operate Normally

For testing procedure, see Fig 1 .

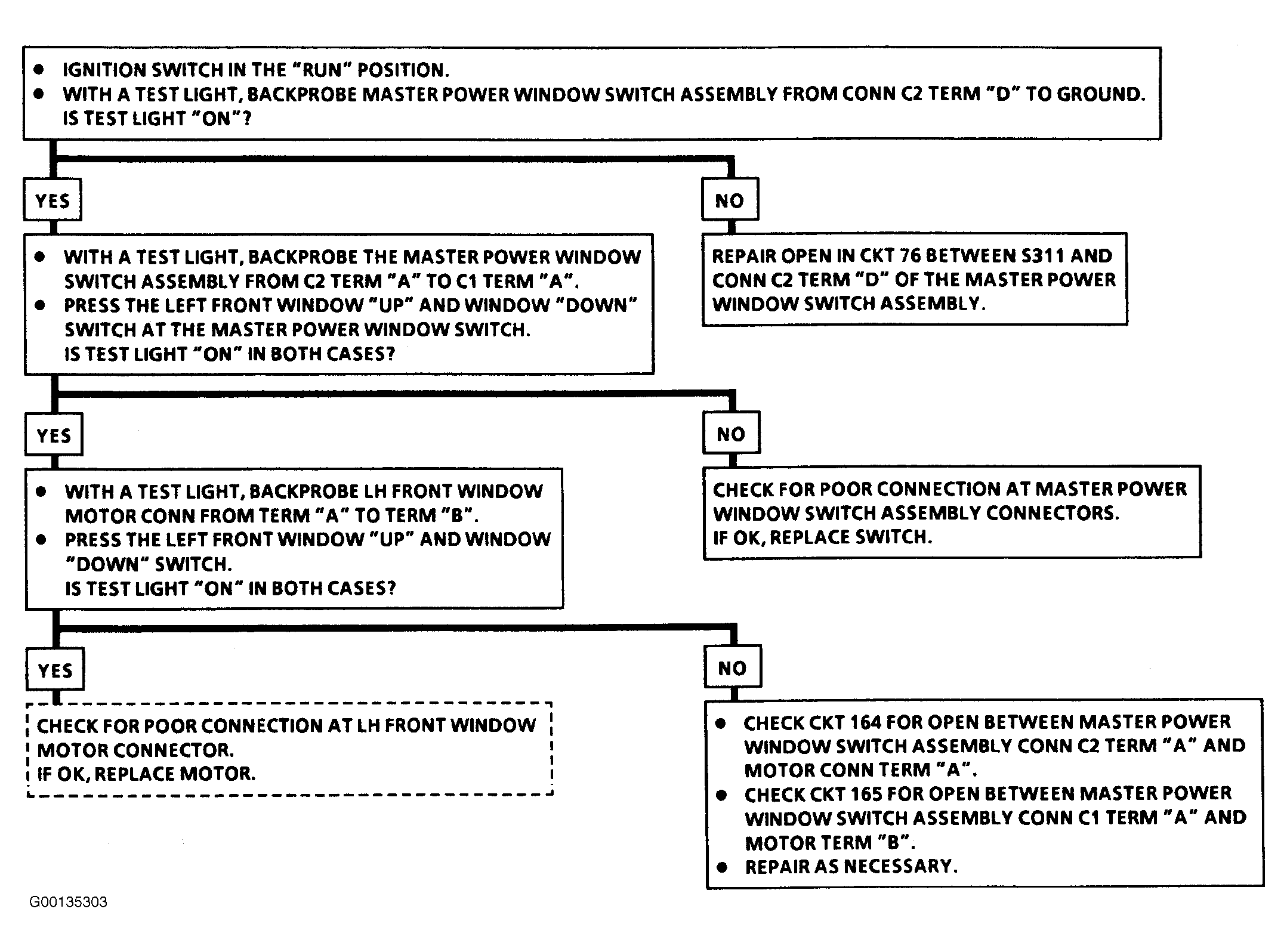

Fig 1: Chart 3: Left Front Window Inoperative, All Others Operate Normally

Courtesy of GENERAL MOTORS CORP.
