Code 71: EBCM Fault

EBCM has self-diagnostics that can detect internal failure within the module. If a failure is detected and sets a Code 71, anti-lock braking is disabled and EBCM turns on ANTI-LOCK indicator for remainder of ignition cycle.

If failure is intermittent, EBCM will enable the system at next ignition cycle and a History Code 71 will be present.

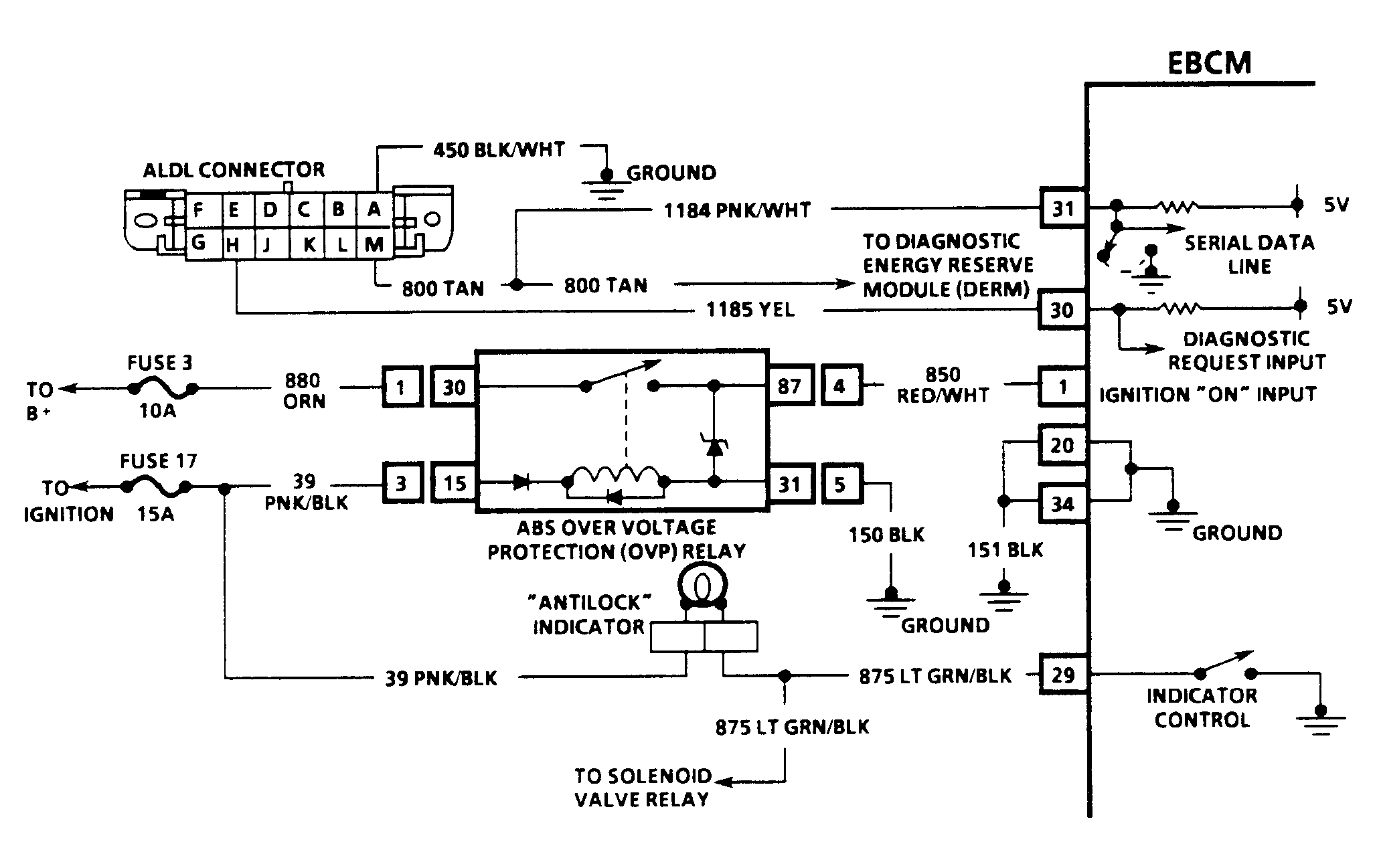

Fig 1: Code 71 Schematic - EBCM Fault

Courtesy of GENERAL MOTORS CORP.

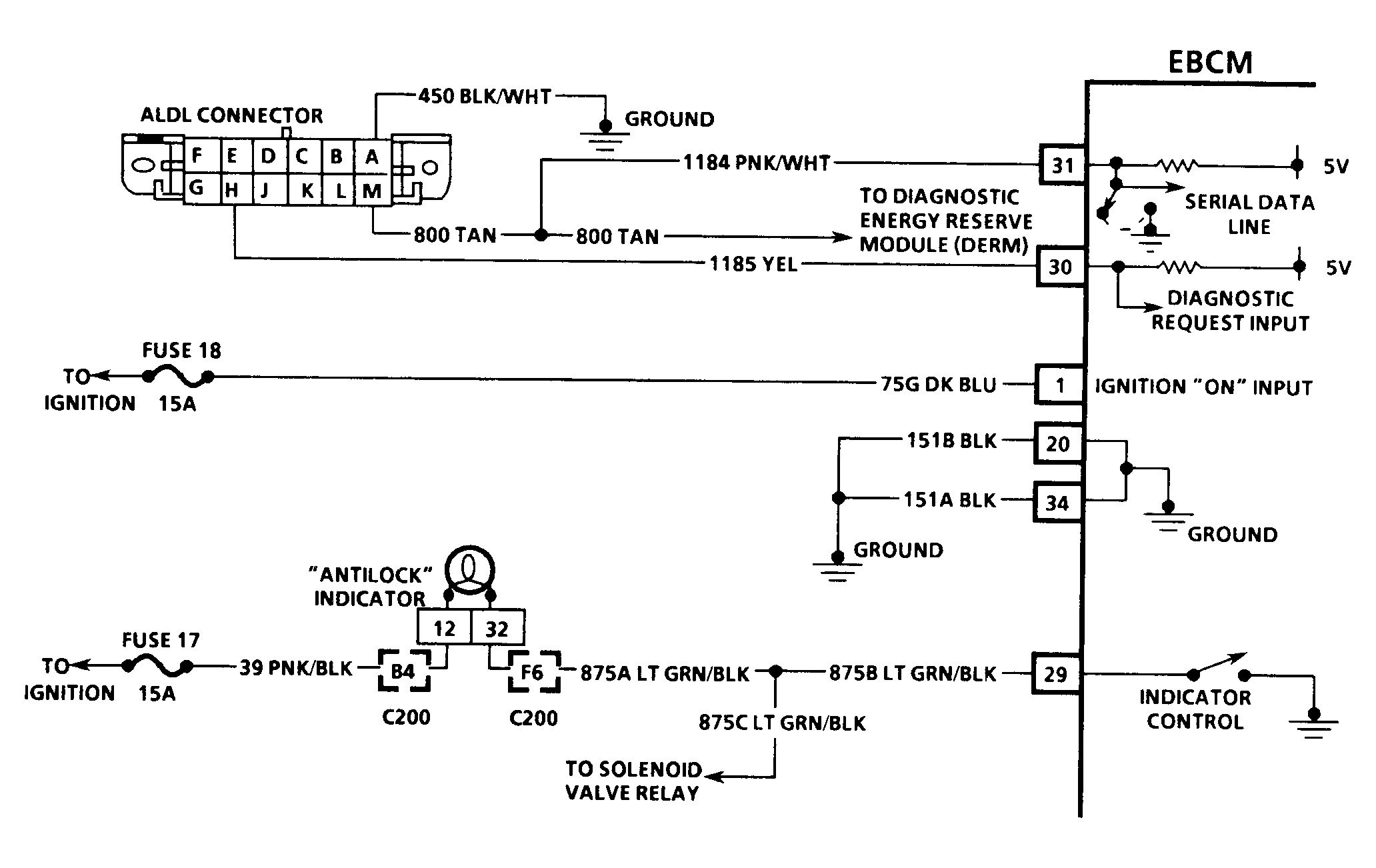

Fig 2: Code 71 Schematic - EBCM Fault

Courtesy of GENERAL MOTORS CORP.

Fig 3: Code 71 Flow Chart - EBCM Fault

Courtesy of GENERAL MOTORS CORP.
