Component Locations

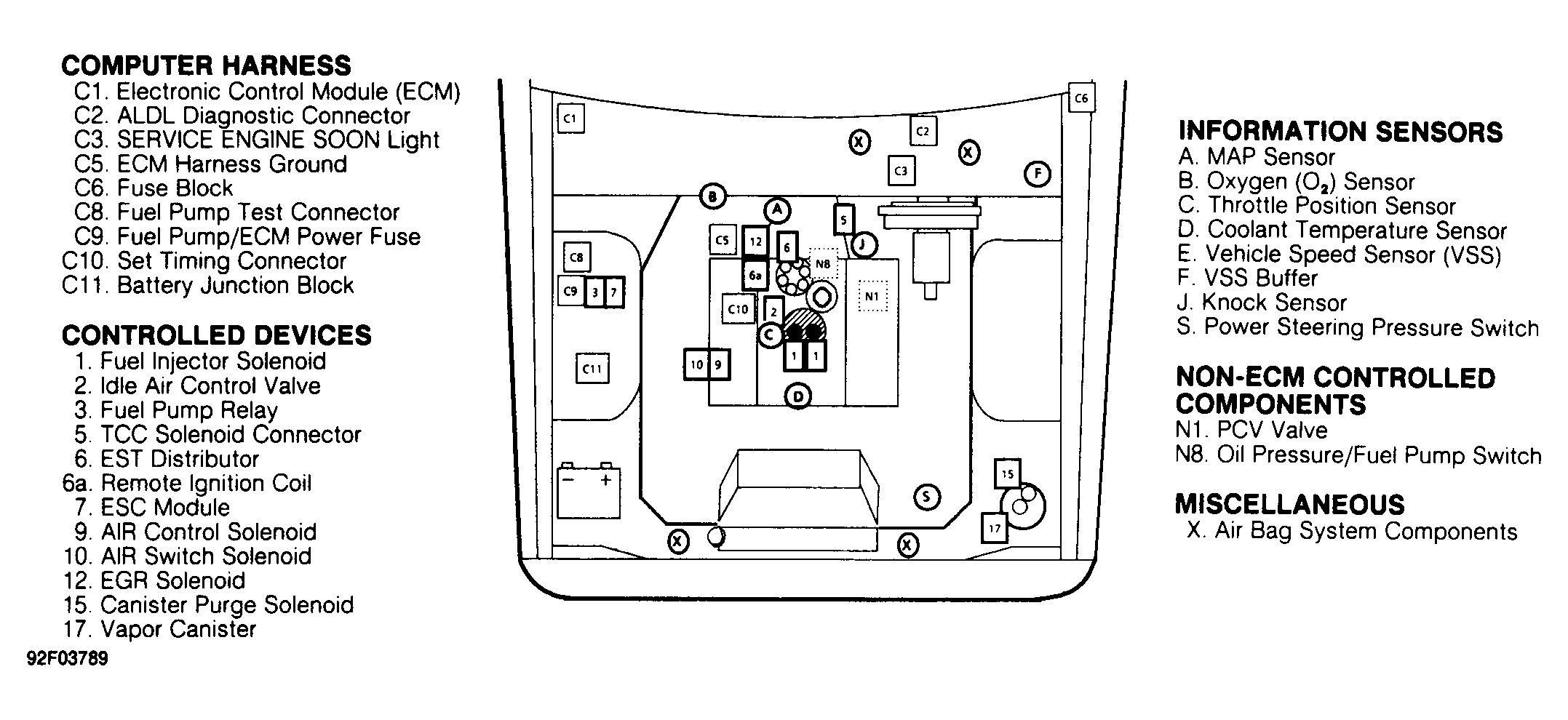

Fig 1: Component Locations, 4.3L VIN Z - Caprice
G92F03789Courtesy of GENERAL MOTORS CORP.

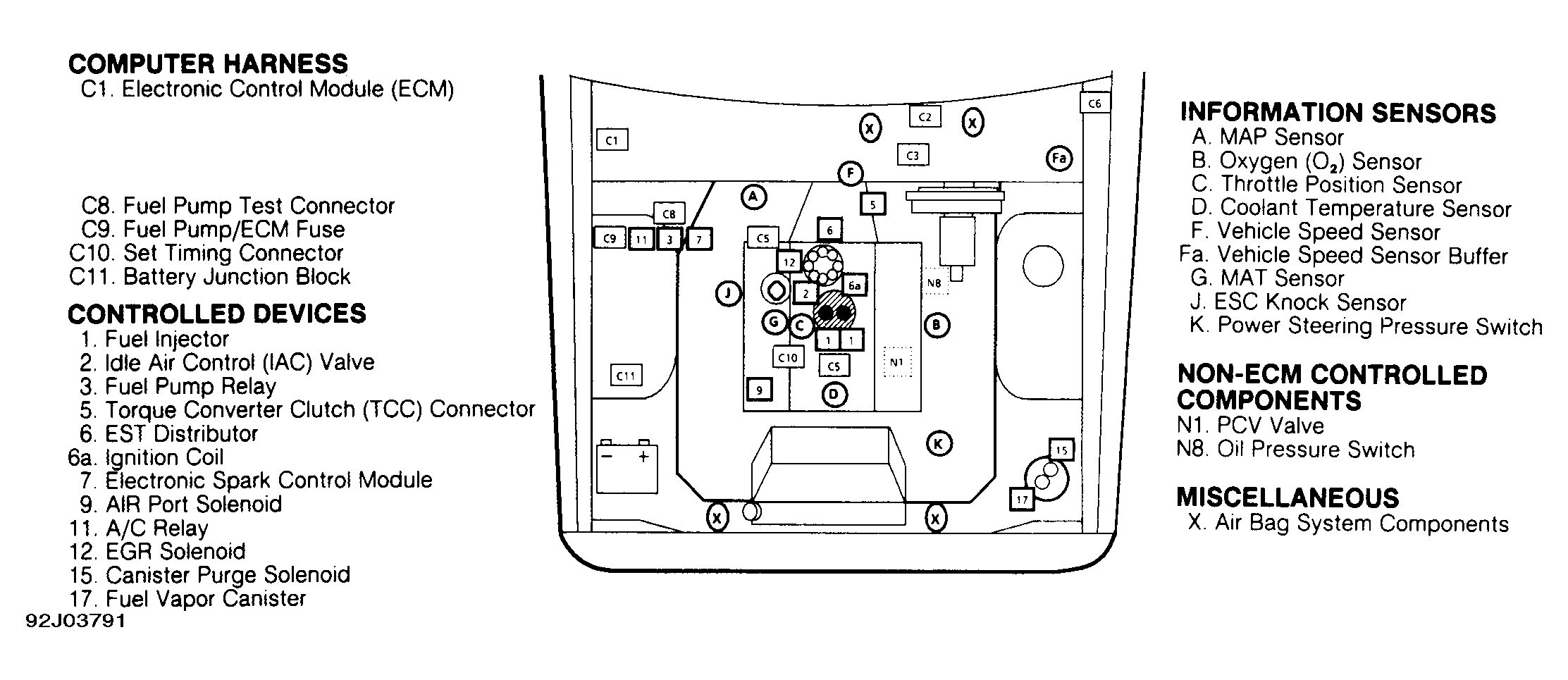

Fig 2: Component Locations, 5.0L VIN E & 5.7L VIN 7
G92J03791Courtesy of GENERAL MOTORS CORP.
