Ignition Switch
CAUTION:
New ignition switch is pinned in OFF-LOCK position. Plastic pin must be removed before operating switch.

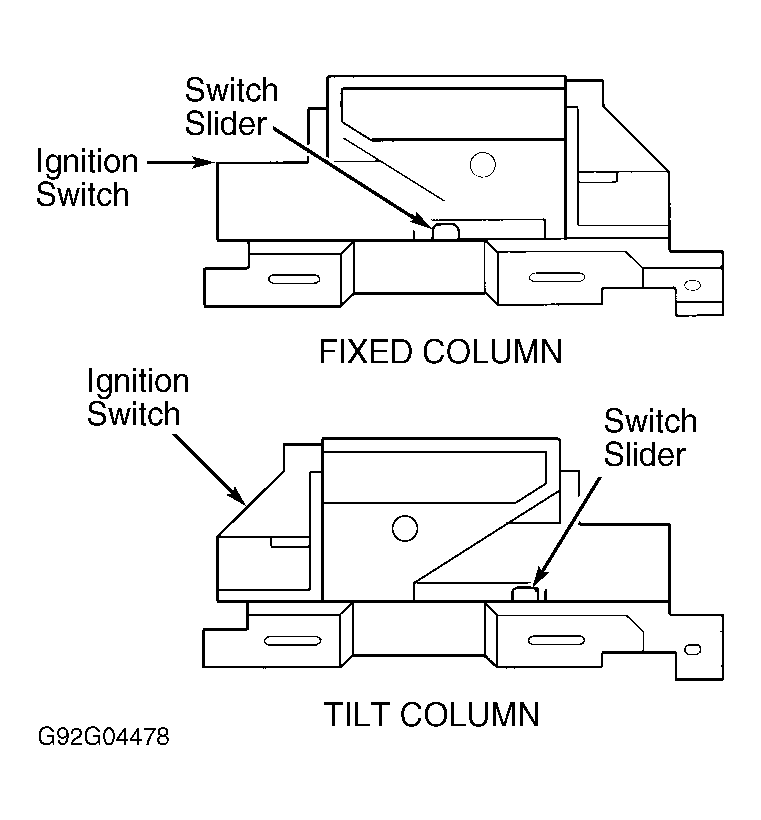

- Set key lock cylinder in OFF-LOCK position. On fixed column, set ignition switch slider (where actuator rod connects to switch) to OFF-LOCK position by moving slider as far left as possible, and then one detent to right. See Fig 1 .
- On tilt column, set ignition switch slider (where actuator rod connects to switch) to OFF-LOCK position by moving slider to right as far as possible, and then one detent to left. See Fig 1 .
- Install switch. Tighten switch screws to 35 INCH lbs. (4 N.m). Ensure ignition switch functions properly with lock cylinder in all positions.
