Low-Reverse Support Assembly: Reassembly

  1. Install roller clutch assembly in low-reverse support. See Fig 1 . Place support in case with hub facing downward. Install inner race. Rotate inner race while pushing downward. Use care not to damage roller and springs during installation.
  2. Ensure inner race is fully seated. Bottom tangs will be flush with carrier hub when fully seated. Inner race should rotate clockwise and lock counterclockwise with clutch hub downward. Insert support retainer spring into case between case lug and open notch in support.

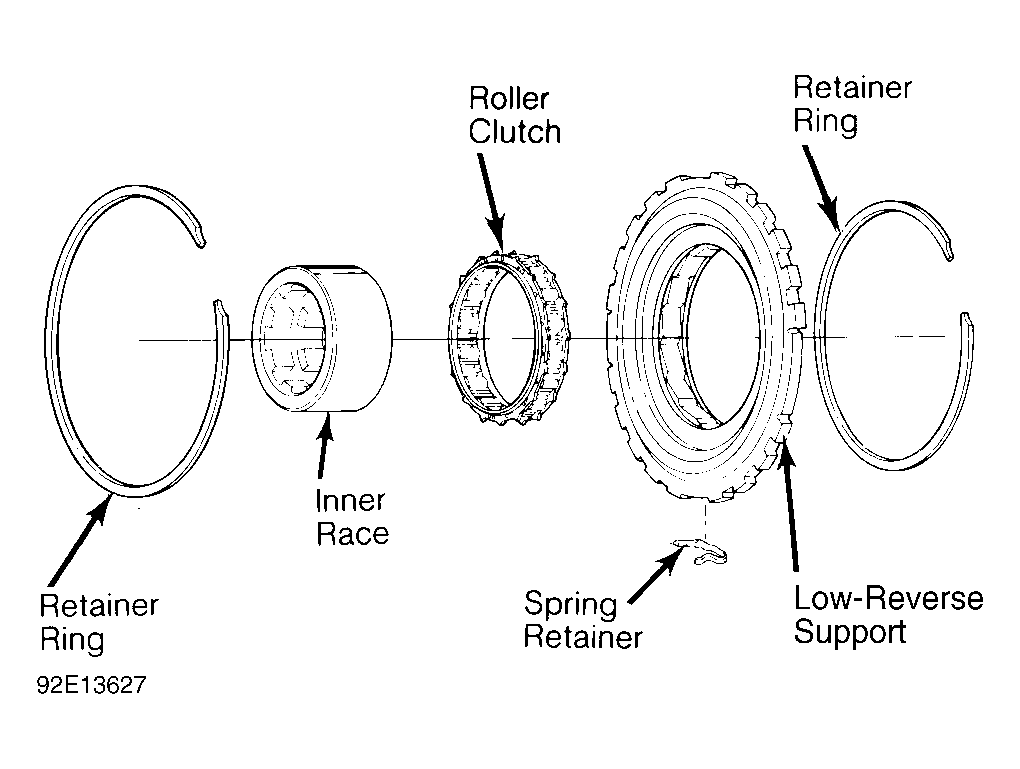

Fig 1: Exploded View of Low-Reverse Clutch Assembly
G92E13627Courtesy of GENERAL MOTORS CORP.
