Valve Body: Removal
- Disconnect throttle valve cable from throttle lever. Raise and support vehicle, and remove transmission oil pan. Remove oil filter and "O" ring. Ensure "O" ring is removed from transmission case.
- Remove electrical connectors from switches (if required), and tag. Remove auxiliary valve tube to access valve body. Remove valve body bolts. Note length and location of bolts for installation.
- Note direction of manual valve link. Remove manual valve link from manual valve at valve body. See Fig 1
. Note direction of throttle valve link. See Fig 2

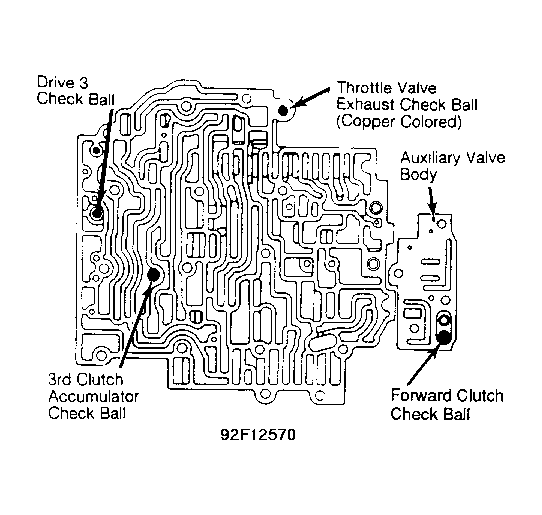

. Remove throttle valve bracket and throttle valve link. Remove valve body. Note location of check balls. DO NOT
lose balls. See Figure
.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
