Oil Pressure Specification Charts

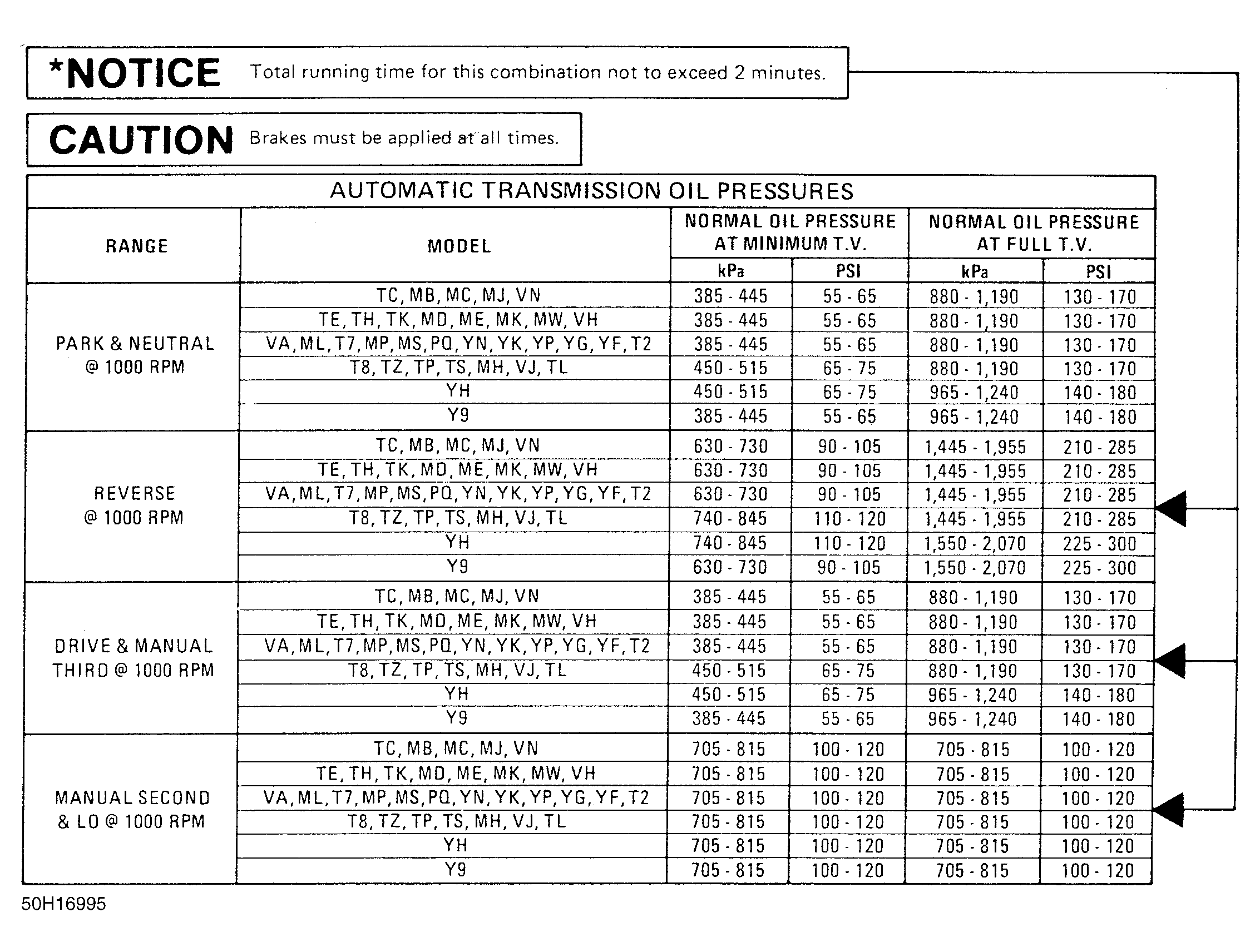

Fig 1: Oil Pressure Specifications (1983 Models)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Oil Pressure Specifications (1984 Models)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Oil Pressure Specifications (1985 Models)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Oil Pressure Specifications (1986 Car Models)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Oil Pressure Specifications (1986 Truck Models)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Oil Pressure Specifications (1987 Models Except Astro & Safari)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Oil Pressure Specifications (1987 Astro & Safari)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Oil Pressure Specifications (1988 Car Models)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Oil Pressure Specifications (1988 Truck Models)

Courtesy of GENERAL MOTORS CORP.

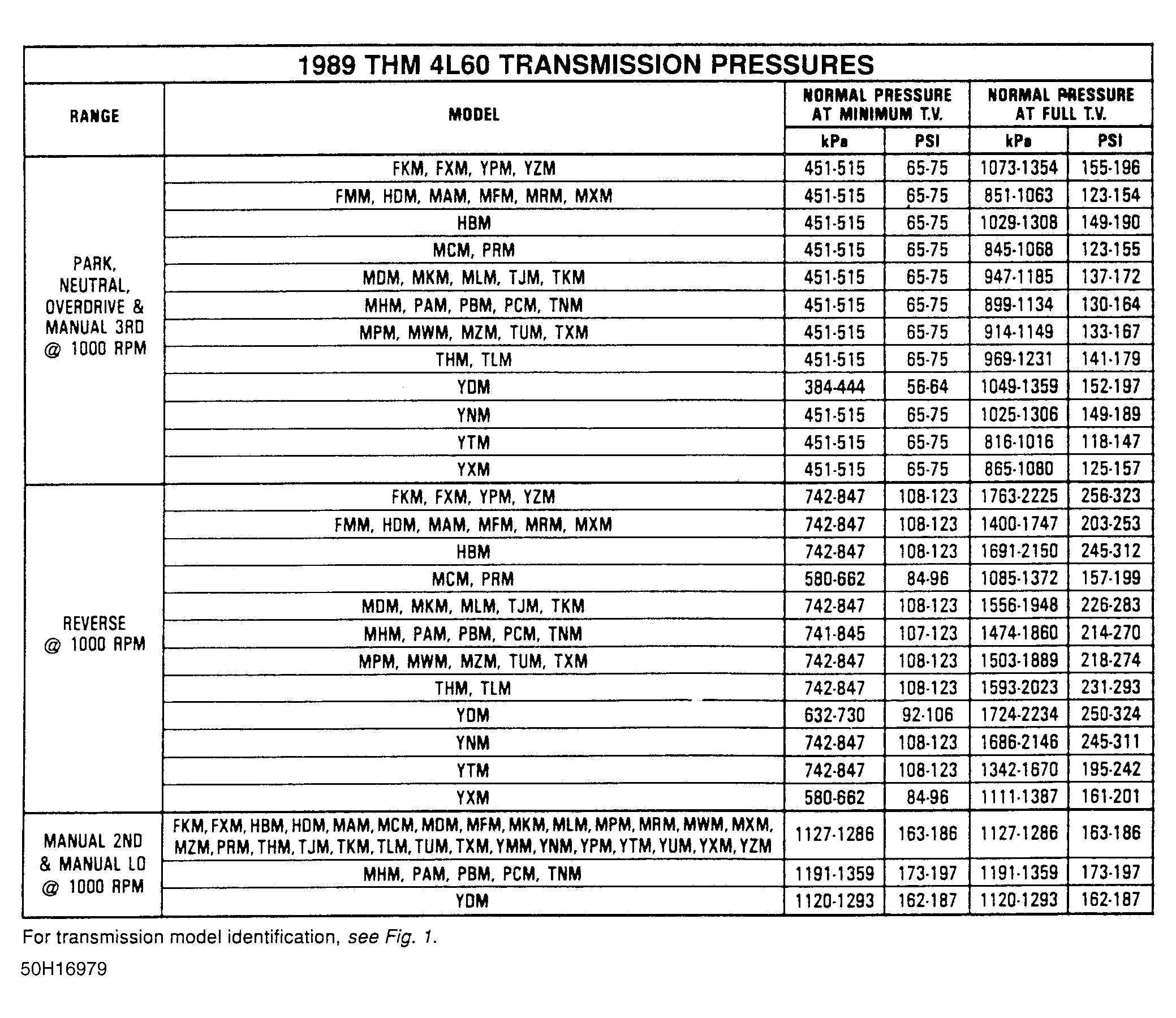

Fig 10: Oil Pressure Specifications (1989 Models)

Courtesy of GENERAL MOTORS CORP.

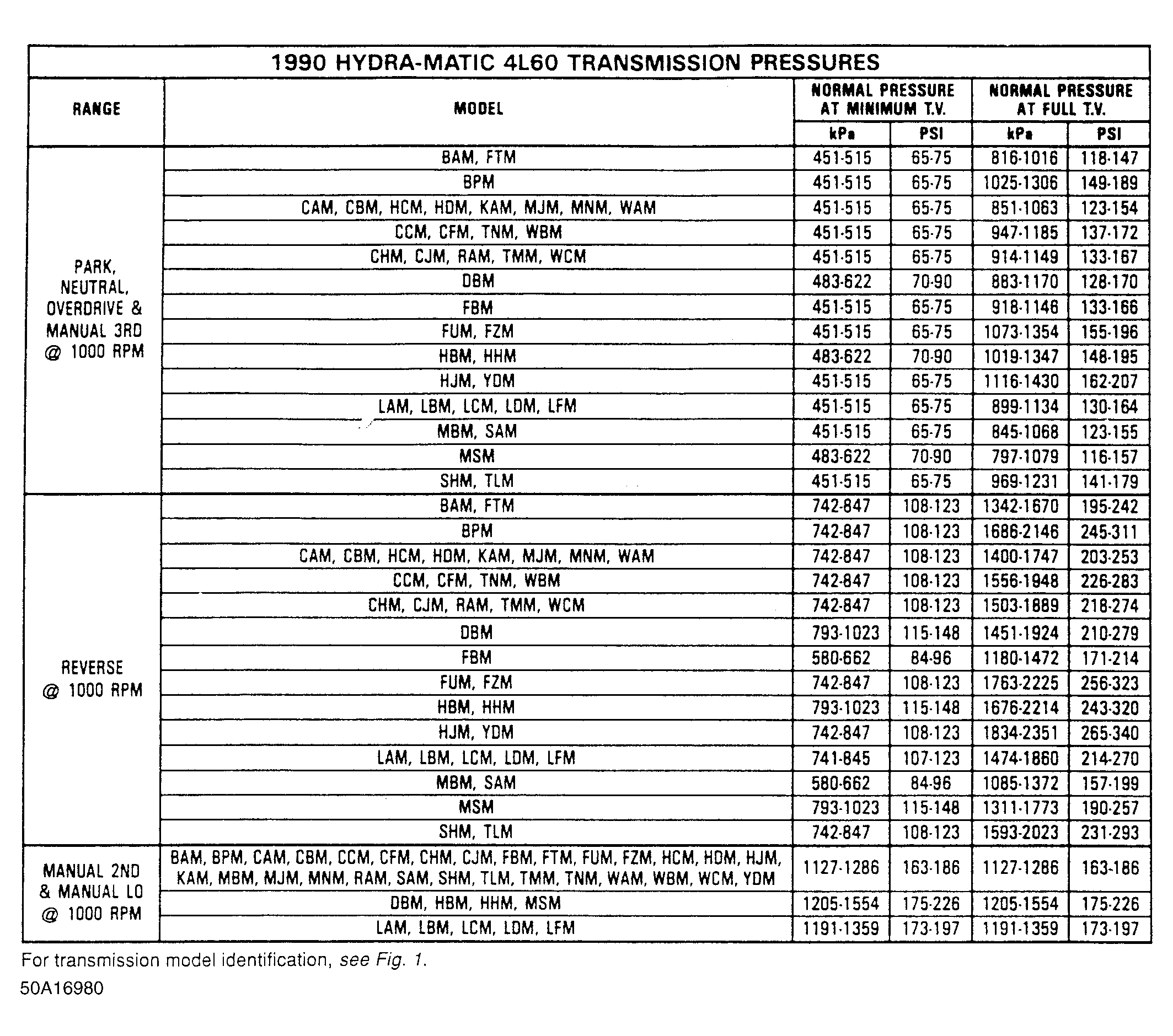

Fig 11: Oil Pressure Specifications (1990 Models)

Courtesy of GENERAL MOTORS CORP.

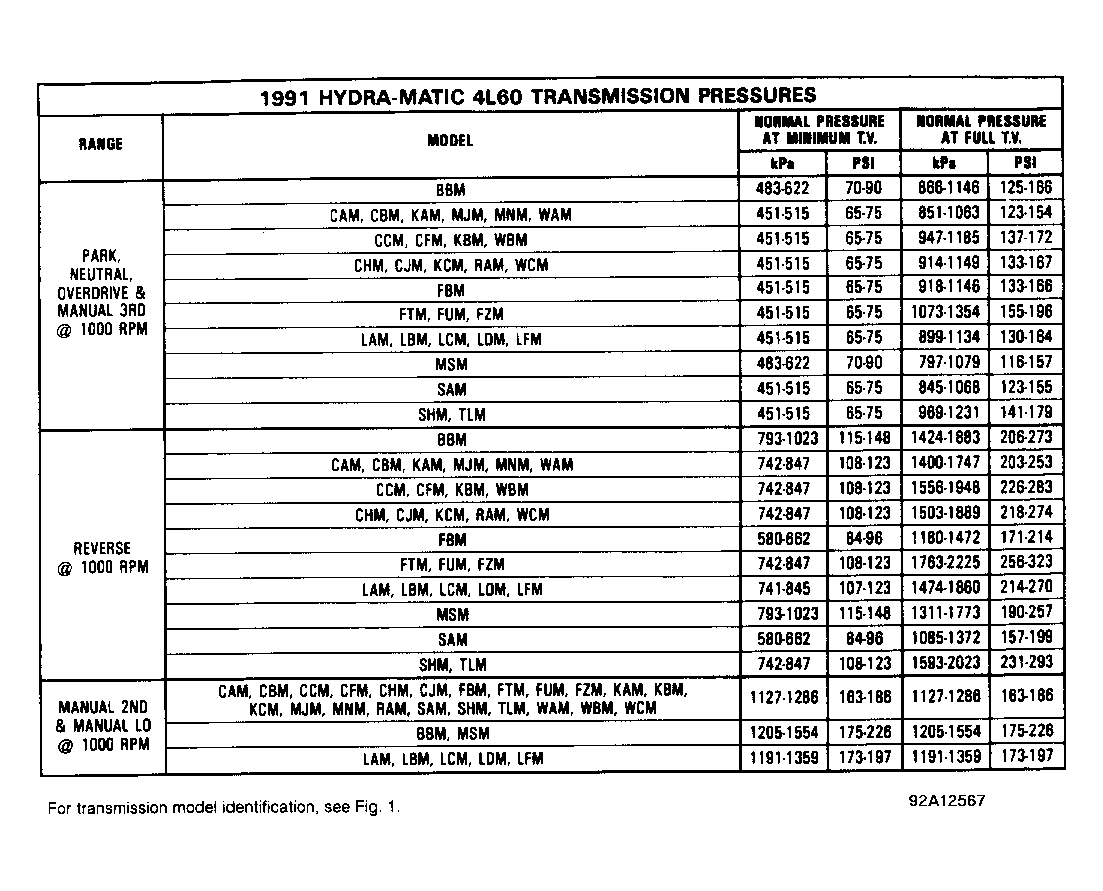

Fig 12: Oil Pressure Specifications (1991 Models)

Courtesy of GENERAL MOTORS CORP.

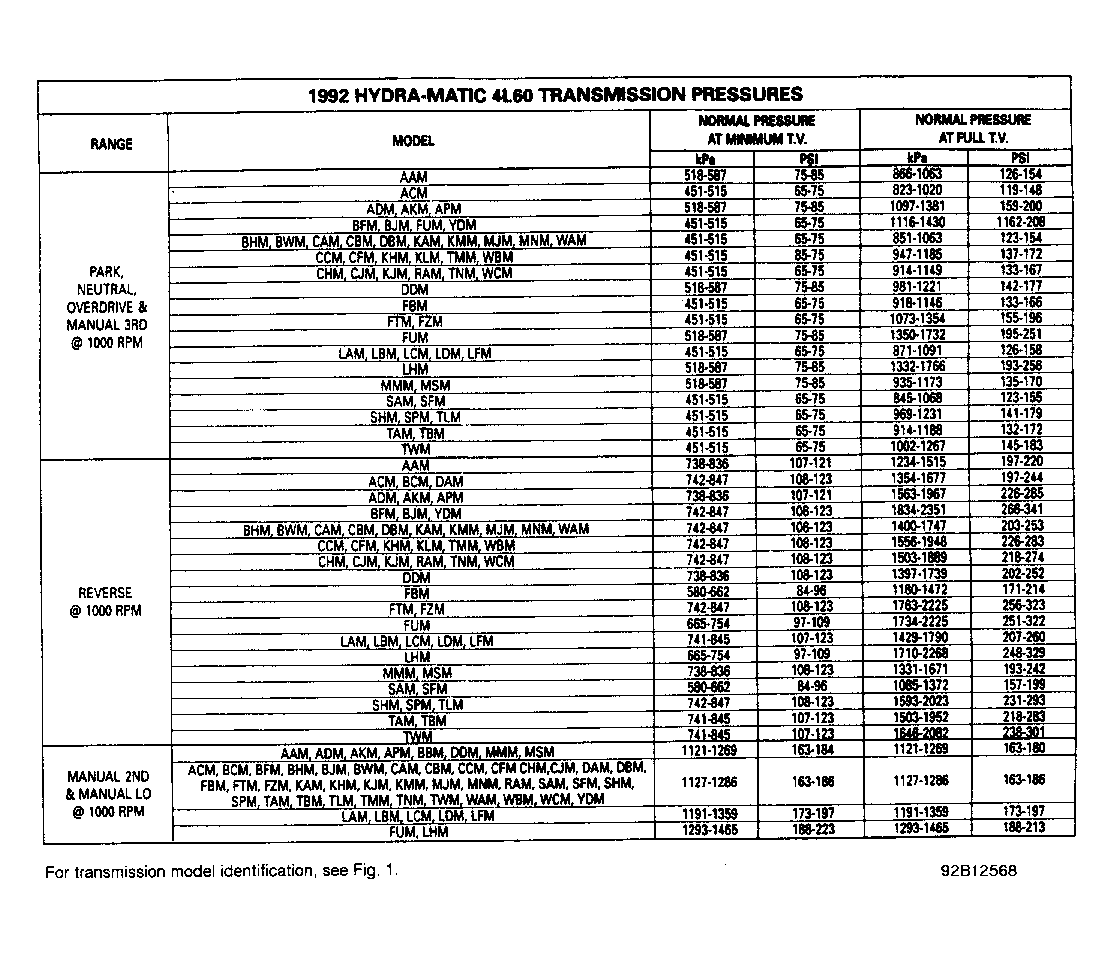

Fig 13: Oil Pressure Specifications (1992 Models)

Courtesy of GENERAL MOTORS CORP.
