Shift Speed Charts

NOTE: Shift speed charts are not available for 1983 through 1986 models.

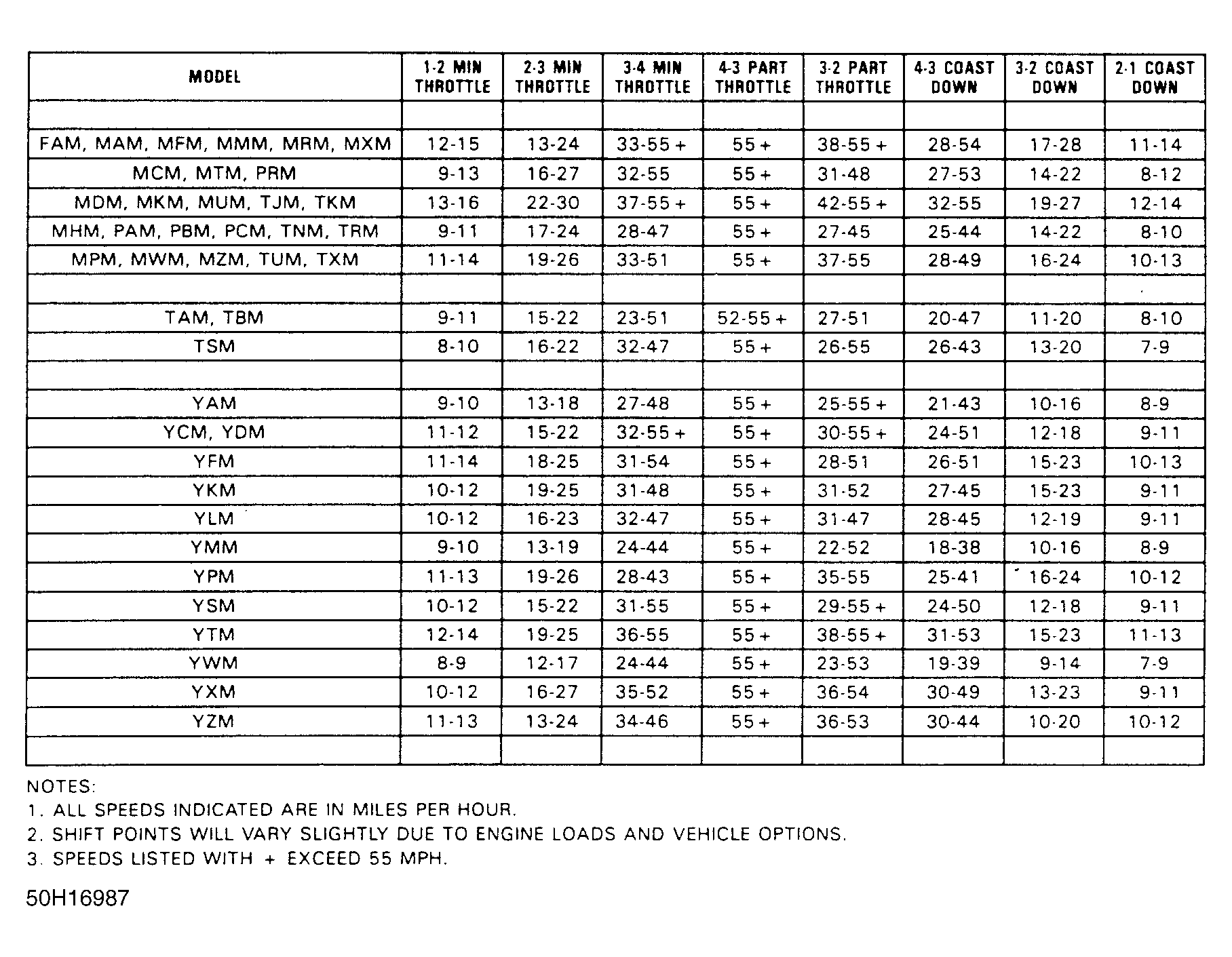

Fig 1: Shift Speed Chart (1987 Models Except Corvette)

Courtesy of GENERAL MOTORS CORP.

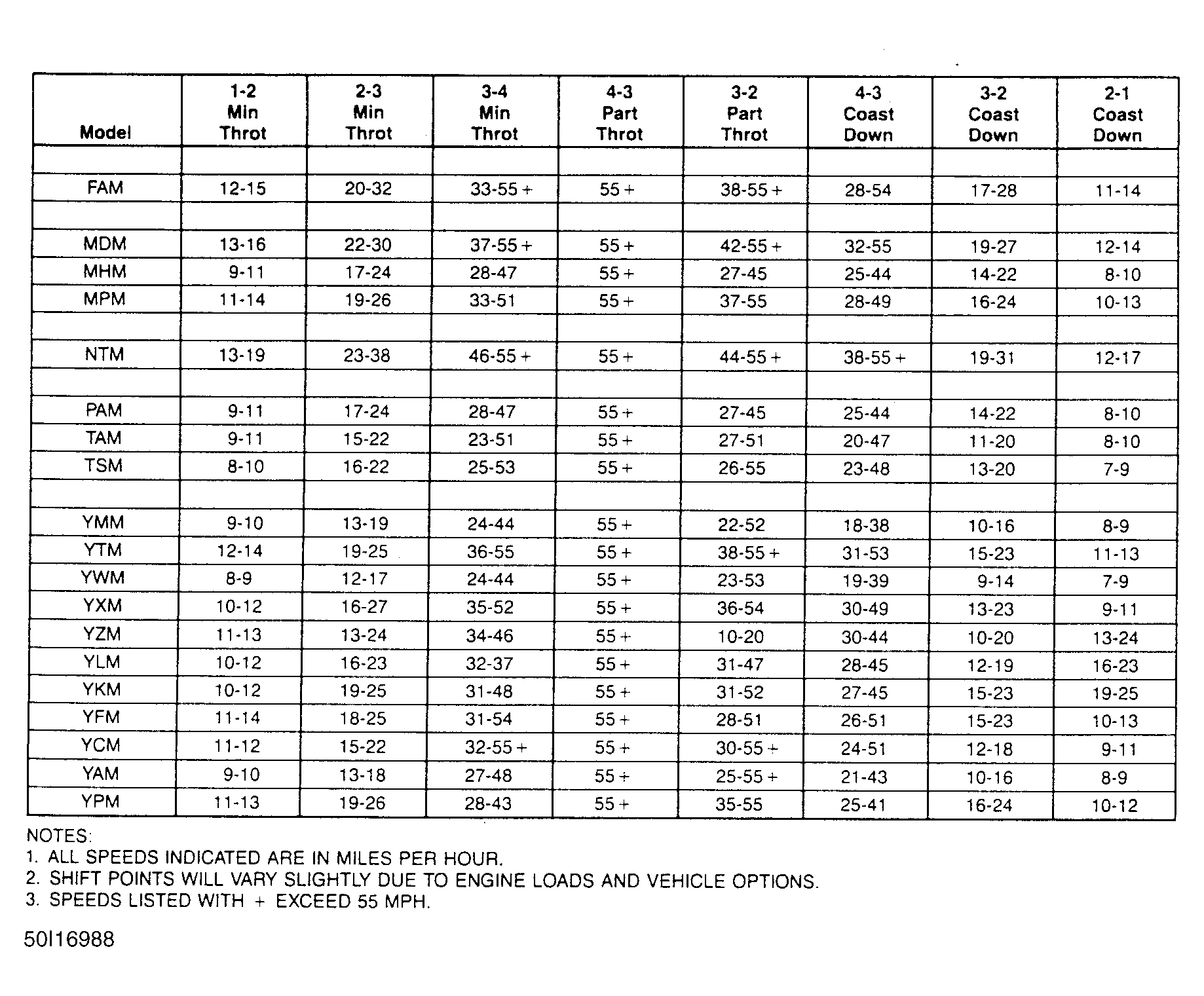

Fig 2: Shift Speed Chart (1987 Corvette)

Courtesy of GENERAL MOTORS CORP.

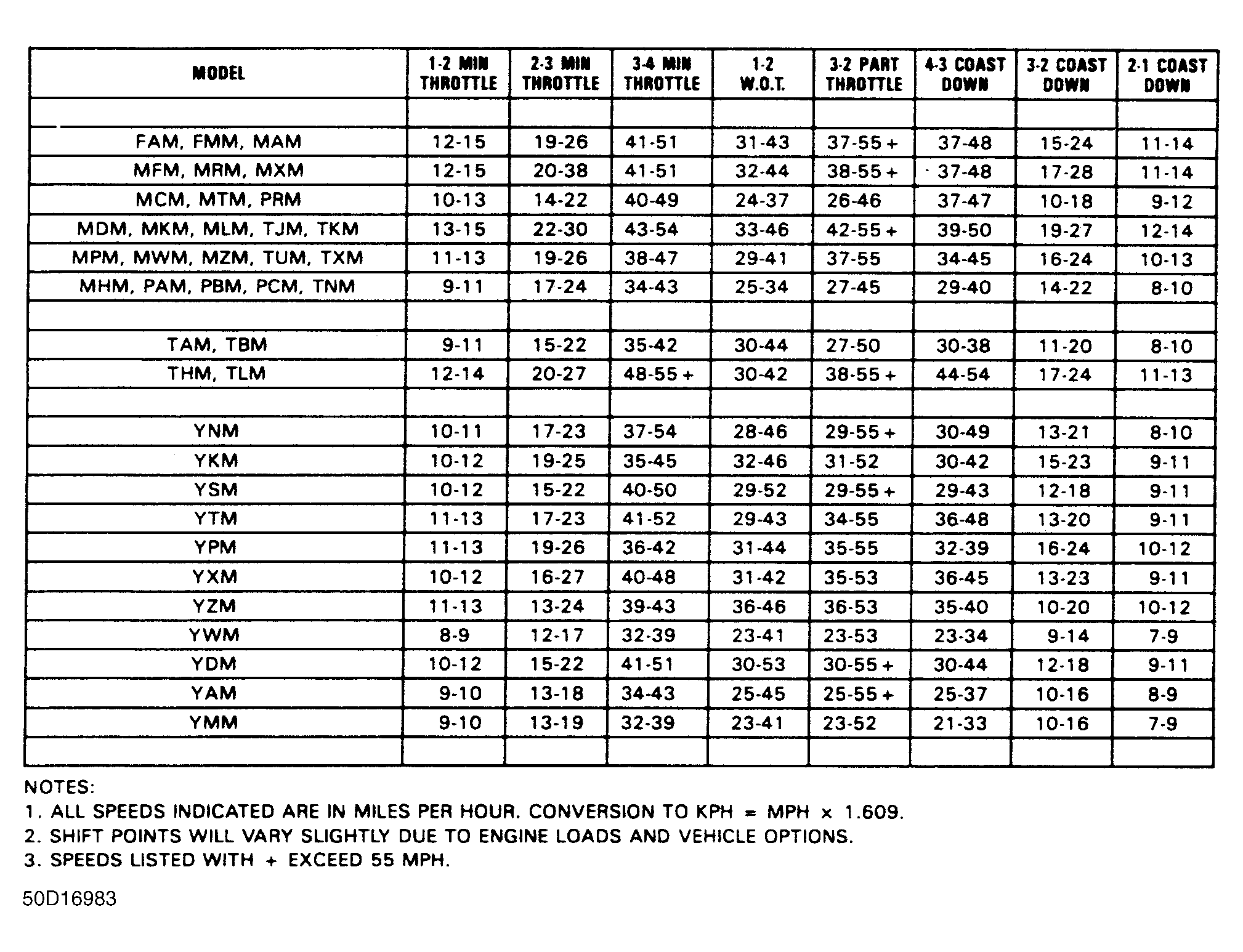

Fig 3: Shift Speed Chart (1988 Car Models)

Courtesy of GENERAL MOTORS CORP.

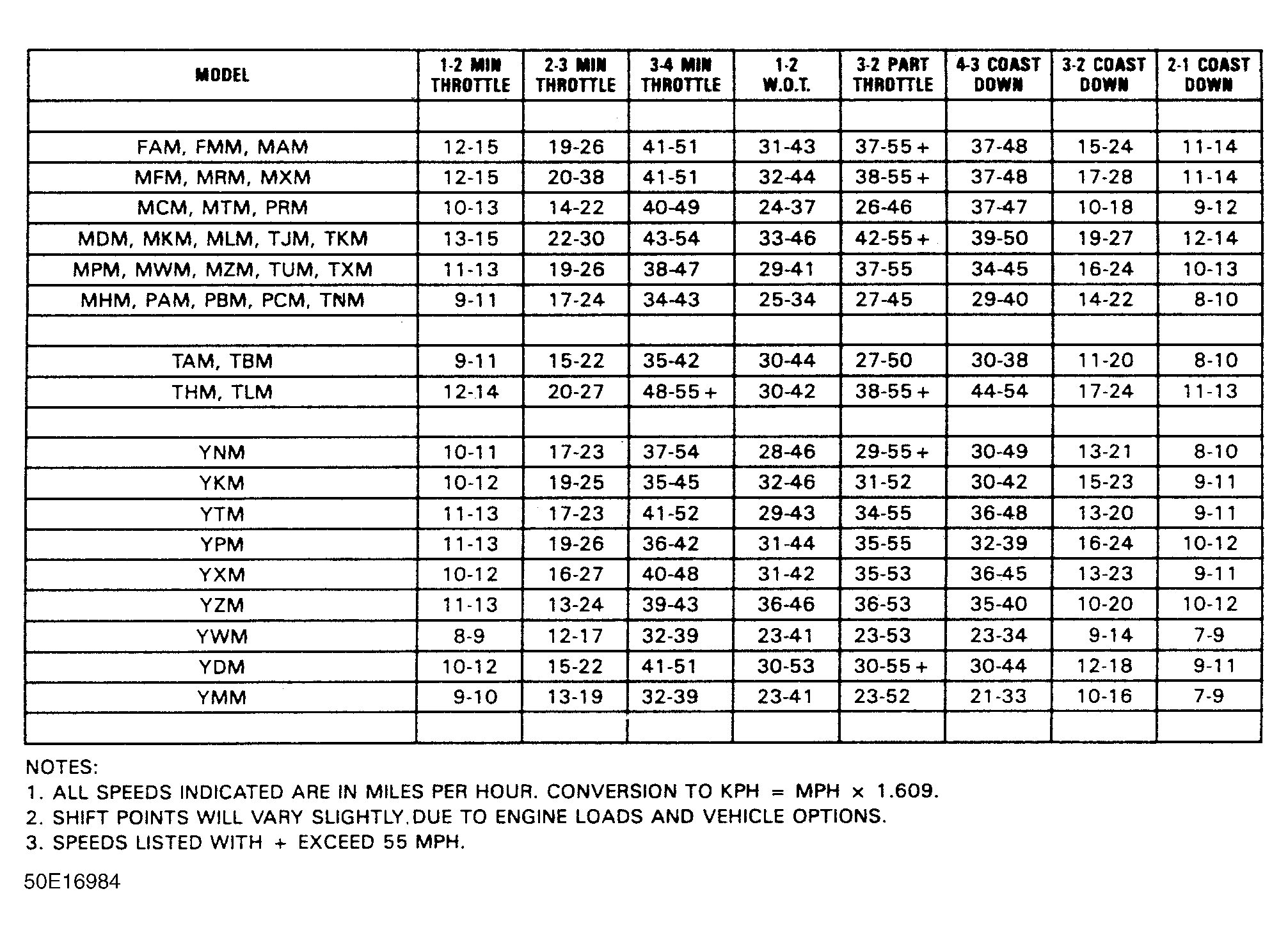

Fig 4: Shift Speed Chart (1988 Truck Models)

Courtesy of GENERAL MOTORS CORP.

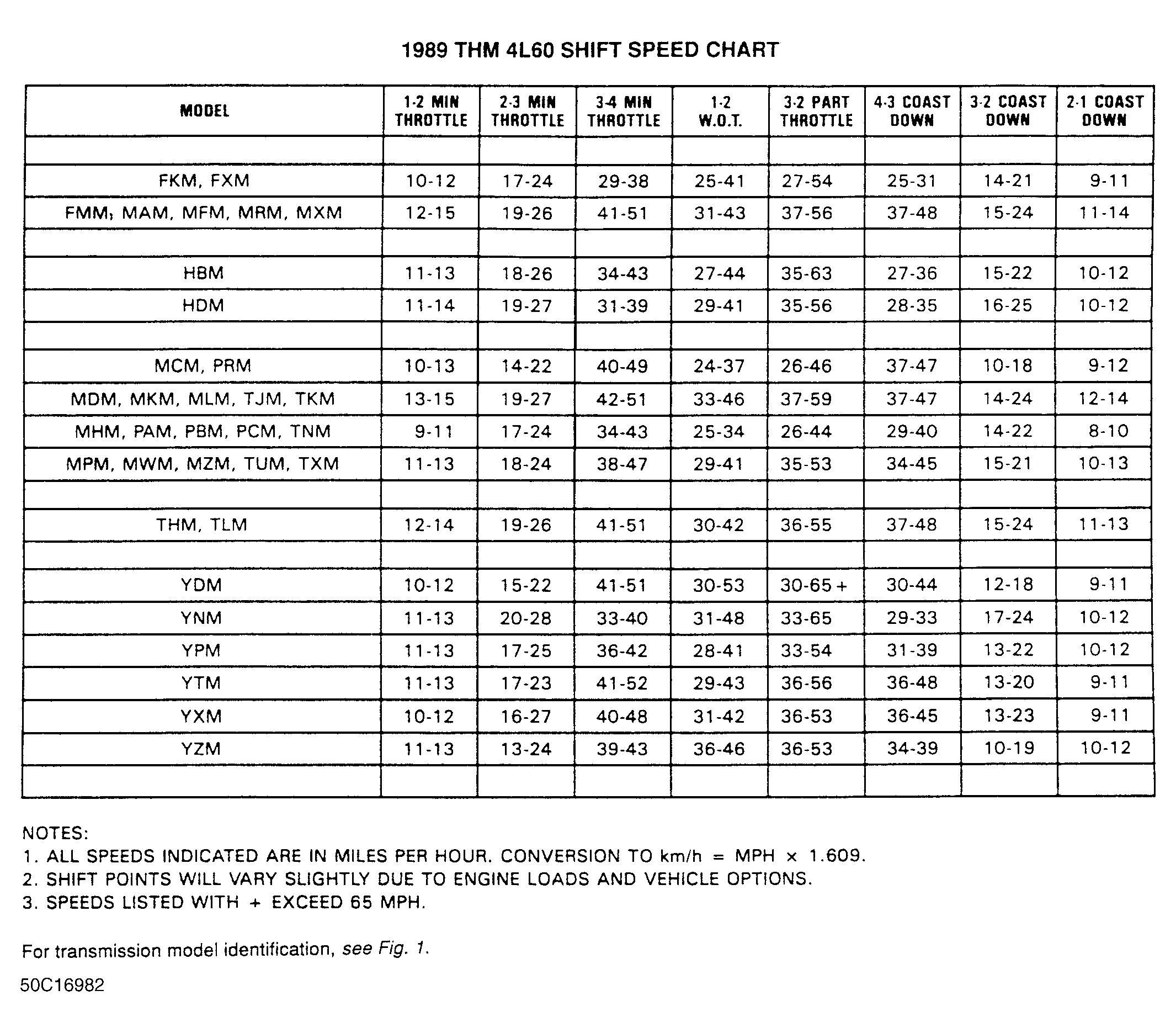

Fig 5: Shift Speed Chart (1989 Models)

Courtesy of GENERAL MOTORS CORP.

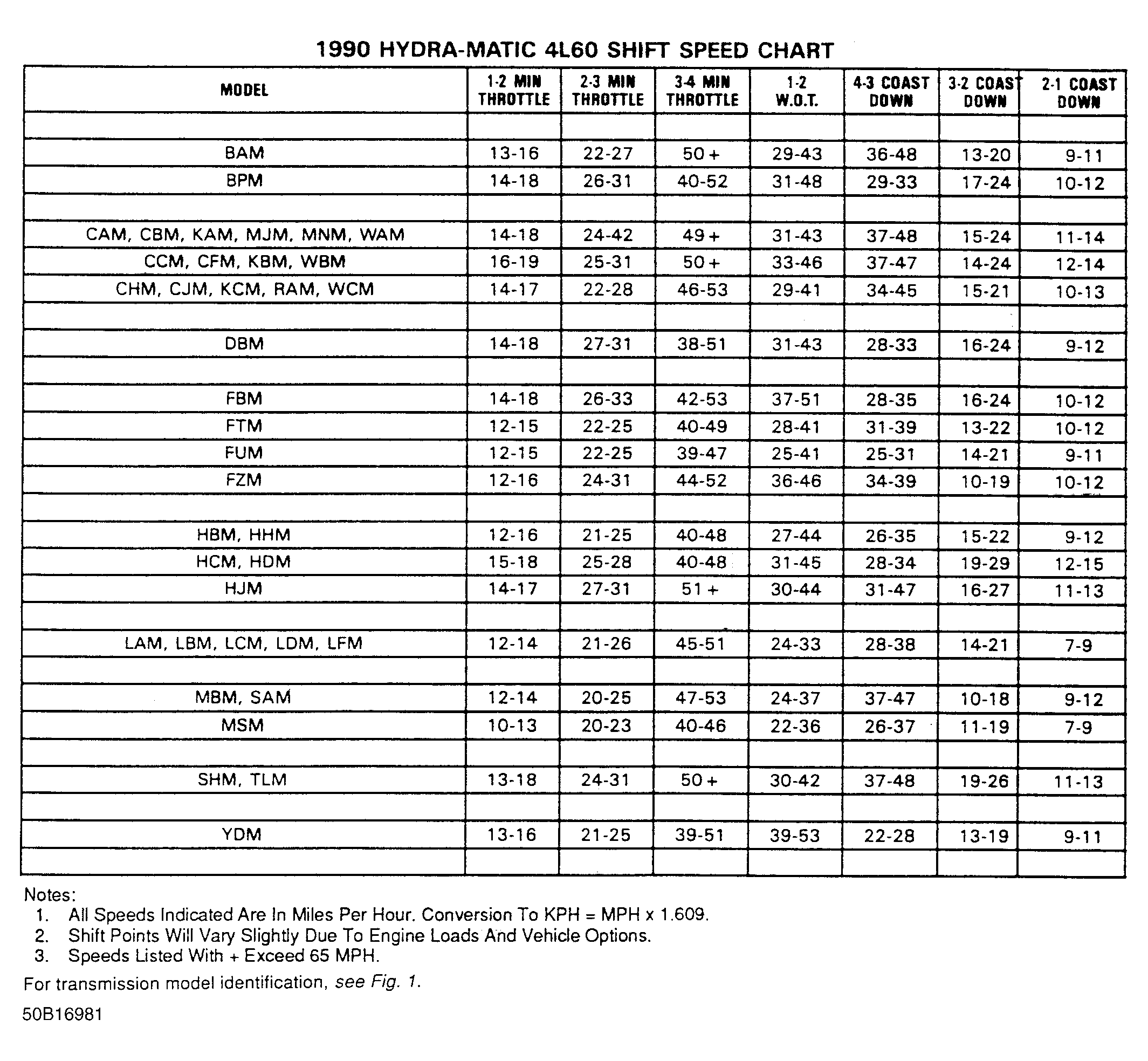

Fig 6: Shift Speed Chart (1990 Models)

Courtesy of GENERAL MOTORS CORP.

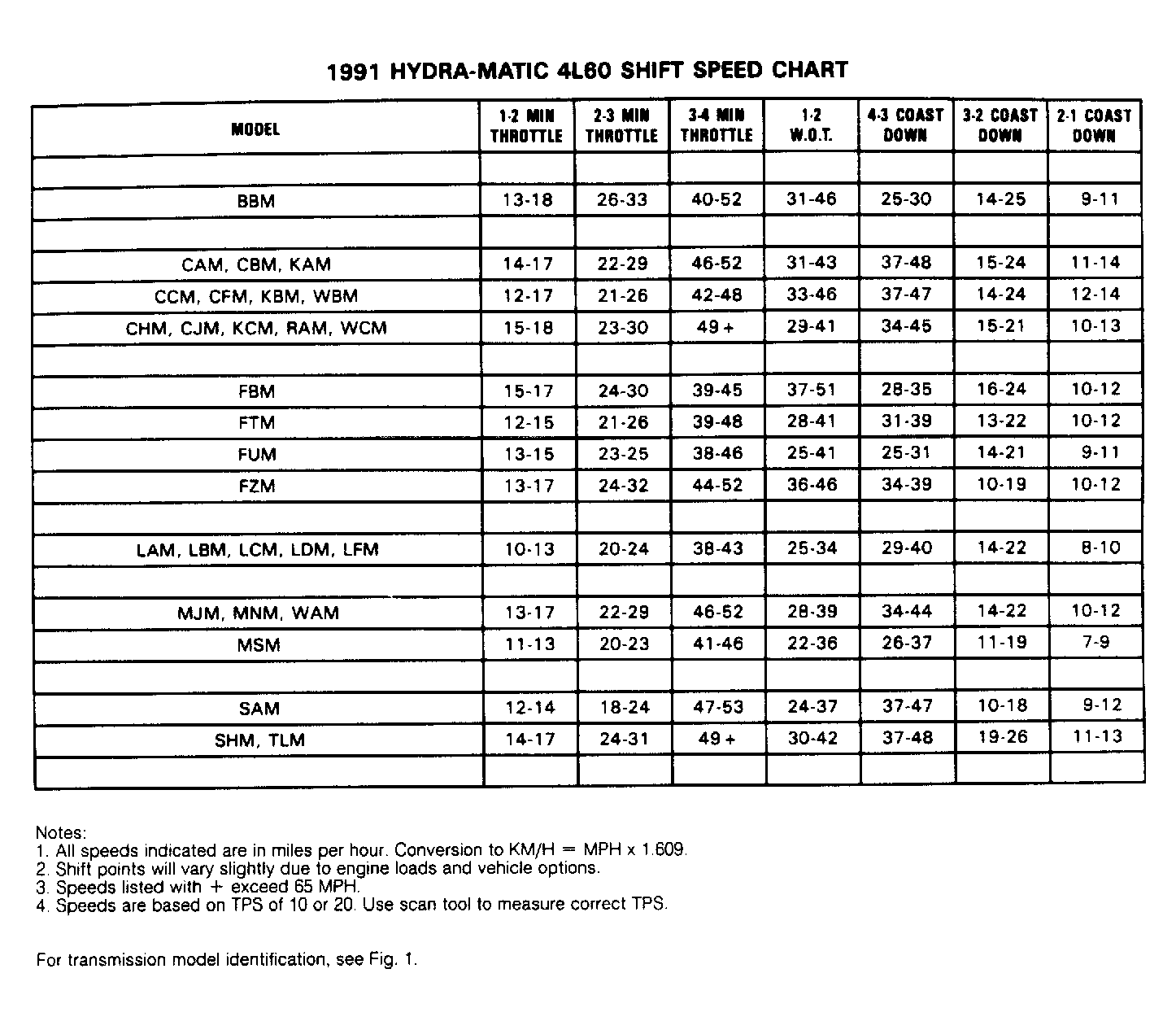

Fig 7: Shift Speed Chart (1991 Models)

Courtesy of GENERAL MOTORS CORP.

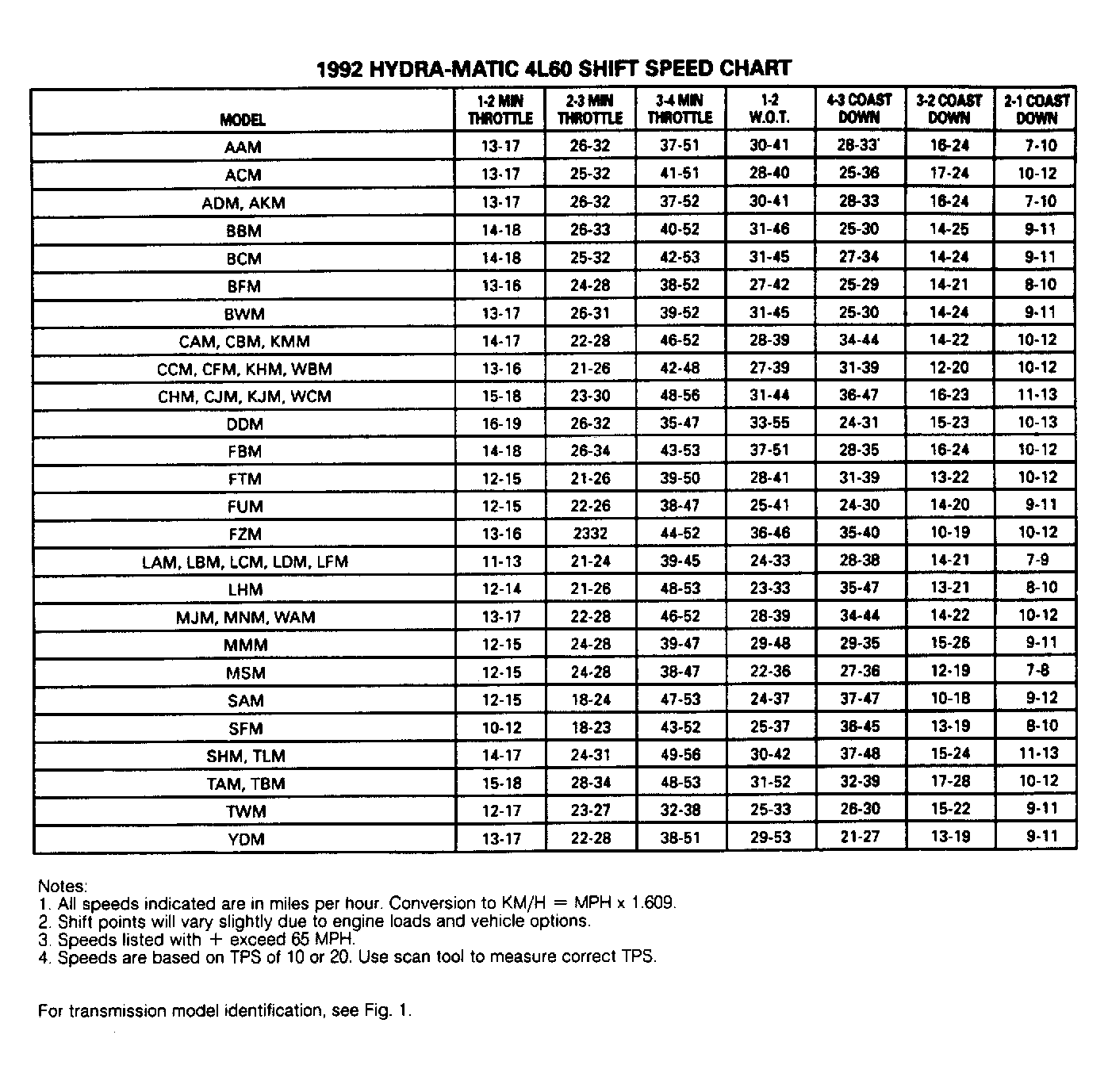

Fig 8: Shift Speed Chart (1992 Models)

Courtesy of GENERAL MOTORS CORP.
