Test Description

  1. Isolates a power door lock system fault or a keyless entry system fault.
  2. Checks for battery voltage at keyless entry receiver.
  3. Checks for ground at keyless entry receiver.

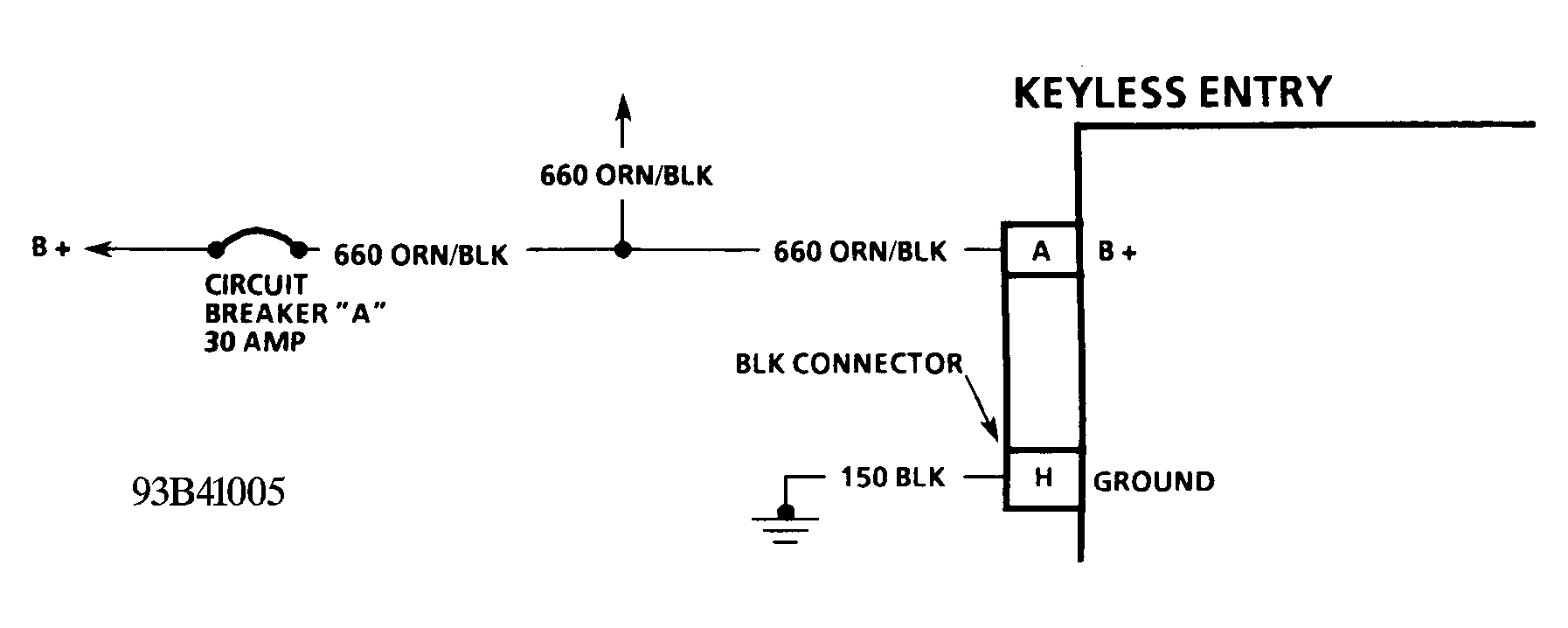

Fig 1: Test 1; Schematic
G93B41005Courtesy of GENERAL MOTORS CORP.

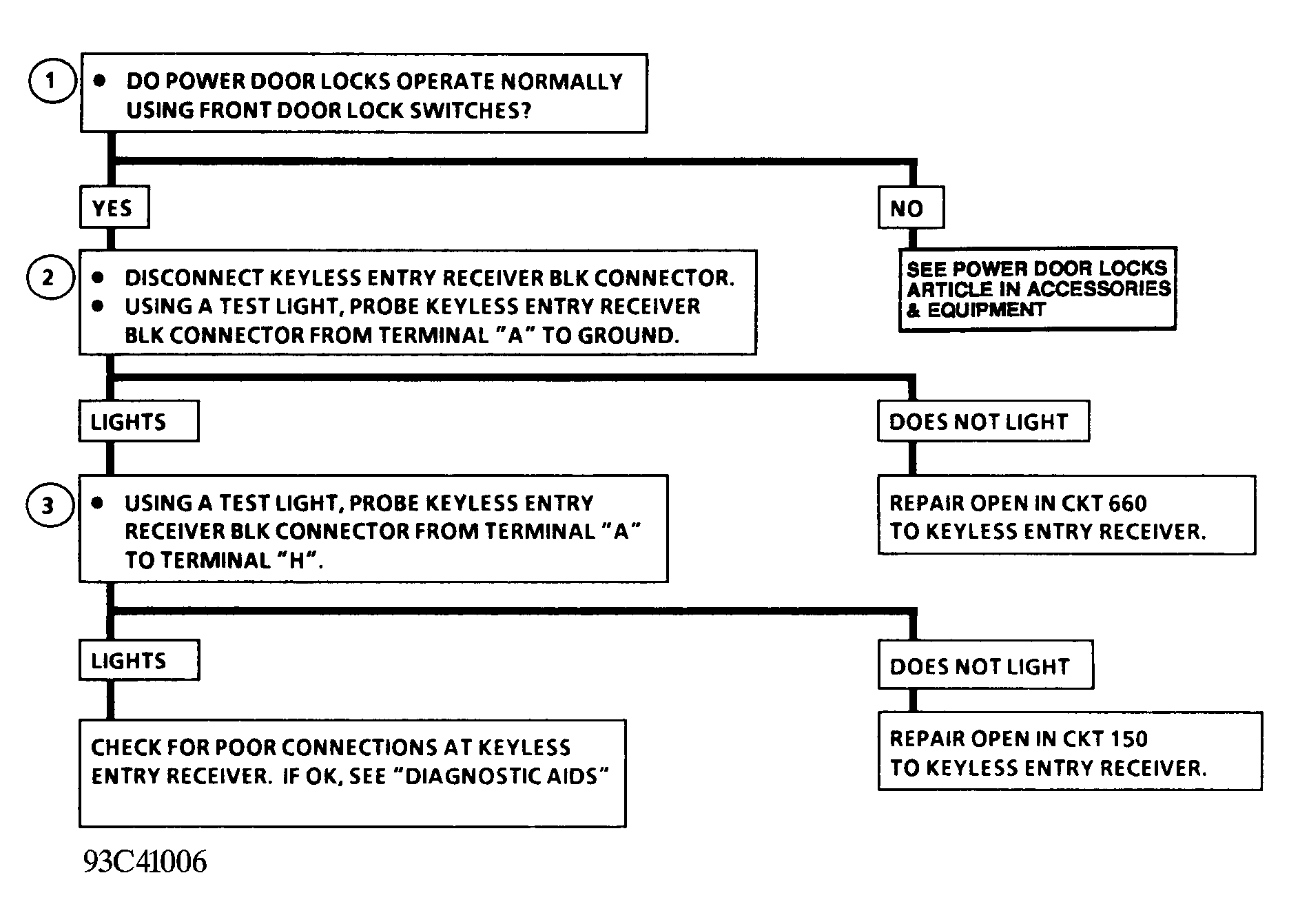

Fig 2: Test 1; Flow Chart
G93C41006Courtesy of GENERAL MOTORS CORP.
