Test Description

Checks for an ignition input signal to keyless entry receiver.
Checks for a false signal from transmission position switch or short to voltage on circuit No. 275.

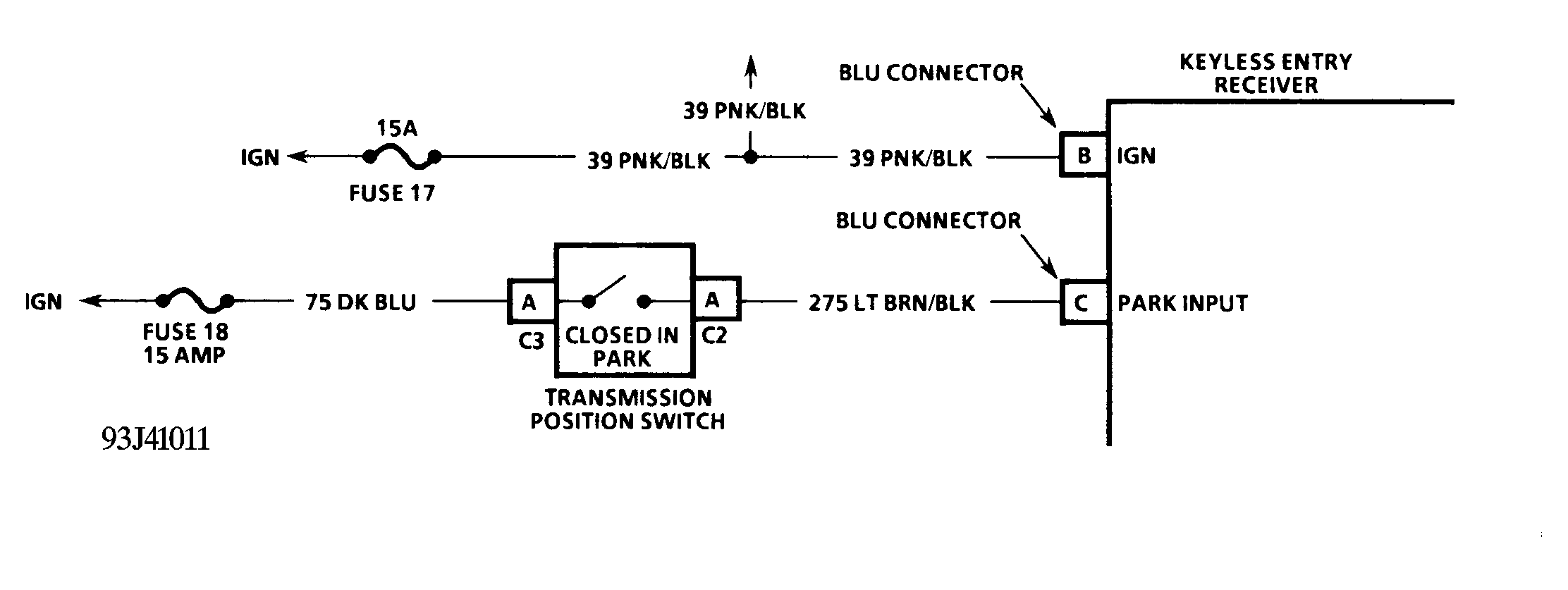

Fig 1: Test 4 (Wagon); Schematic

Courtesy of GENERAL MOTORS CORP.

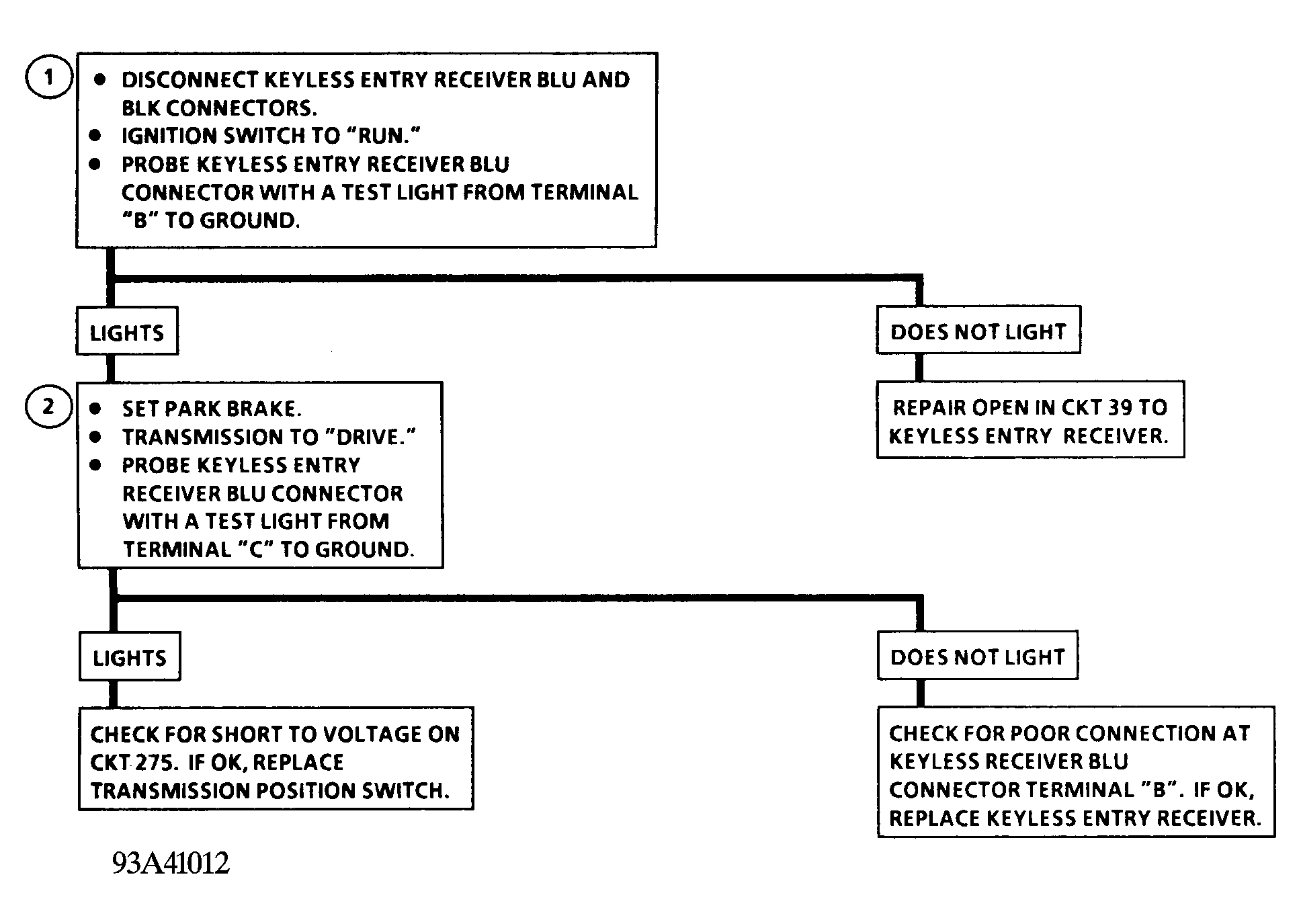

Fig 2: Test 4 (Wagon); Flow Chart

Courtesy of GENERAL MOTORS CORP.
