Test Description

Checks for a false ignition ON signal to keyless entry receiver.
Checks courtesy light circuit (circuit No.156) to keyless entry receiver.

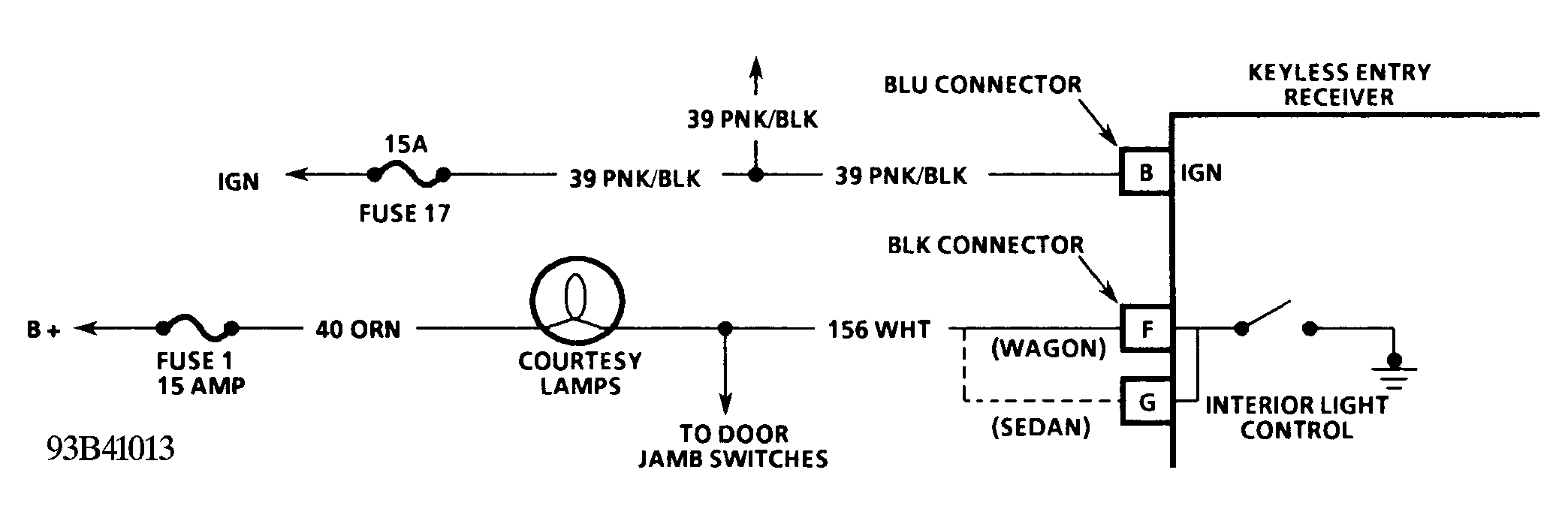

Fig 1: Test 5; Schematic

G93B41013

Courtesy of GENERAL MOTORS CORP.

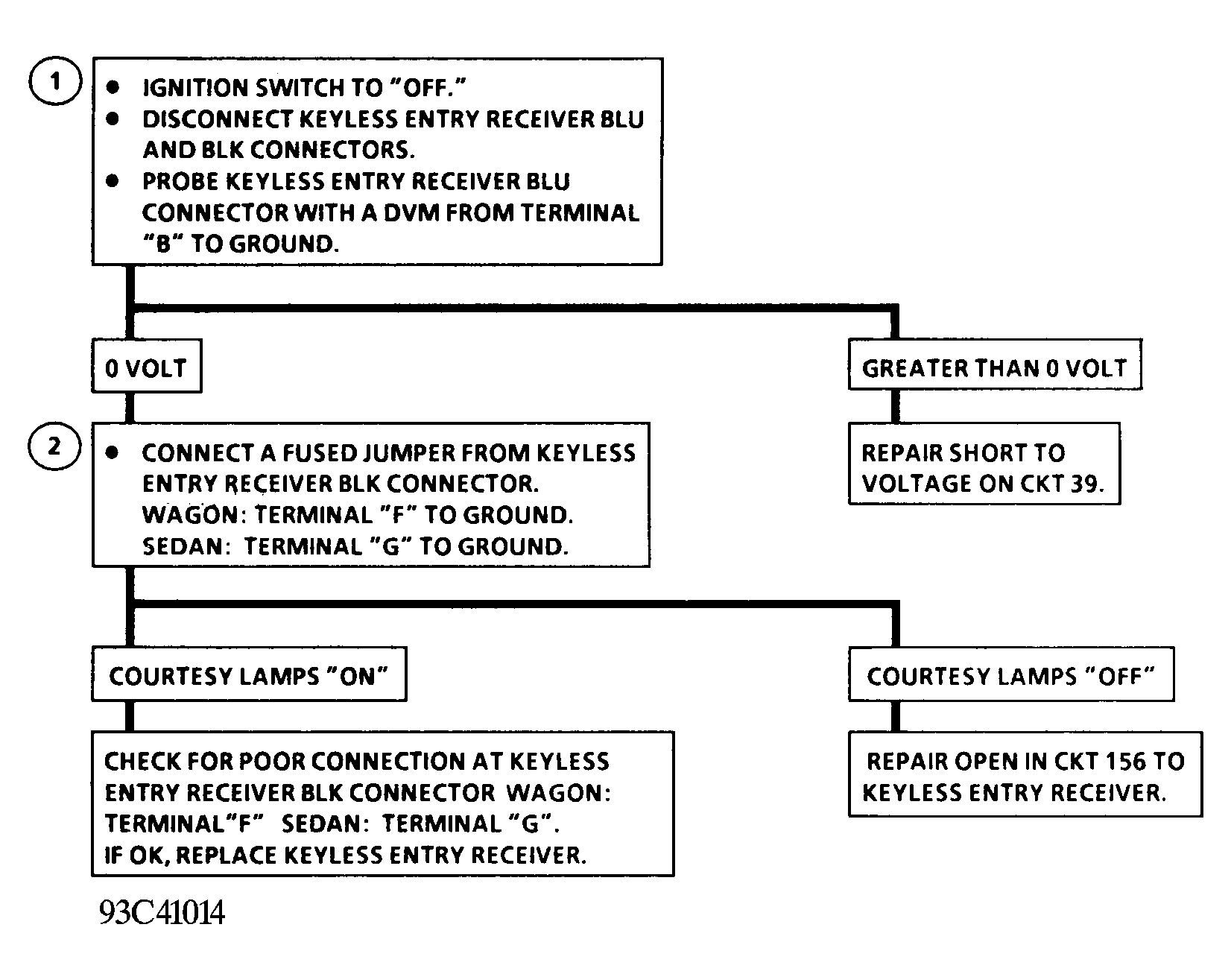

Fig 2: Test 5; Flow Chart

G93C41014

Courtesy of GENERAL MOTORS CORP.
