Wiring Diagrams

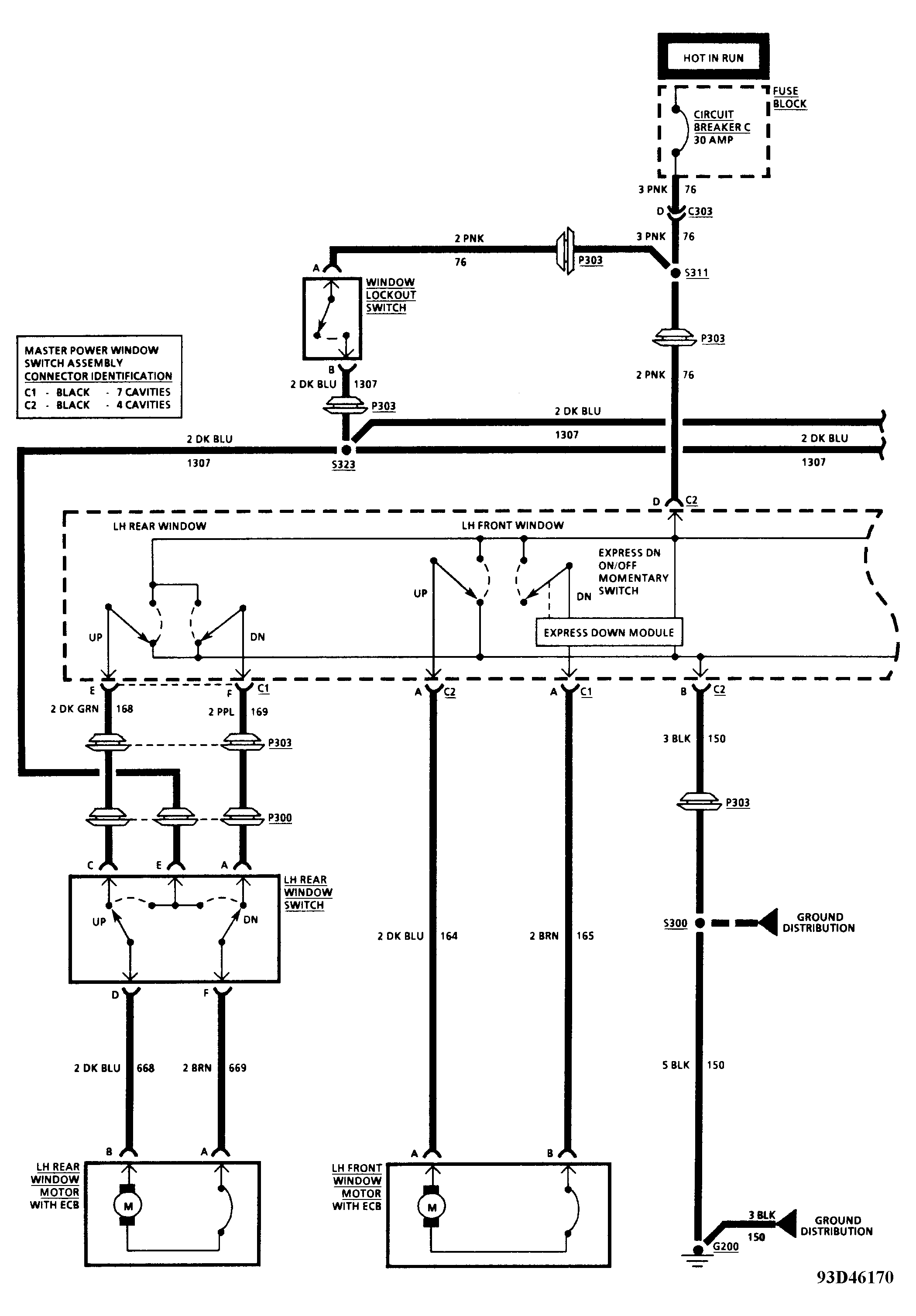

Fig 1: Power Windows Wiring Diagram (Caprice & Roadmaster - 1 Of 2)
G93D46170Courtesy of GENERAL MOTORS CORP.

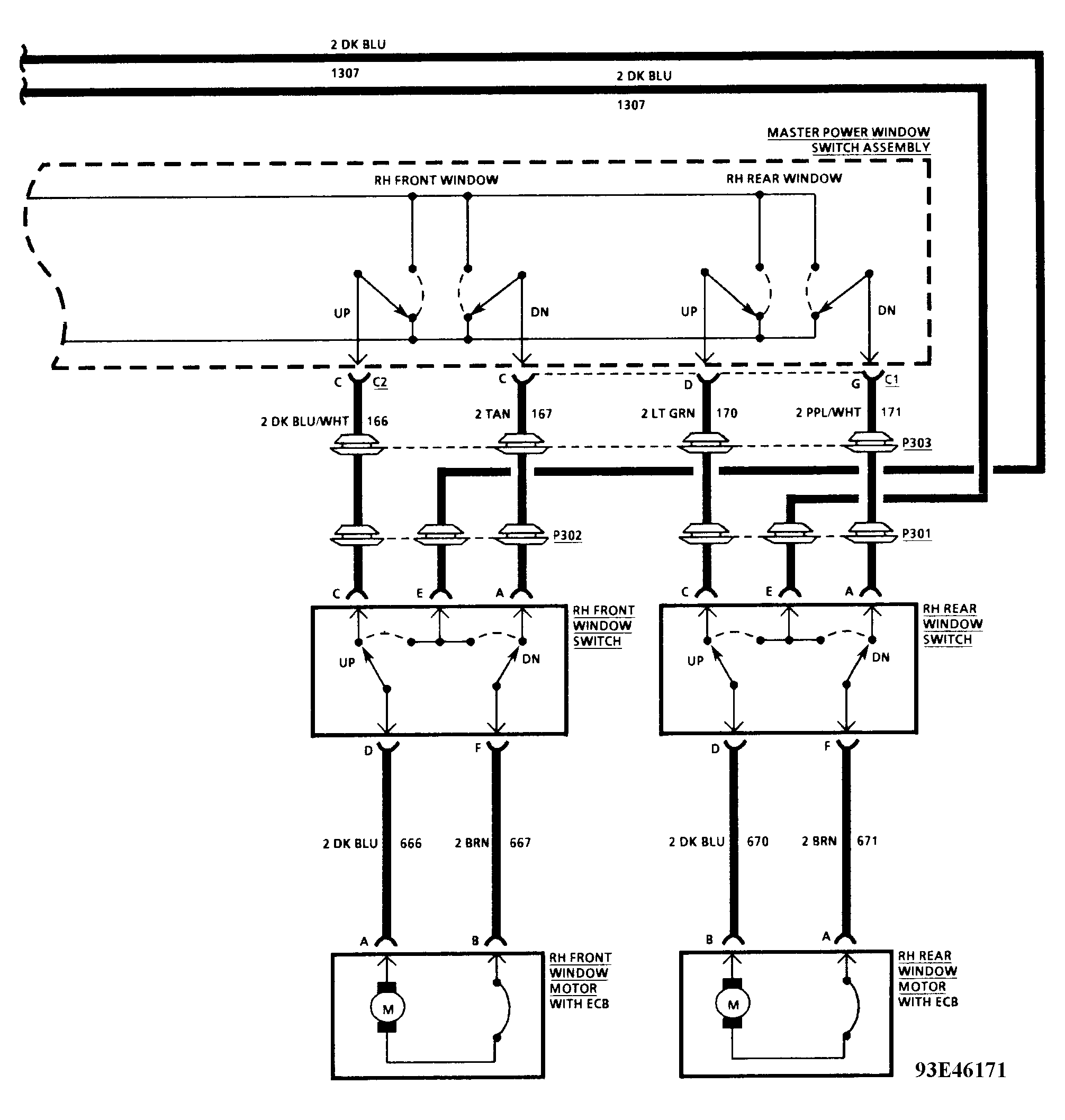

Fig 2: Power Windows Wiring Diagram (Caprice & Roadmaster - 2 Of 2)
G93E46171Courtesy of GENERAL MOTORS CORP.
