Diagnostic Aids

A faulty or misadjusted park/neutral switch may set a false Code 24. Use scan tester to check for proper signal in Drive while wiggling shifter.

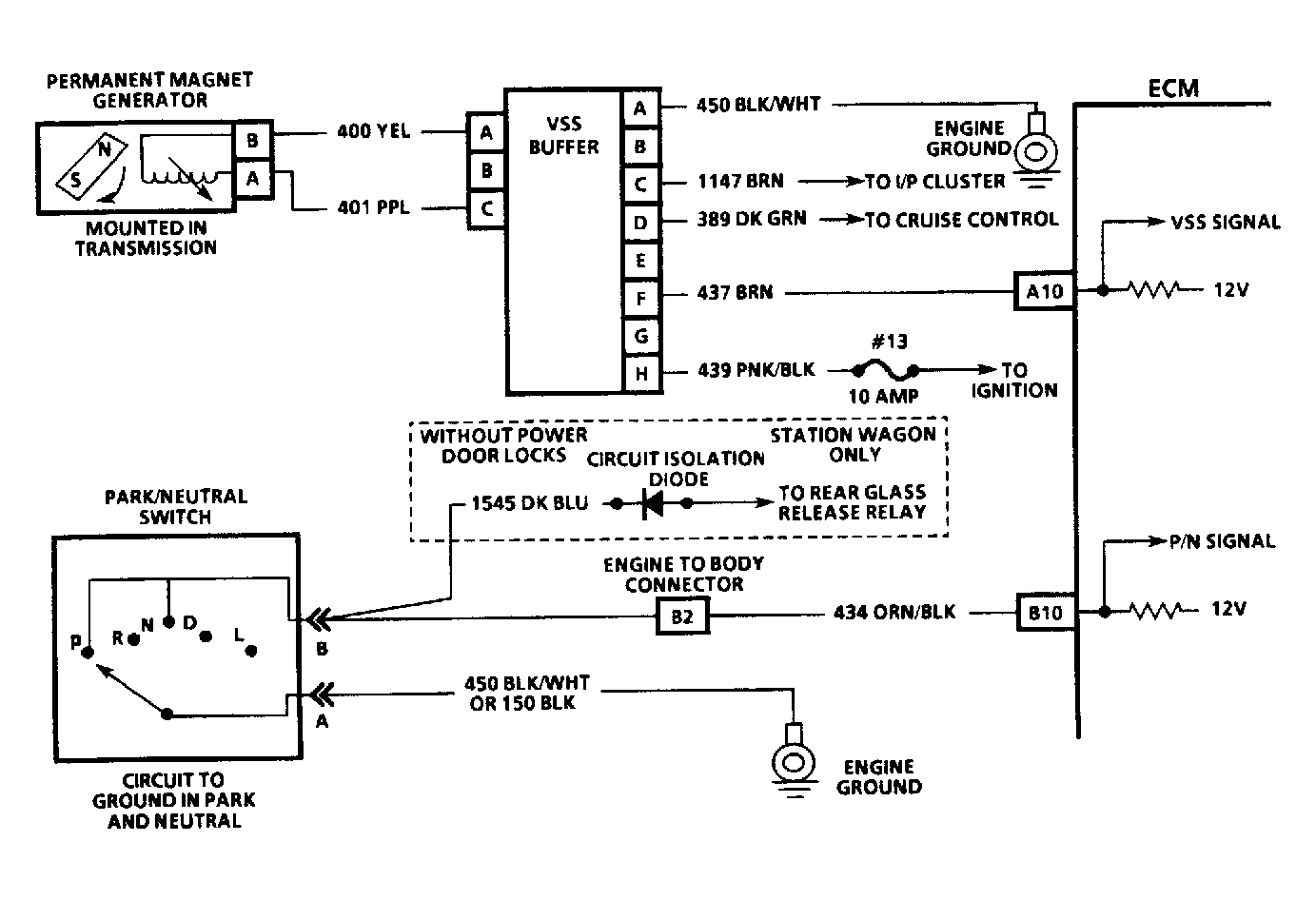

Fig 1: Code 24 Schematic Vehicle Speed Sensor

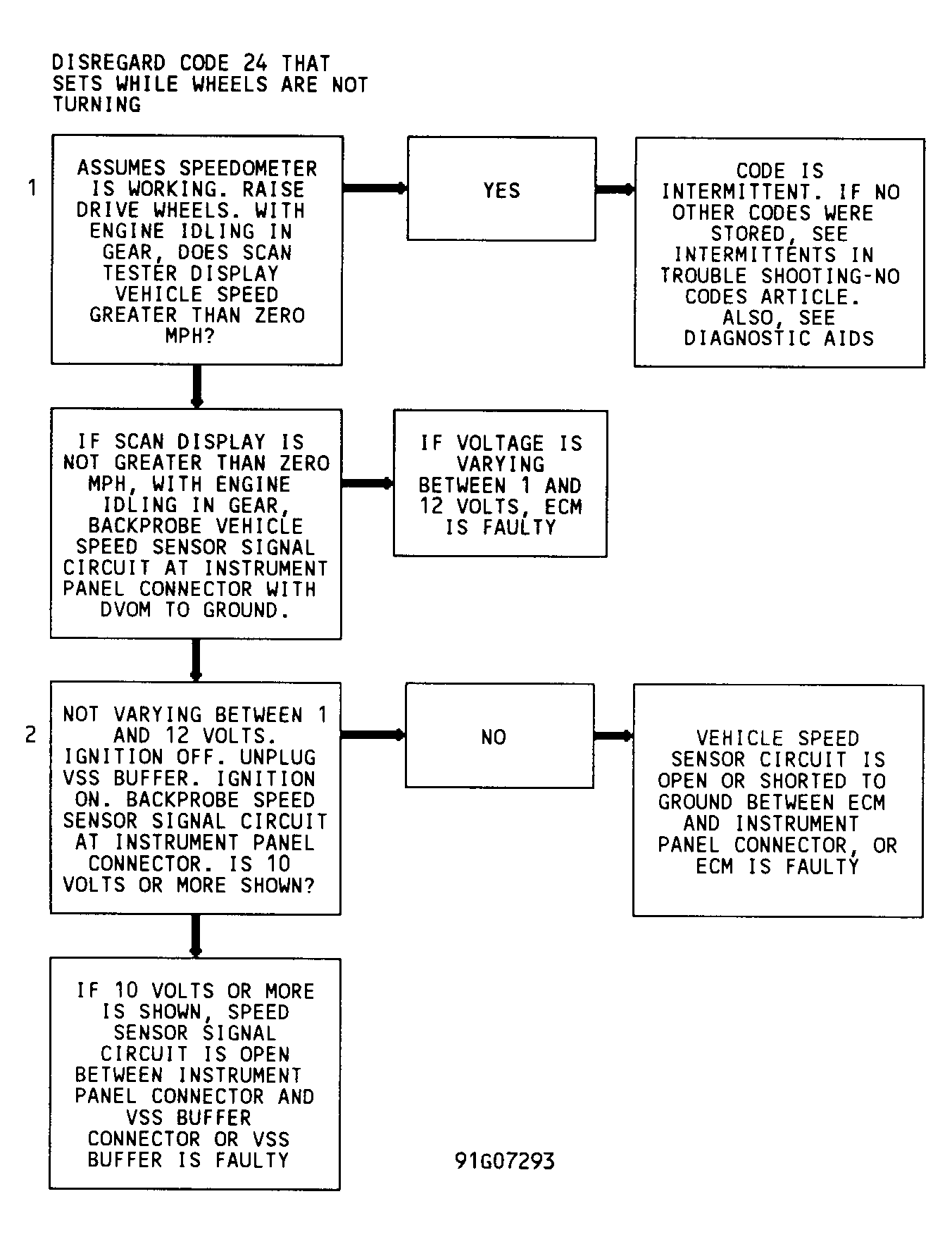

Fig 2: Code 24 Flow Chart Vehicle Speed Sensor
