Component Locations

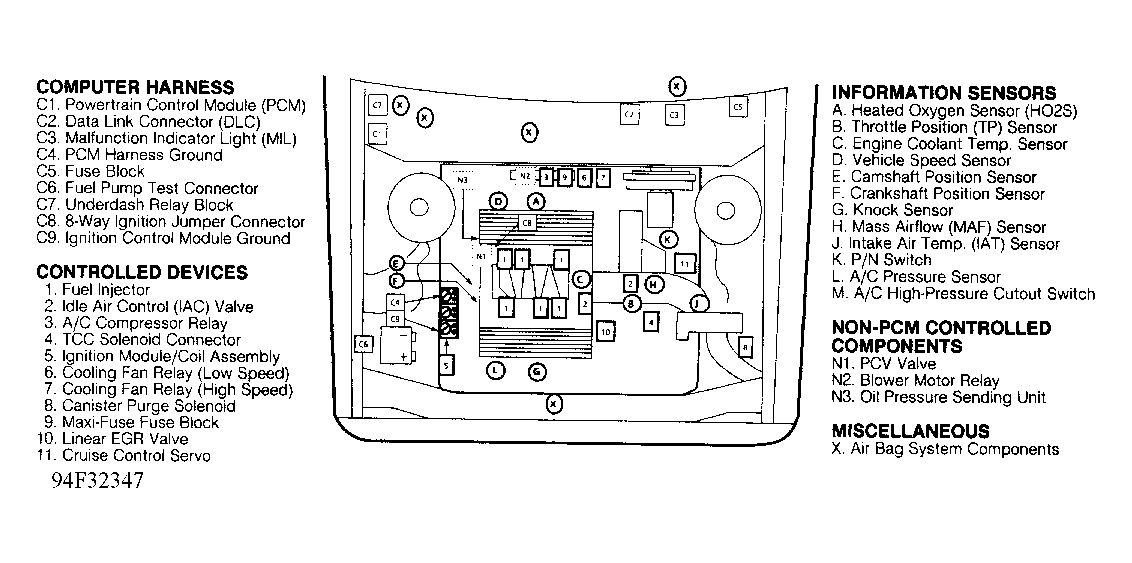

Fig 1: Component Locations (3.8L VIN L)
G94F32347Courtesy of GENERAL MOTORS CORP.

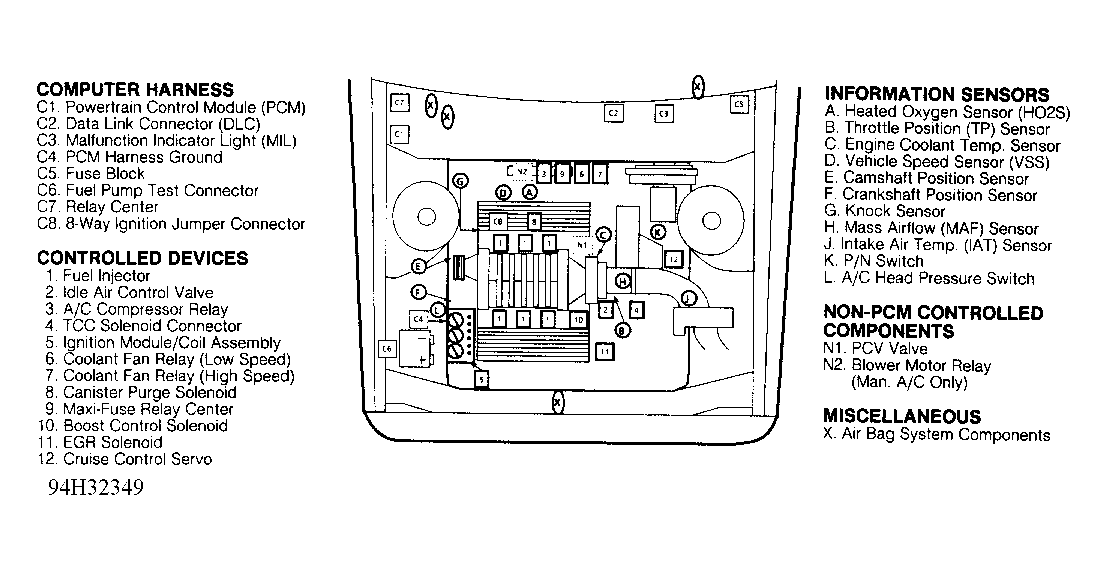

Fig 2: Component Locations (3.8L VIN 1)
G94H32349Courtesy of GENERAL MOTORS CORP.
