Code P1406, EGR Valve Pintle Position (2 Of 2)

NOTE: Test numbers refer to numbers on diagnostic chart.

Checks will diagnose an incorrect EGR pintle position sensor input signal. This test verifies a 5 volts reference at EGR valve.
Ensures position signal circuit is not shorted to ground.
Checks position signal circuit for an open.

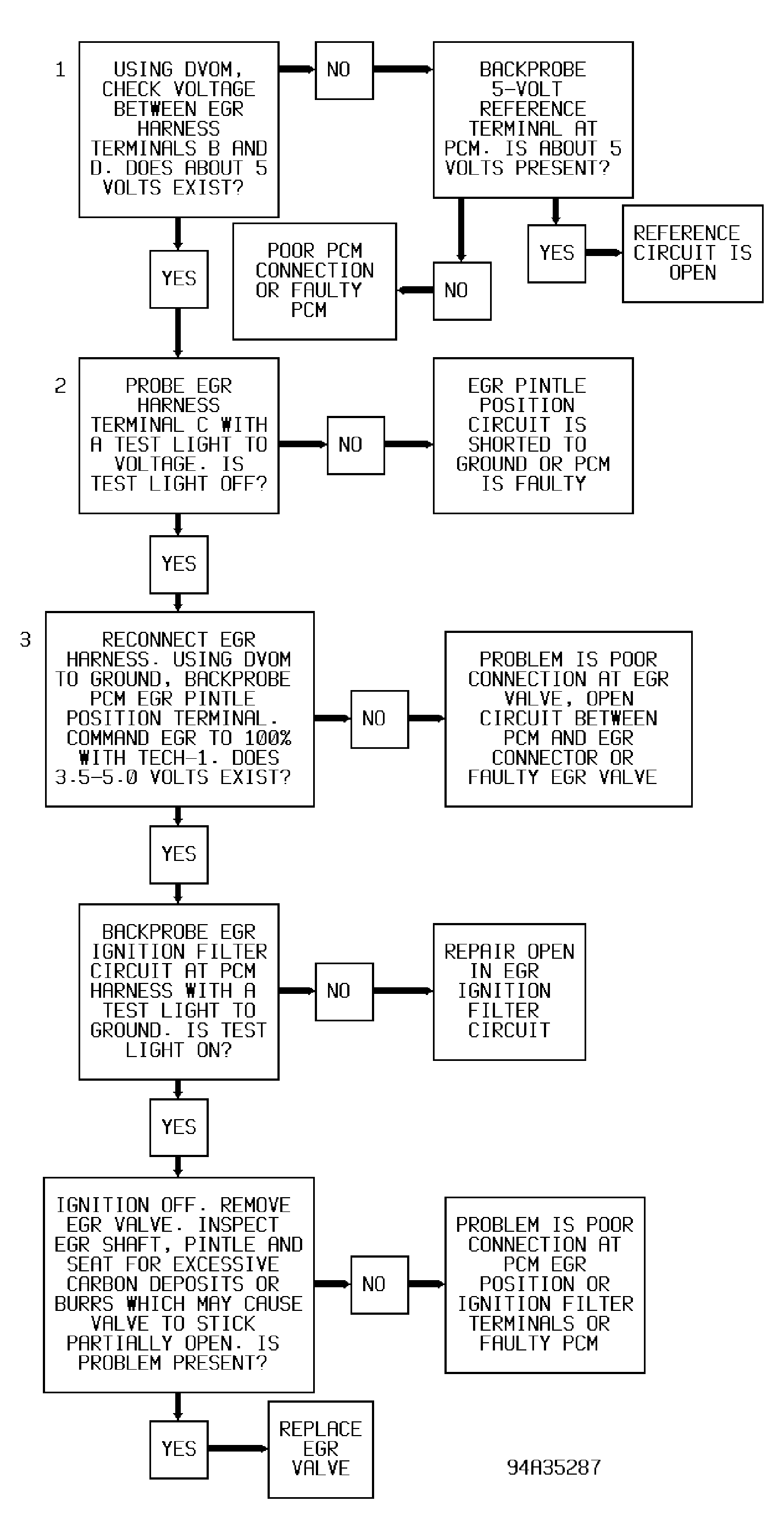

Fig 1: Code P1406 Flow Chart (3.8L - 2 Of 2) EGR Valve Pintle Position

Fig 2: Code P1406 Flow Chart
