Diagnostic Aids

Monitor voltage at each terminal shown above while moving related harness connectors, including PCM harness. If failure is induced, voltage will change. This may assist in isolating an intermittent condition. Check for bent pins at PCM and PCM connector terminals. If code reoccurs with no apparent connector problem, replace PCM.

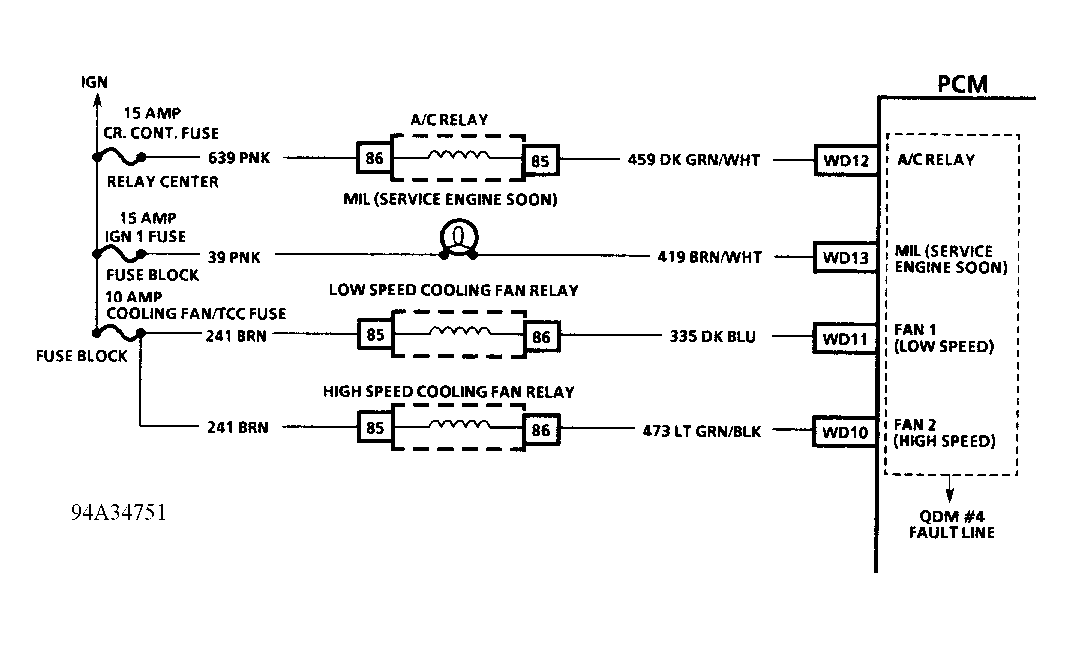

Fig 1: Code P1670 Schematic (3.8L) QDM No. 4

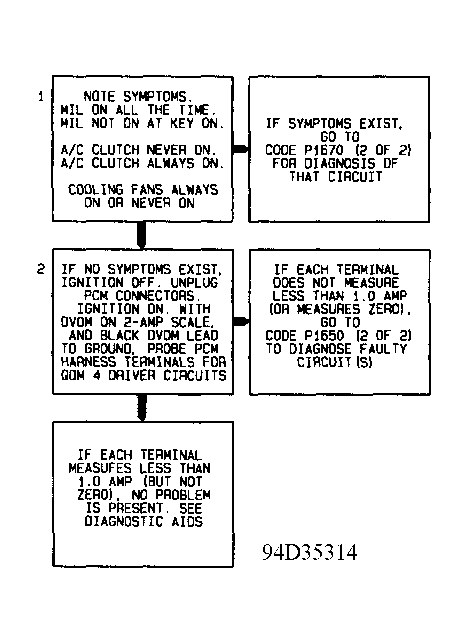

Fig 2: Code P1670 Flow Chart (3.8L - 1 Of 2) QDM No. 4

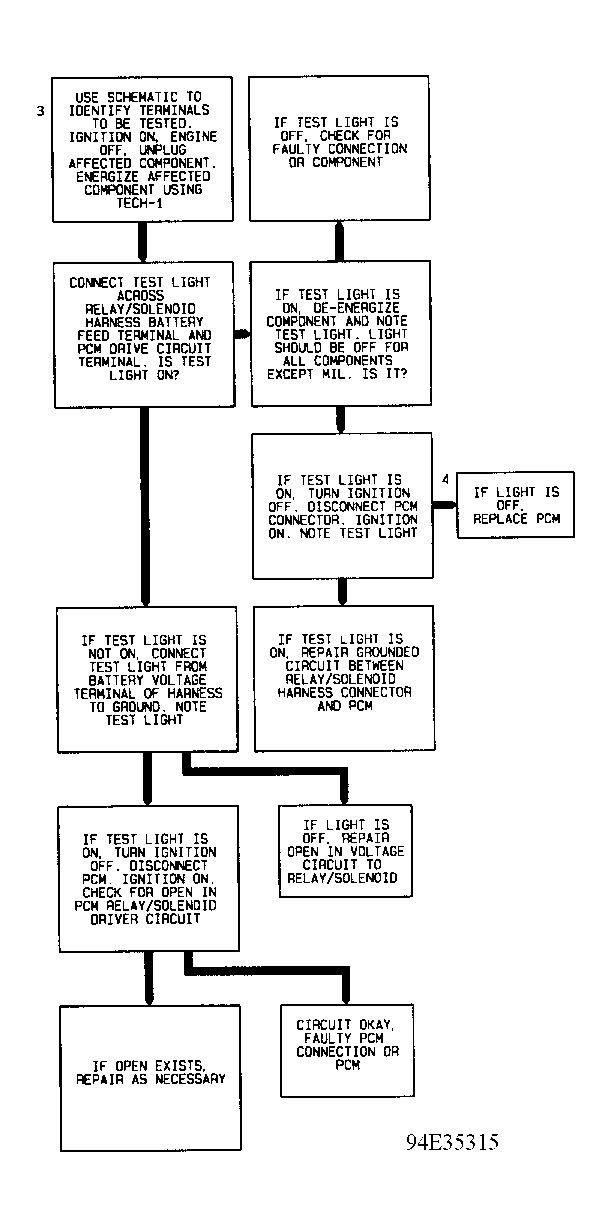

Fig 3: Code P1670 Flow Chart (3.8L - 2 Of 2) QDM No. 4
