Diagnostic Aids

Code will set if PCM detects one of 2 illegal combinations. Check all connections for good contact.

Fig 1: Code 28 Schematic (5.7L) Transmission Range Pressure Switch

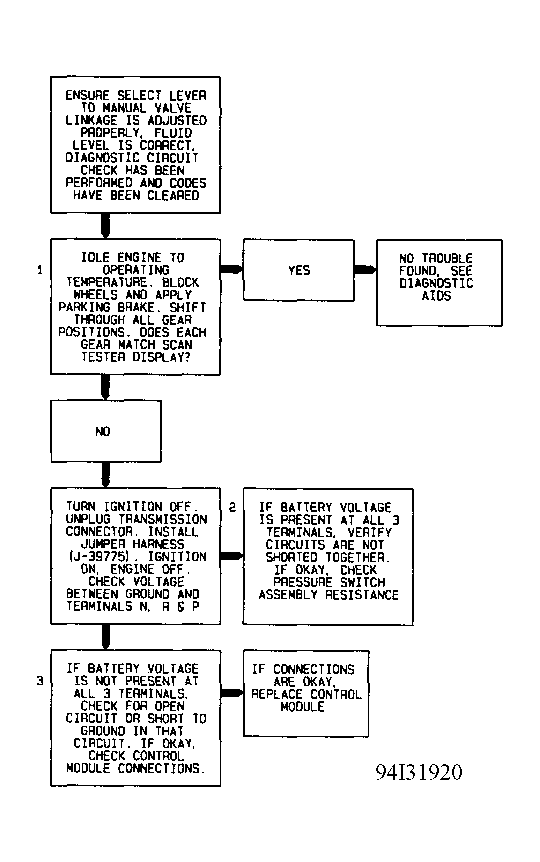

Fig 2: Code 28 Flow Chart (5.7L) Transmission Range Pressure Switch
