Diagnostic Aids

Check related harness connectors, including PCM harness. Check for damaged or pushed out terminals.

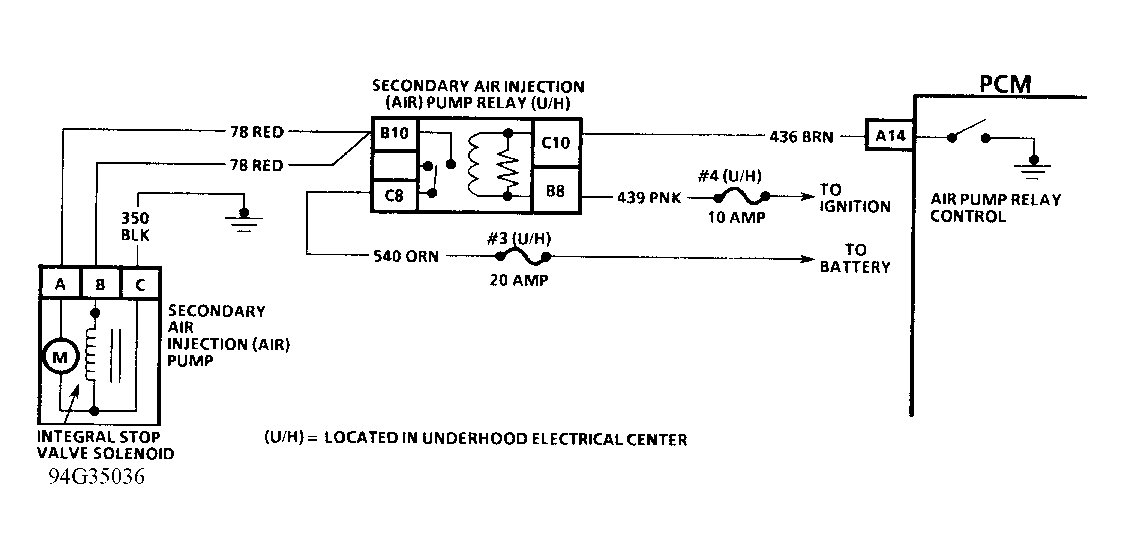

Fig 1: Code 29 Schematic (5.7L) Secondary Air Injection
G94G35036
Fig 2: Code 29 Flow Chart (5.7L) Secondary Air Injection
G94C35040
