Diagnostic Aids

If TCC is mechanically stuck on, vehicle speed is zero, brakes are applied, and D2 is selected, TCC fluid will mechanically apply the TCC, causing an engine stall.

Fig 1: Code 85 Schematic (5.7L) TCC Stuck On

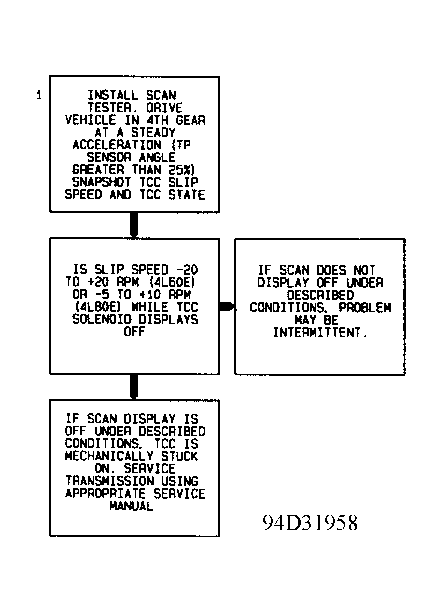

Fig 2: Code 85 Flow Chart (5.7L) TCC Stuck On
