Diagnostic Aids

Inspect harness and all related connections, including PCM connections. These may cause an intermittent code to set.

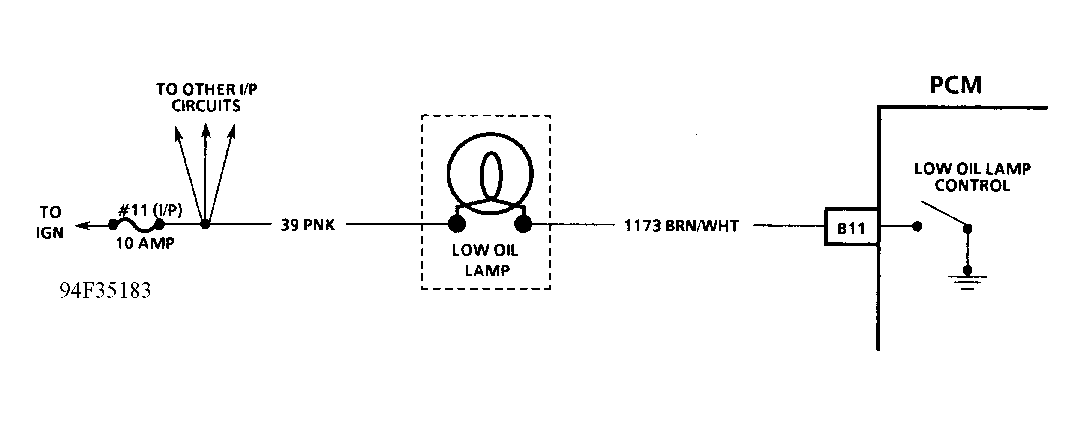

Fig 1: Code 96 Schematic (5.7L) Low Oil Light

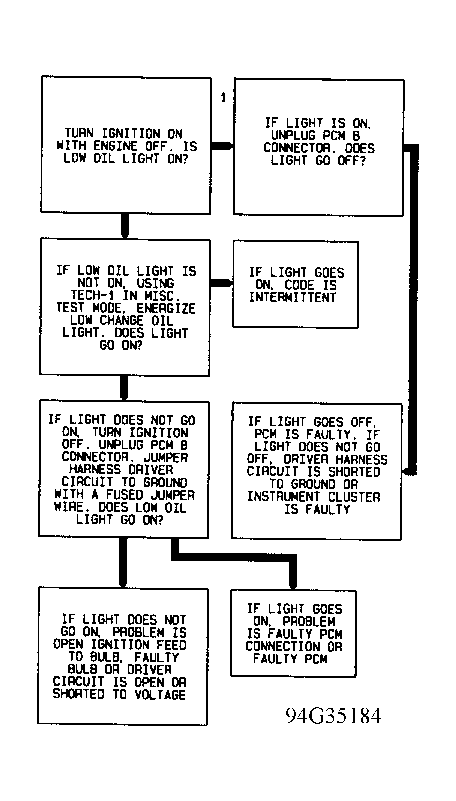

Fig 2: Code 96 Flow Chart (5.7L) Low Oil Light
