Transmitter Programming
NOTE:
Following procedure must be performed when replacing RKE module or either transmitter.

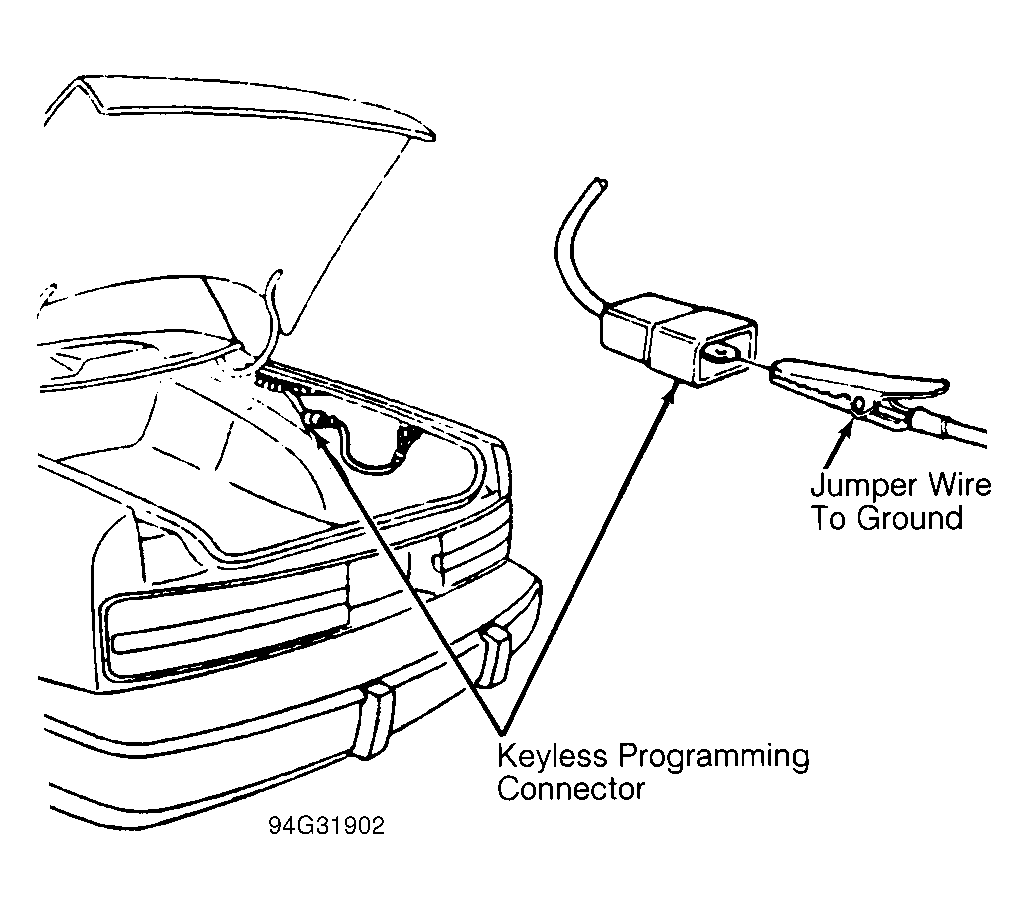

Turn ignition switch to OFF position (all power door locks will lock and unlock). Use a fused jumper wire and jump program connector to ground. See Fig 1 . Press any button on one transmitter. Door locks, fuel door and trunk lid release should activate in approximately 2 seconds. First transmitter is now programmed. Repeat this step using other transmitter. If only one transmitter is being used, disconnect jumper wire from DLC.
