Removal & Installation

  1. Disconnect negative battery cable. Disconnect connectors at ignition control module. See Fig 1. Disconnect spark plug wires from coil pack. Remove coil pack/ignition control module assembly. For ignition control module location, see COMPONENT LOCATIONS in appropriate SYSTEM/COMPONENT TESTING article in this section below. Separate ignition coil(s) from ignition control module (if possible).
  2. To install, reverse removal procedure. Tighten ignition control module mounting bolts/nuts. Tighten mounting bolts/nuts to specification. See TORQUE SPECIFICATIONS .
Fig 1: Locating Distributorless Ign. Control Module Components (2.2L)
G95B13442Courtesy of GENERAL MOTORS CORP.

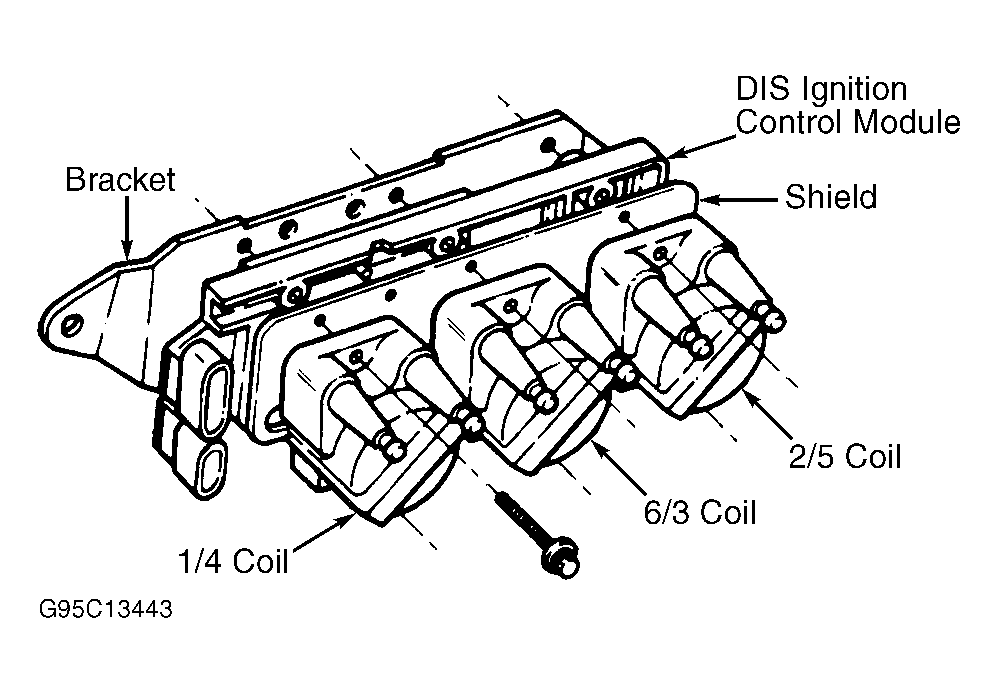

Fig 2: Locating Distributorless Ign. Cntrl. Module Components (3.1L)
G95C13443Courtesy of GENERAL MOTORS CORP.
