Engine Controls - System/Component Tests - 3.1L
>>
Component Locations
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Locations

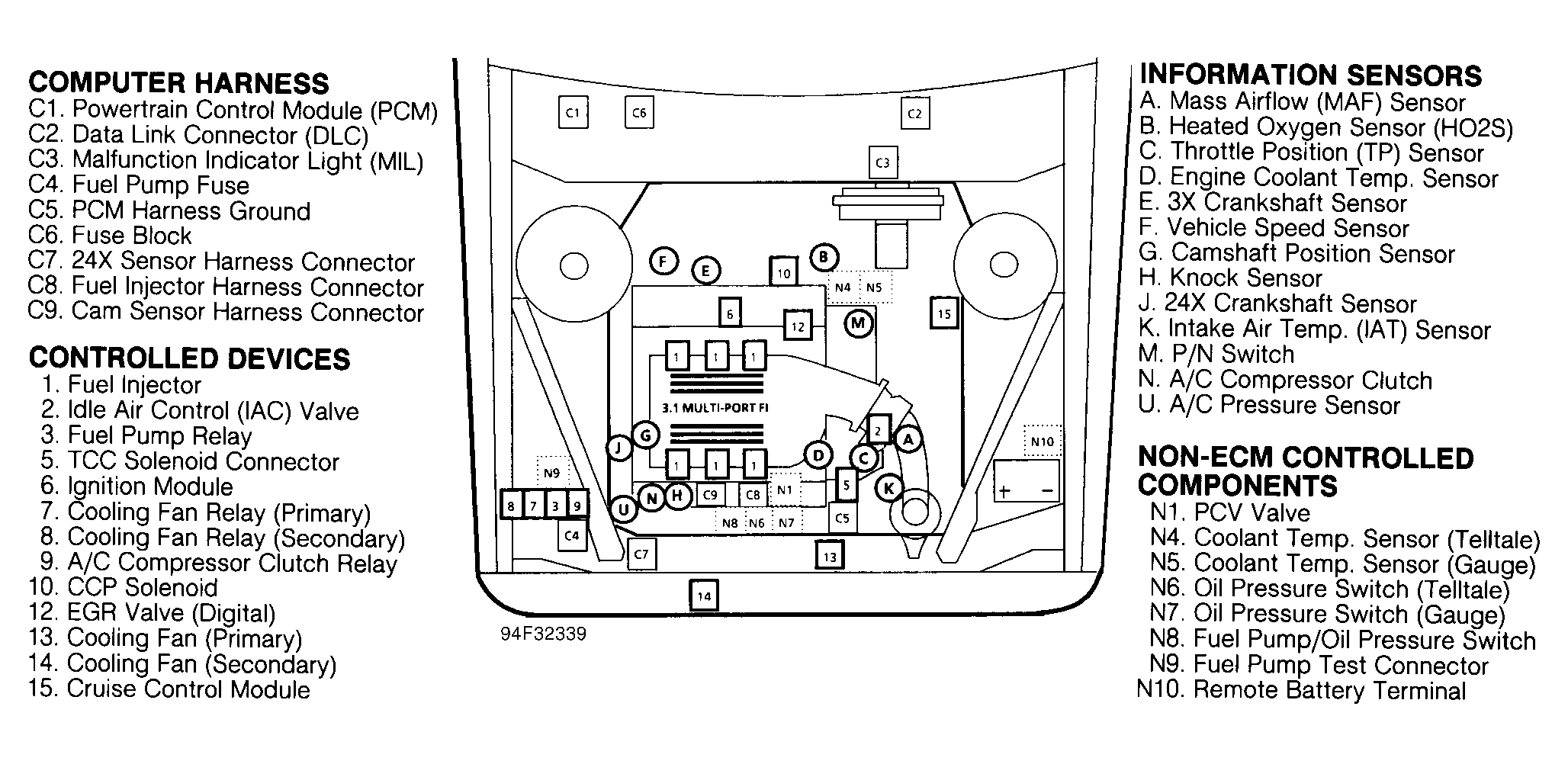

Fig 1: Component Locations (3.1L VIN M)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
