Component Locations

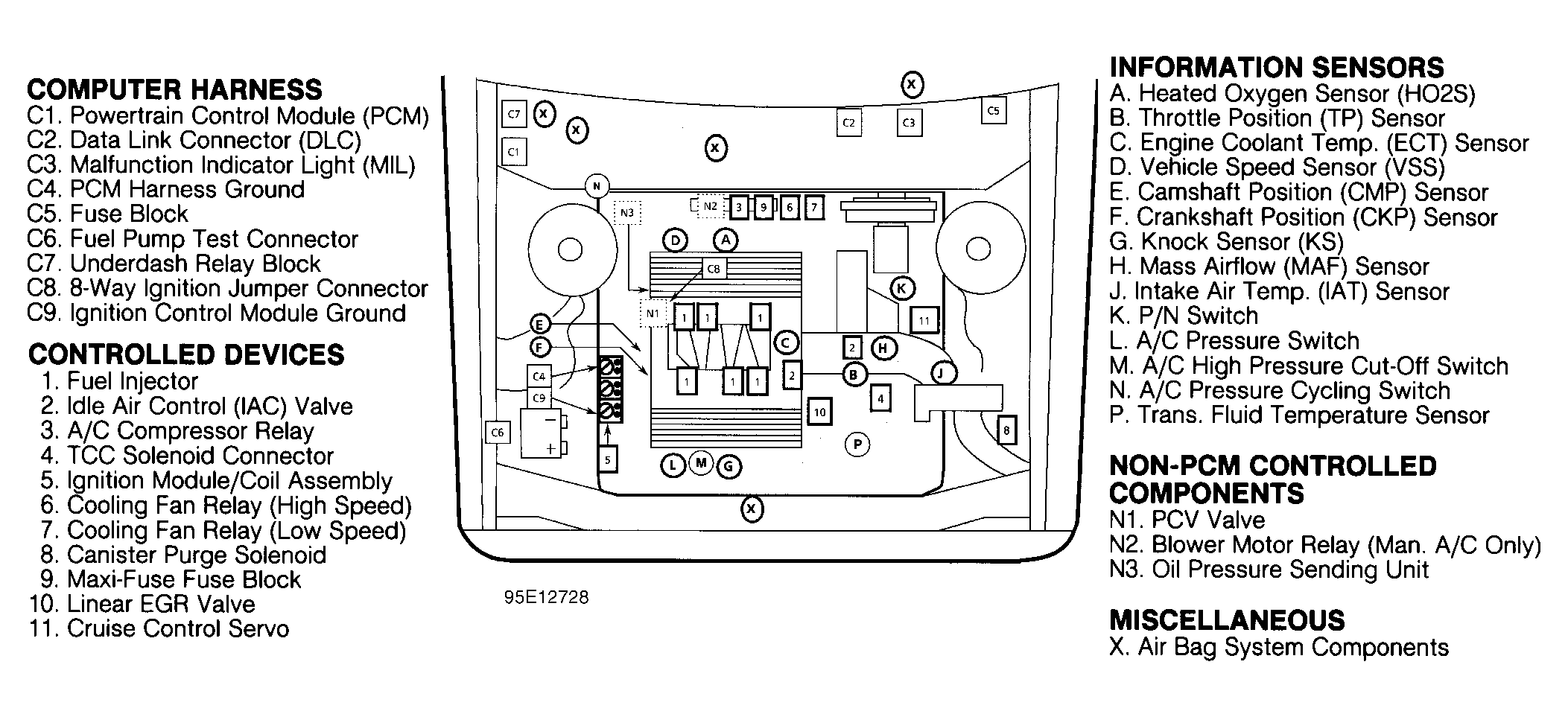

Fig 1: Component Locations (3.8L VIN L)
G95E12728Courtesy of GENERAL MOTORS CORP.

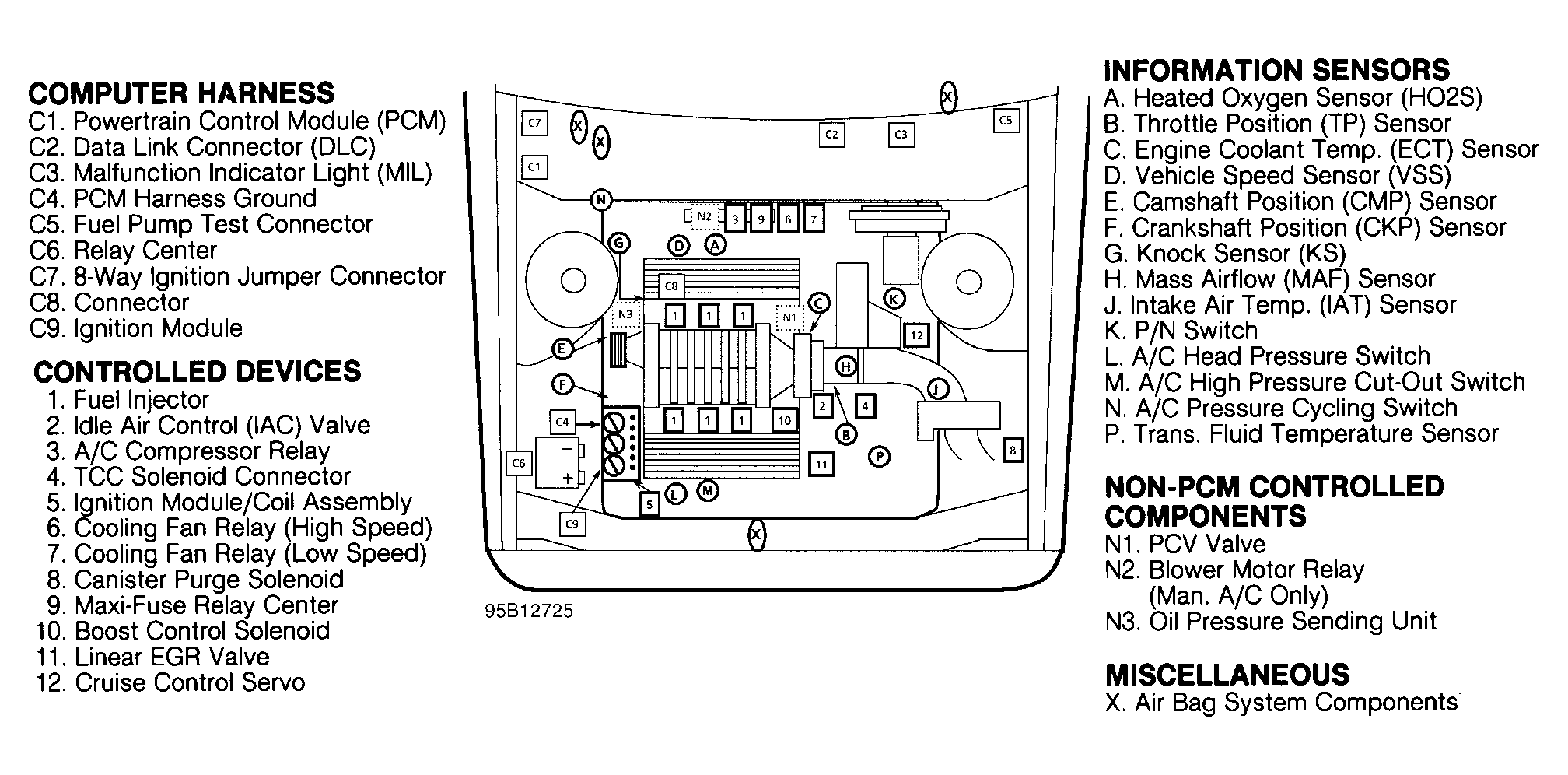

Fig 2: Component Locations (3.8L VIN 1)
G95B12725Courtesy of GENERAL MOTORS CORP.
