Test Description
NOTE:

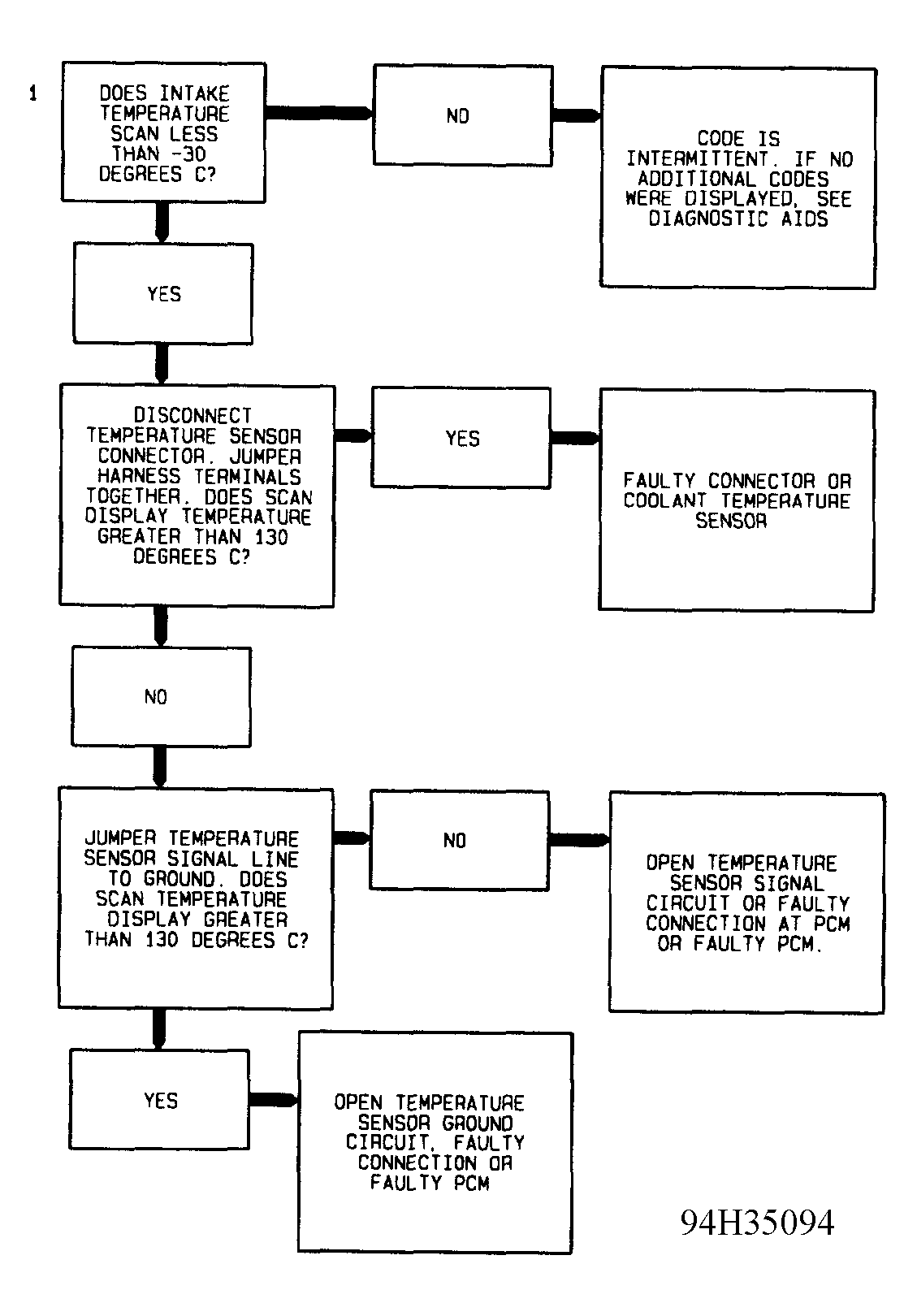

Test numbers refer to numbers on diagnostic chart.
- An open sensor, wire or connection will cause Code P0112 to set. An open circuit would cause scan tester to display about -40°C. This test determines if wiring and PCM are okay.
