Test Description
NOTE:

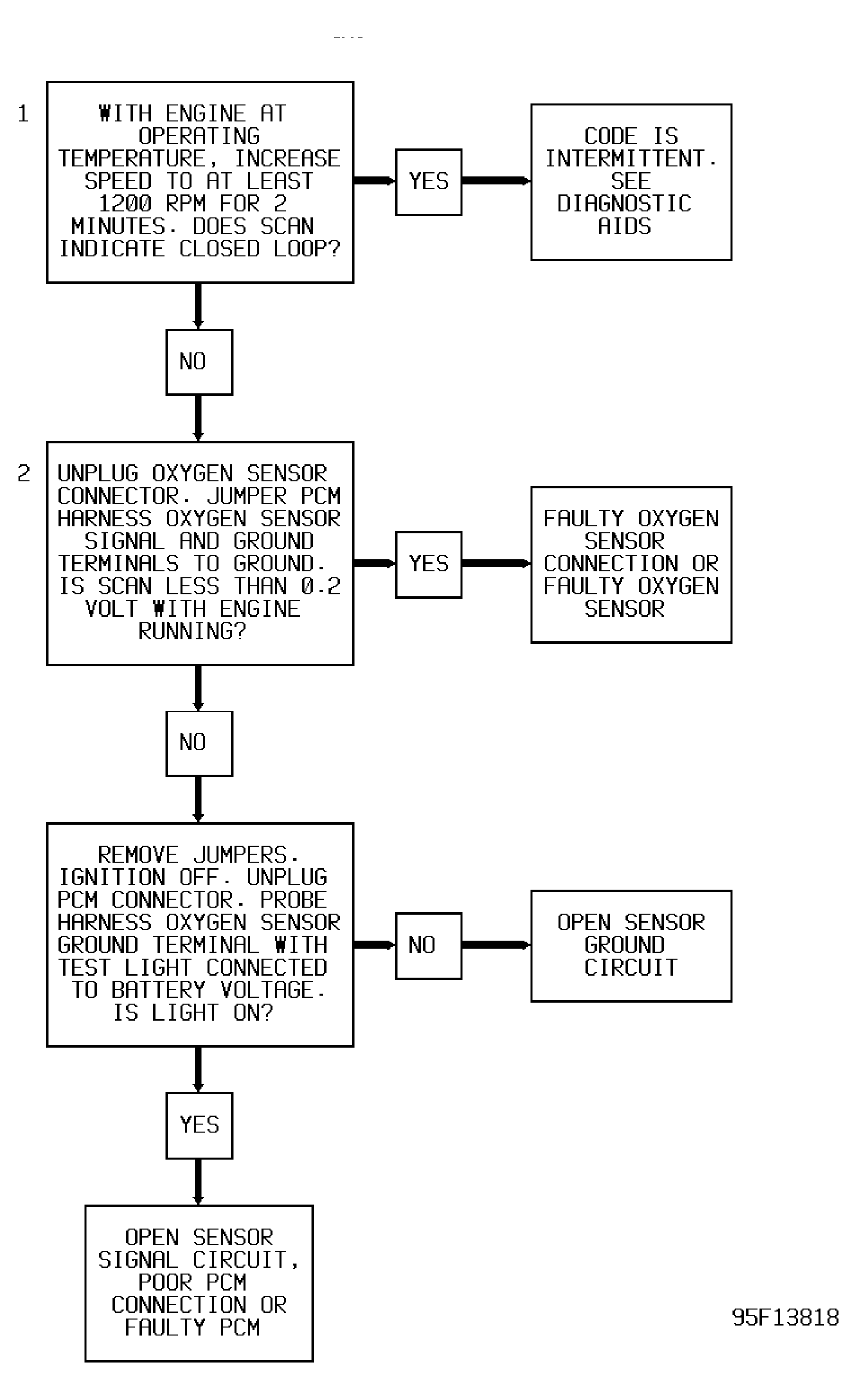

Test numbers refer to numbers on diagnostic chart.
- If conditions necessary to set Code P0132 exist, system will not go into closed loop.
- This will determine if sensor or wiring is cause of Code P0134.
- This test checks continuity in reference circuit.
