Test Description
NOTE:

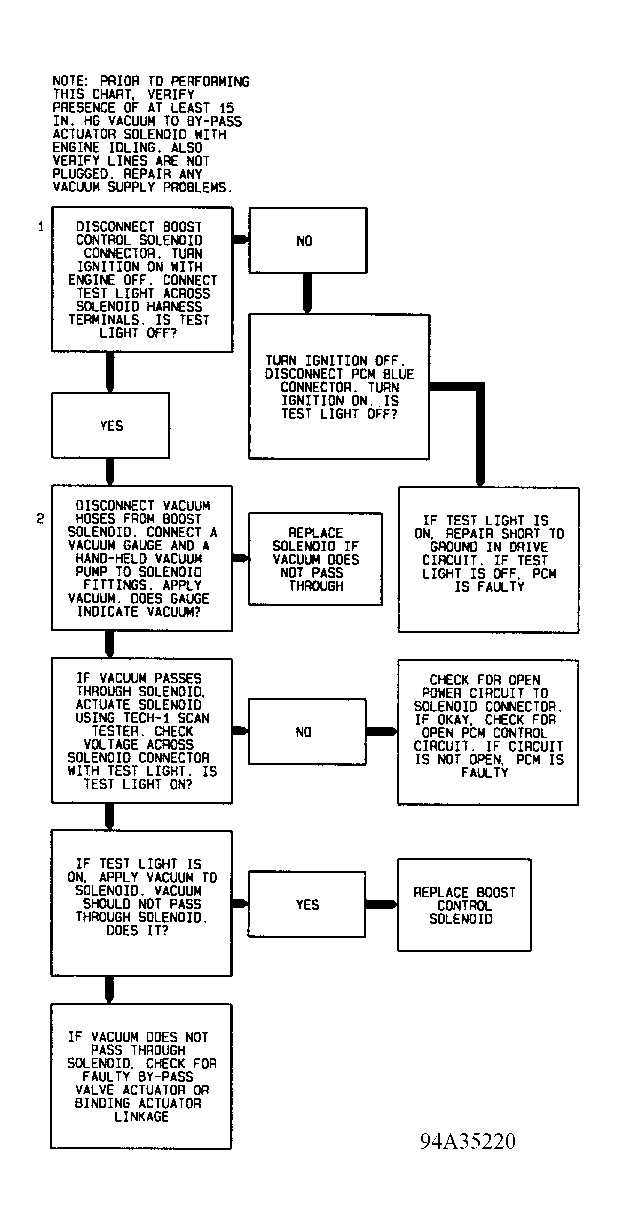

Test numbers refer to numbers on diagnostic chart.
- Circuit shorted to ground will keep by-pass valve closed when PCM is commanding it open, possibly causing an overboost condition during high engine load situations.
- No inlet vacuum to by-pass valve actuator may cause by-pass valve to remain closed during deceleration. This condition may be perceived as a sail-on, possibly accompanied by a rough idle.
