Test Description
NOTE:

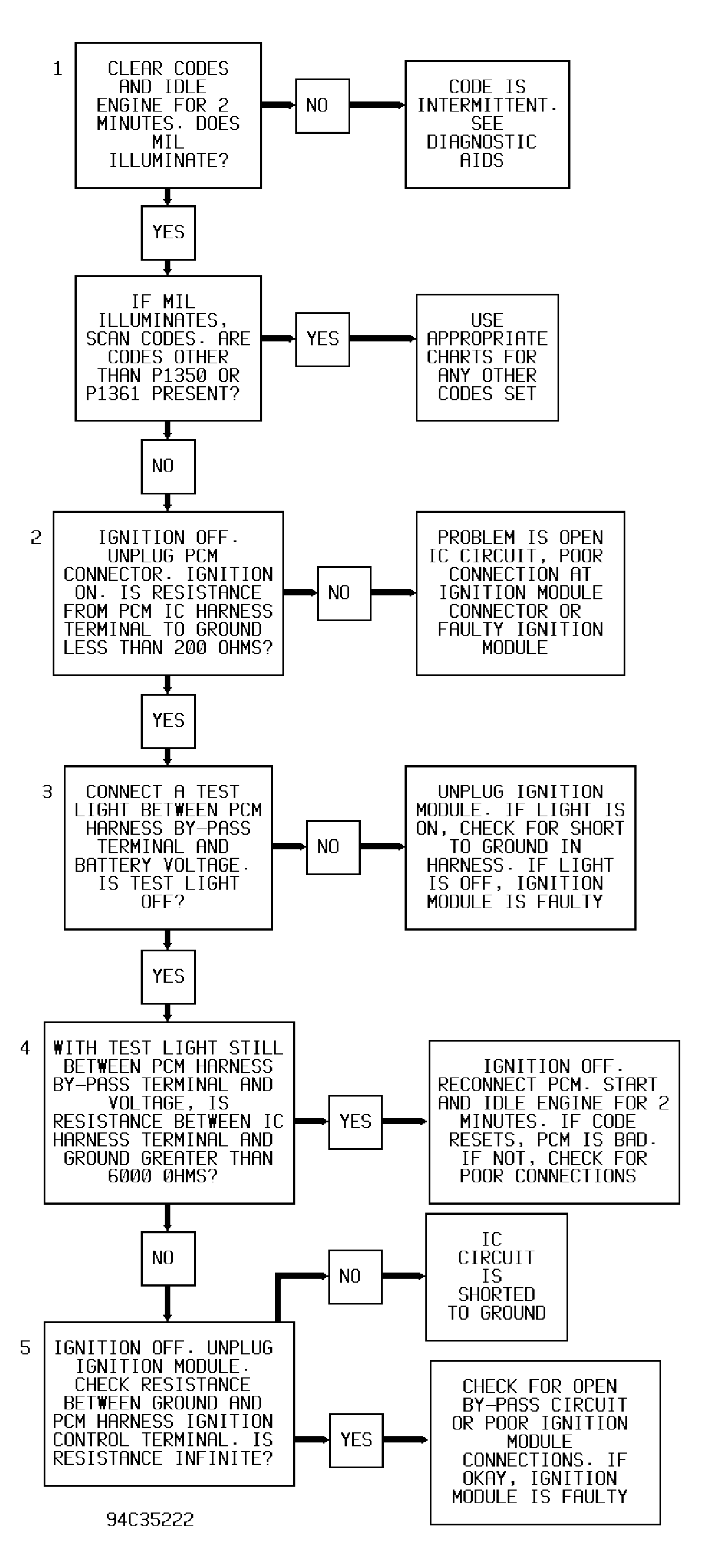

Test numbers refer to numbers on diagnostic chart.
- Checks if PCM recognizes a problem. If Codes P1350/P1361 are not set, problem is intermittent and could be caused by a loose connection.
- With PCM disconnected, ohmmeter reading should be less than 2000 ohms, which is normal resistance of IC circuit through ICM. A higher resistance indicates a fault in IC circuit, a poor ignition module connection, or a faulty ICM.
- If test light lights when connected between 12 volts and PCM by-pass circuit terminal, then either by-pass circuit is shorted to ground, or ICM is faulty.
- Checks if ICM switches when by-pass circuit is energized by 12 volts through test light. If ICM switches, ohmmeter reading should shift to greater than 6000 ohms.
- Disconnecting ICM should make ohmmeter read as if an open circuit was being monitored (infinite reading). Otherwise, IC circuit is shorted to ground.
