OPTI-Spark Distributor: Notes

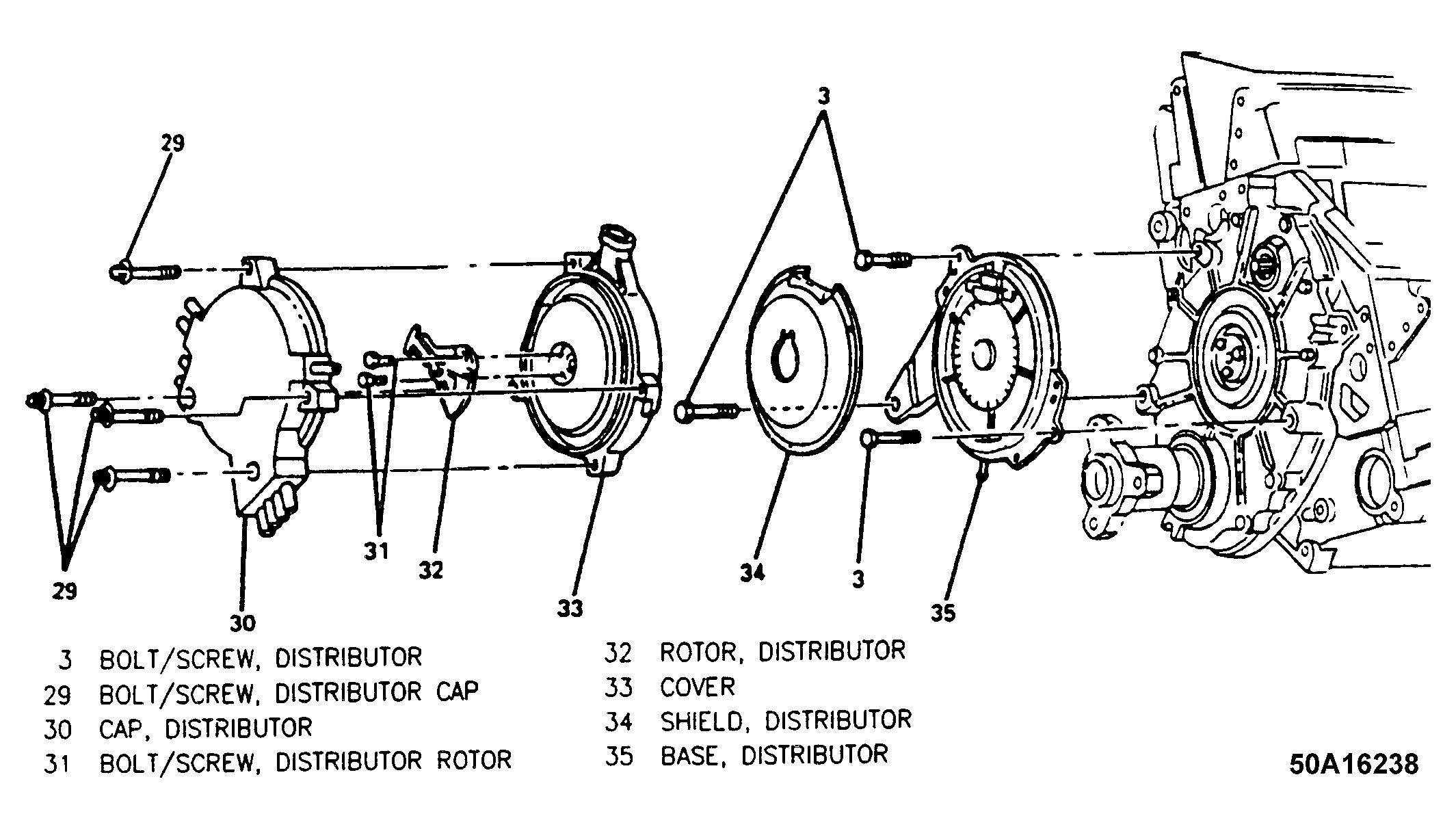

Fig 1: Exploded View of Distributor
G50A16238

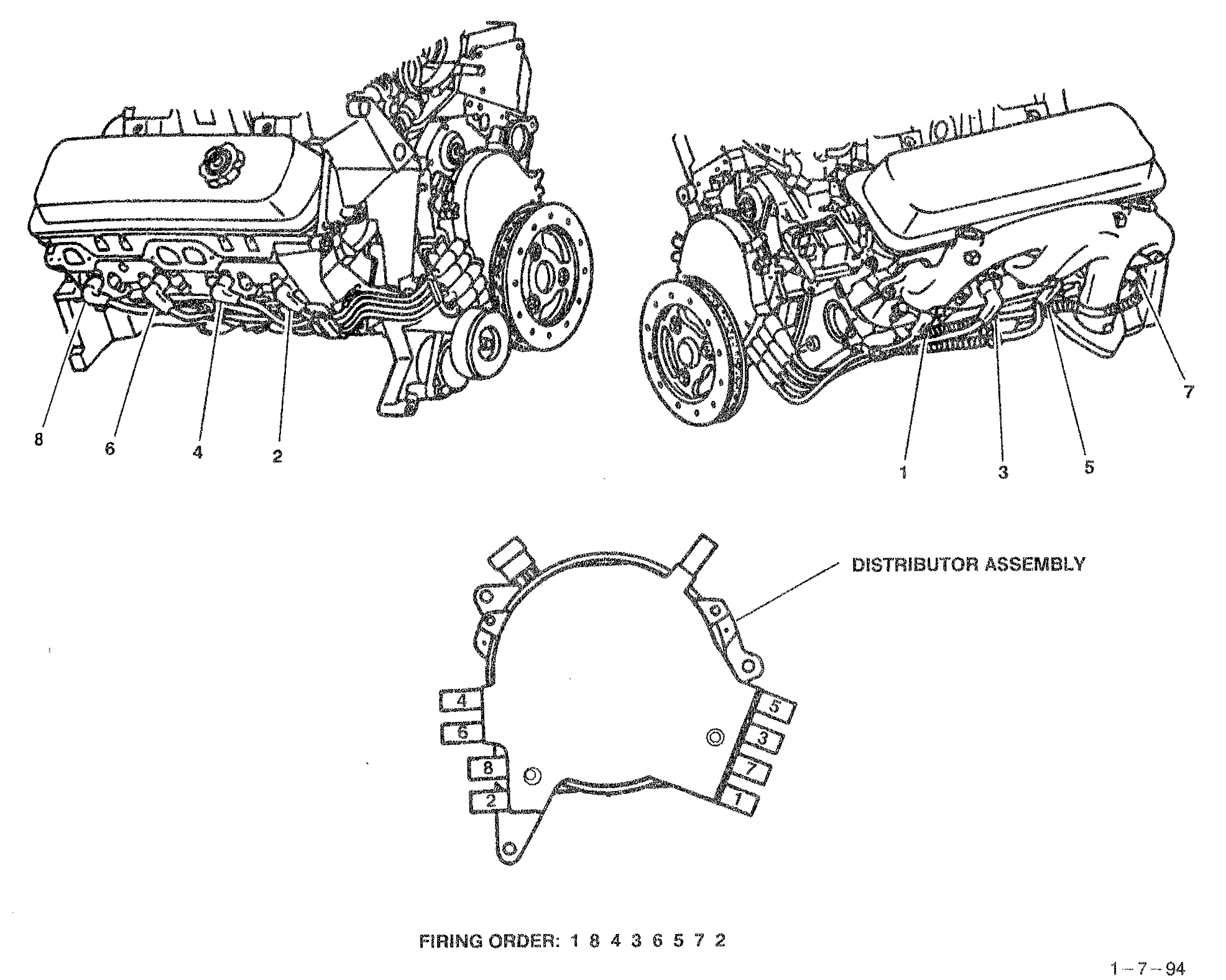

Fig 2: Identifying Spark Plug Wire Harness Routing
G00403522Courtesy of GENERAL MOTORS CORP.
