Diagnostic Aids

If ignition feed circuit is suspected of being open, check and see if other bulbs on that circuit illuminate. Code 11 will cause MIL to remain on, even if malfunction clears.

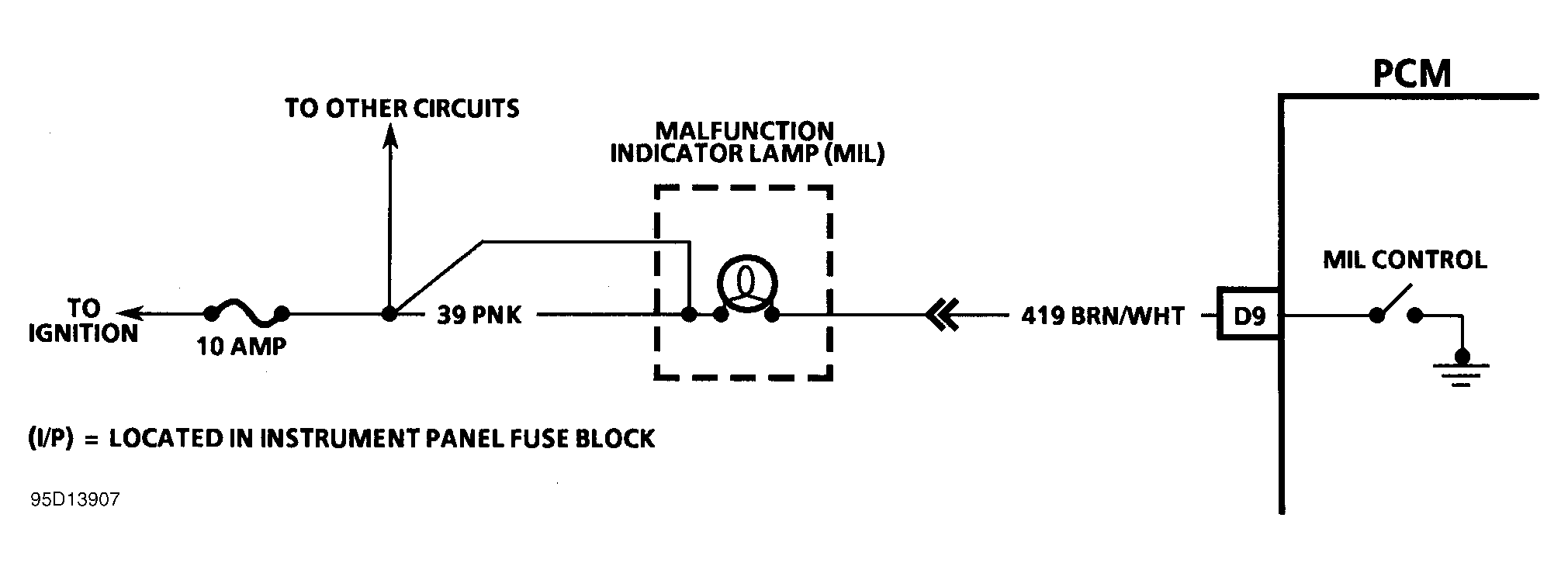

Fig 1: Code 11 Schematic (5.7L) MIL Circuit
G95D13907

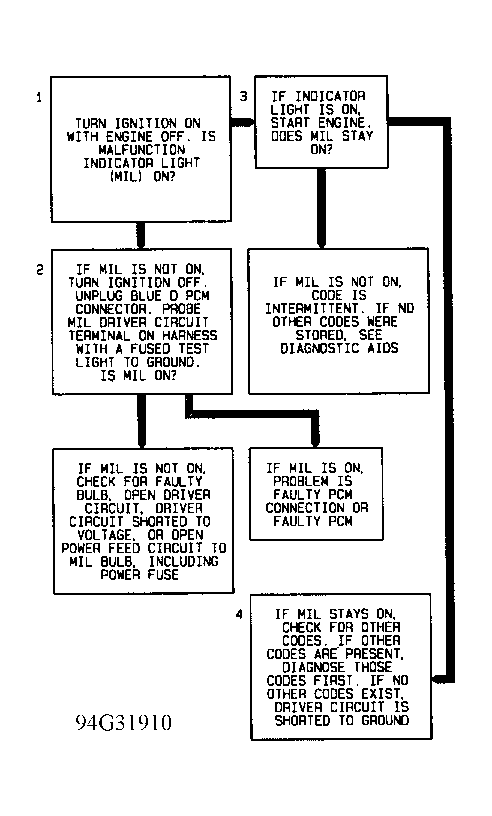

Fig 2: Code 11 Diagnostic Flow Chart (5.7L) MIL Circuit
G94G31910
