Diagnostic Aids

Code 37 can be caused by a misadjusted brake switch or a poor connection. Code may also be set by unusual driving habits (i.e. stop-and-go expressway driving).

Fig 1: Code 37 Schematic (5.7L) TCC Brake Switch Error

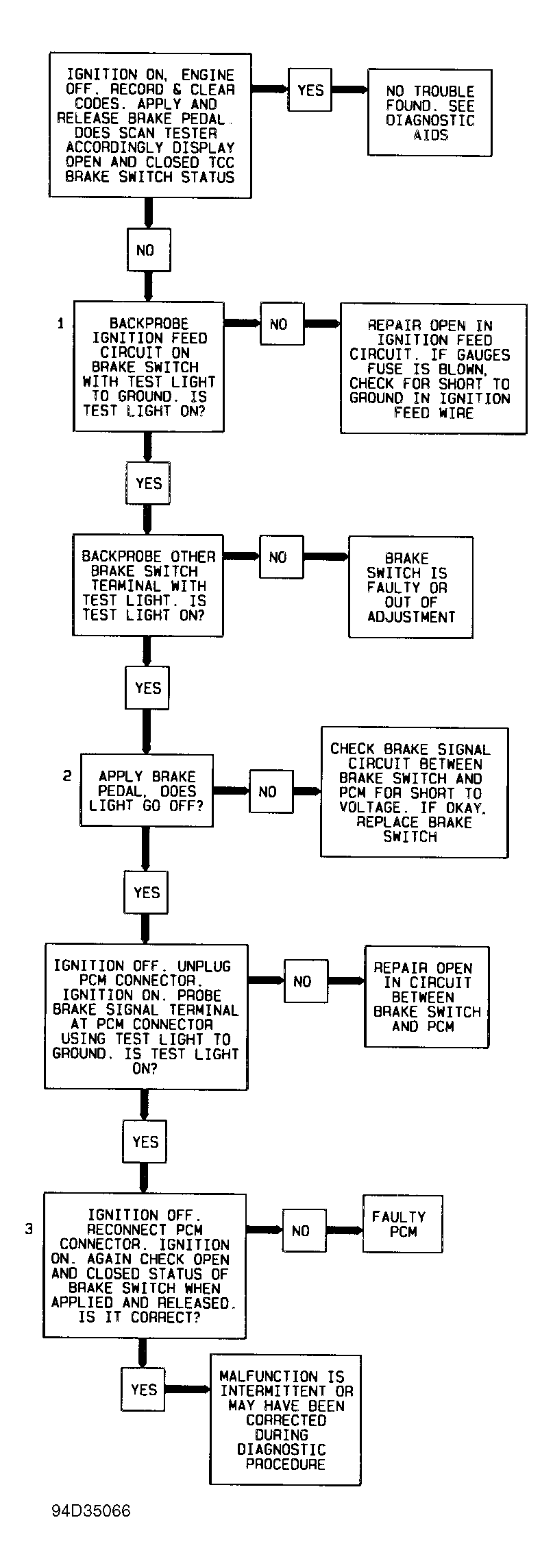

Fig 2: Code 37 Diagnostic Flow Chart (5.7L) TCC Brake Switch Error
