Diagnostic Aids

Code may also be set by unusual driving habits (i.e. stop-and-go expressway driving).

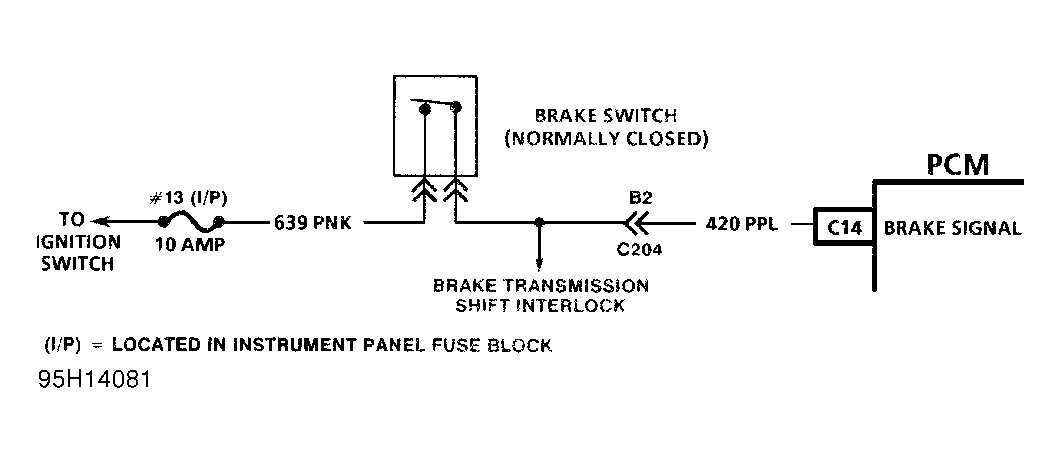

Fig 1: Code 38 Schematic (5.7L) Brake Switch Error

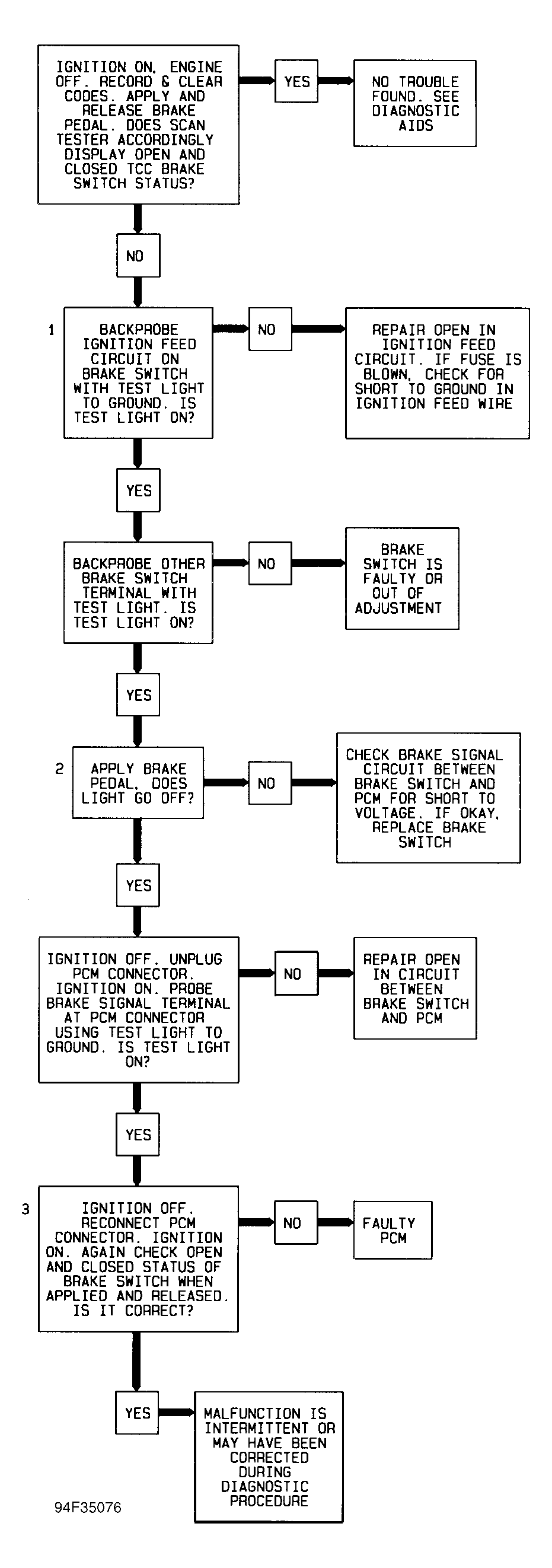

Fig 2: Code 38 Diagnostic Flow Chart (5.7L) Brake Switch Error
