Diagnostic Aids

A Code 67 will store in PCM memory but will not turn on the SERVICE ENGINE SOON light. An A/C system low on charge could cause a Code 67 to set.

Fig 1: Code 67 Schematic (5.7L) A/C Pressure Sensor

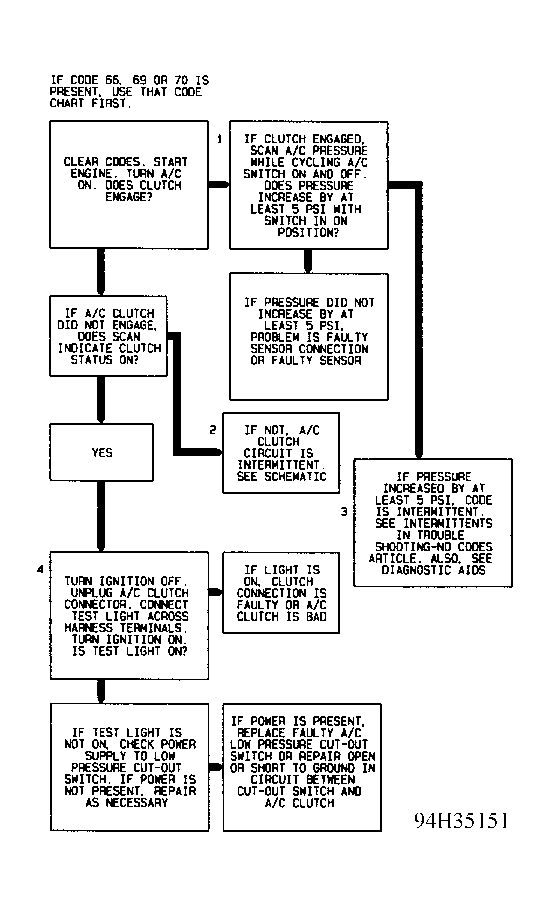

Fig 2: Code 67 Diagnostic Flow Chart (5.7L) A/C Pressure Sensor
