Column Collapse Feature

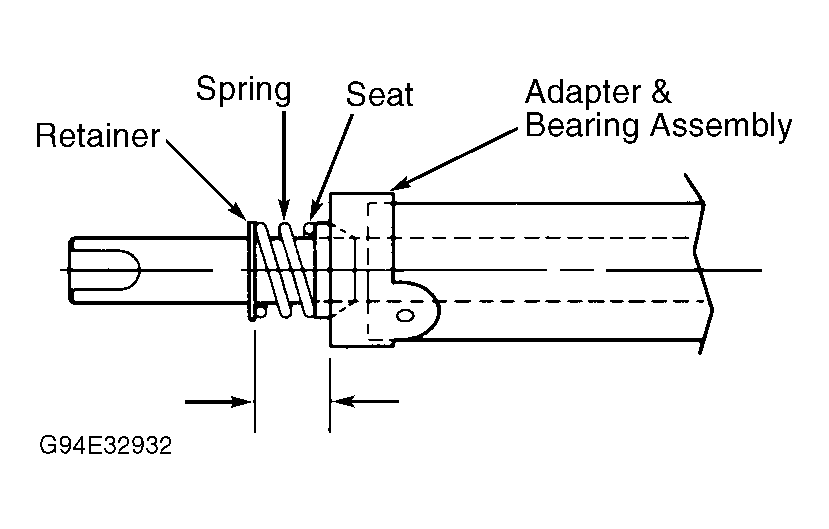

Steering column is designed to collapse if impacted during a collision. Steering shaft and column jacket are both 2-piece units which are internally injected with plastic. Plastic protrudes from holes in each unit keeping 2 separate pieces held together as one unit. See Figure . If the column or steering wheel is forcefully impacted, plastic pieces break off, allowing column and shaft to collapse.
