Torque Specifications

TORQUE SPECIFICATIONS

Application		Ft. Lbs. (N.m)
Starter Mounting Bracket-To-Engine Bolts (2.2L)		26 (35)
Starter Mounting Bolts
2.2L		32 (43)
3.1L		32 (43)

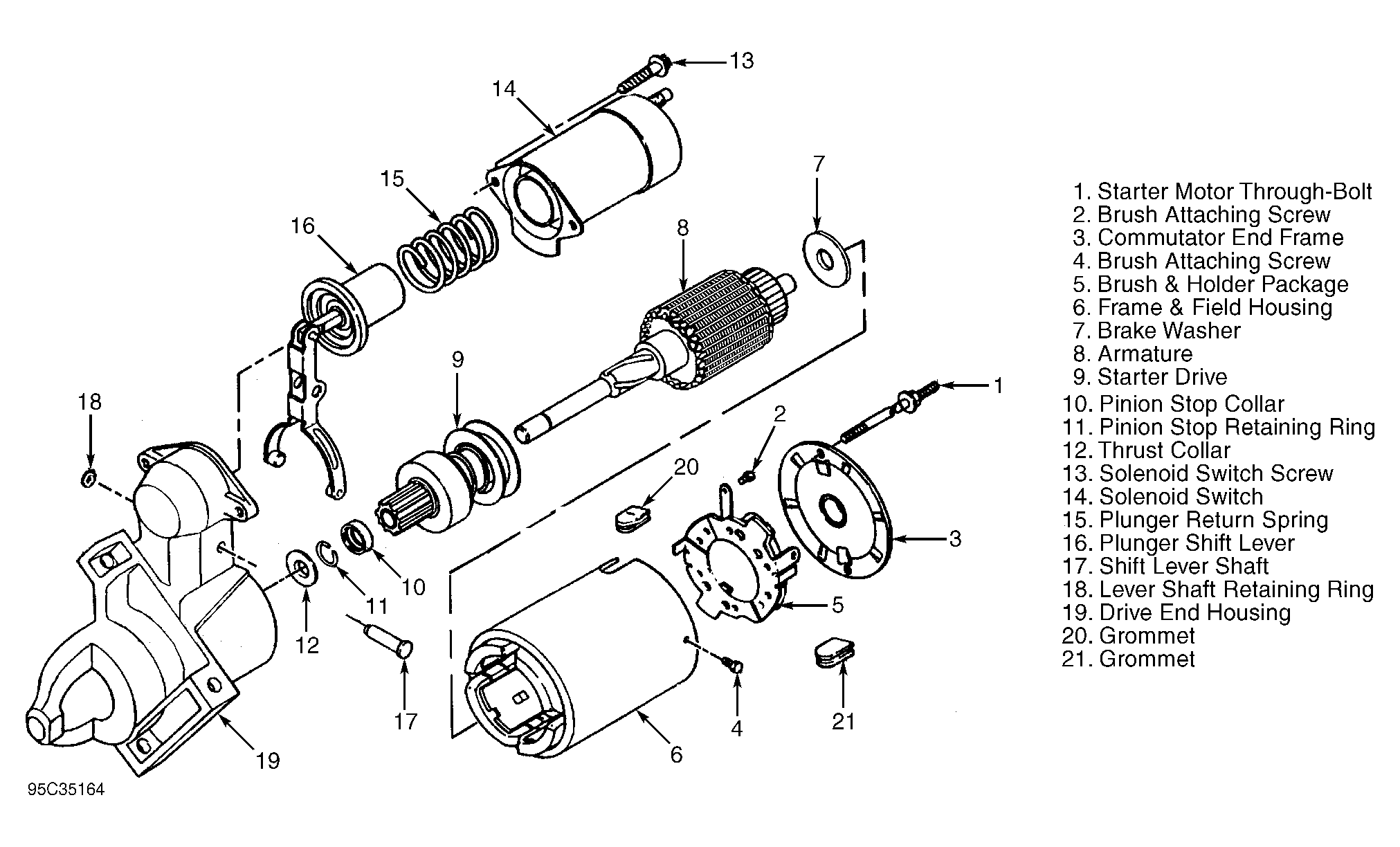

Fig 1: Exploded View Of Delco-Remy Starter Motor (SD205 - Century & Ciera)

Courtesy of GENERAL MOTORS CORP.
