Toe-In Adjustment (Front)

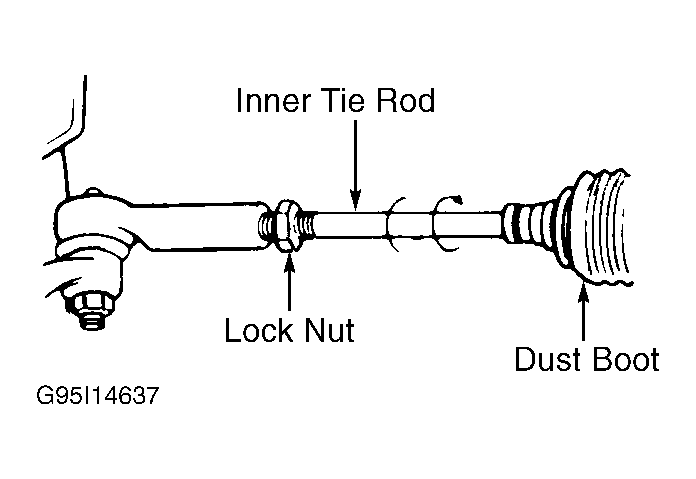

Loosen tie rod end lock nut. See Fig 1 . Loosen clamp securing dust boot to inner tie rod. Rotate inner tie rod until toe-in is as specified. See WHEEL ALIGNMENT SPECIFICATIONS . Tighten lock nut to specification. See TORQUE SPECIFICATIONS . Ensure steering gear dust boot is straight after adjustment. Tighten dust boot clamp.
