Cs144 (5.7L)

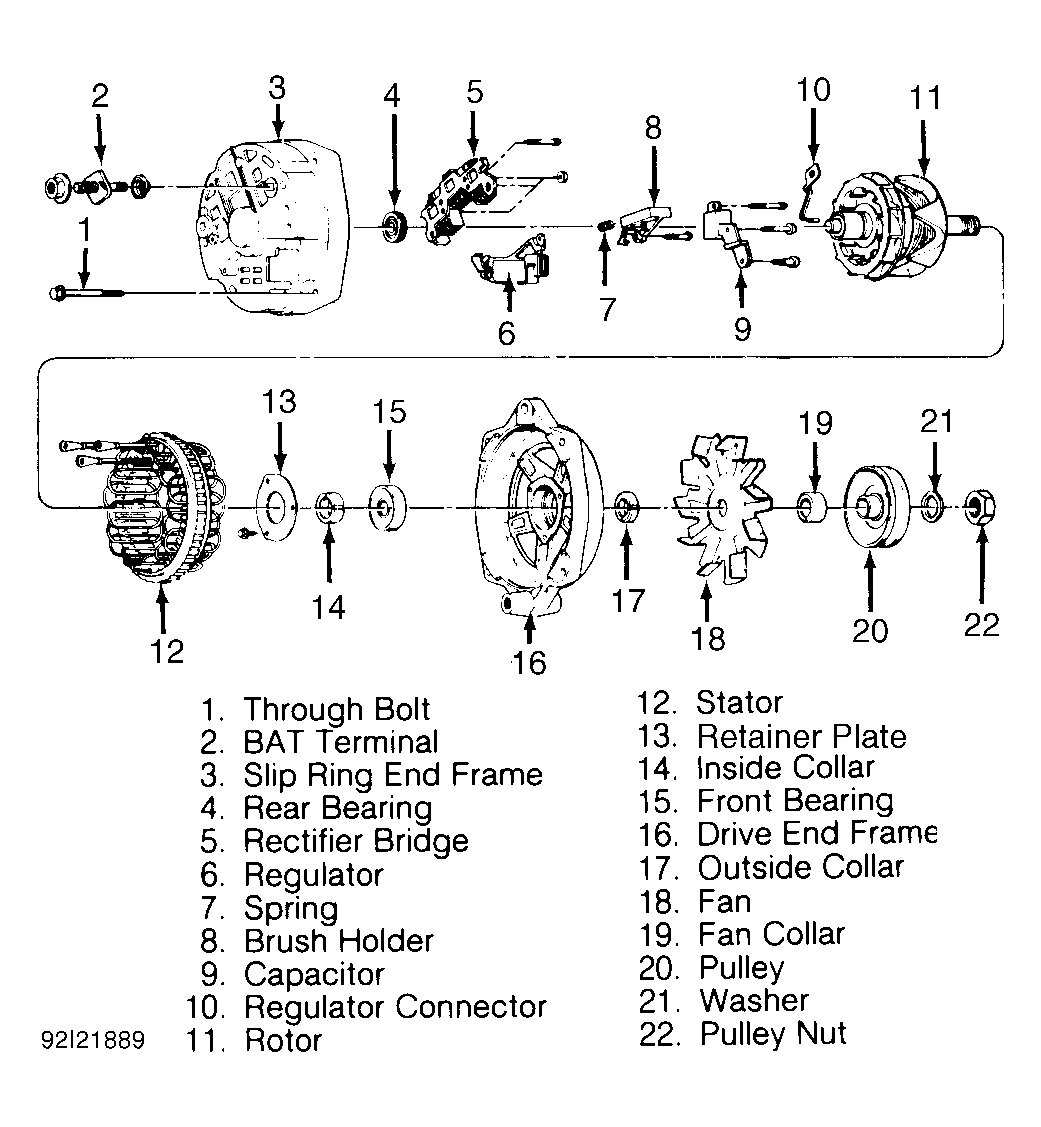

  1. Scribe end frames to fascilitate reassembly. Remove through-bolts and separate end frames. Unsolder brush connections. Remove attaching screws and connectors. Remove regulator and brush holder. See Figure. Clean NEW brushes with soft dry cloth.
  2. Put brushes in holder and hold with brush retaining pin. See Figure. Install brush holder into generator by reversing removal procedure. To reassemble generator, reverse disassembly procedure. Remove brush retainer pin after tightening through-bolts.
