Torque Specifications
TORQUE SPECIFICATIONS
Application
Ft. Lbs. (N.m)
Starter Mounting Bolts
4.3L & 5.7L (VIN P)
35 (47)

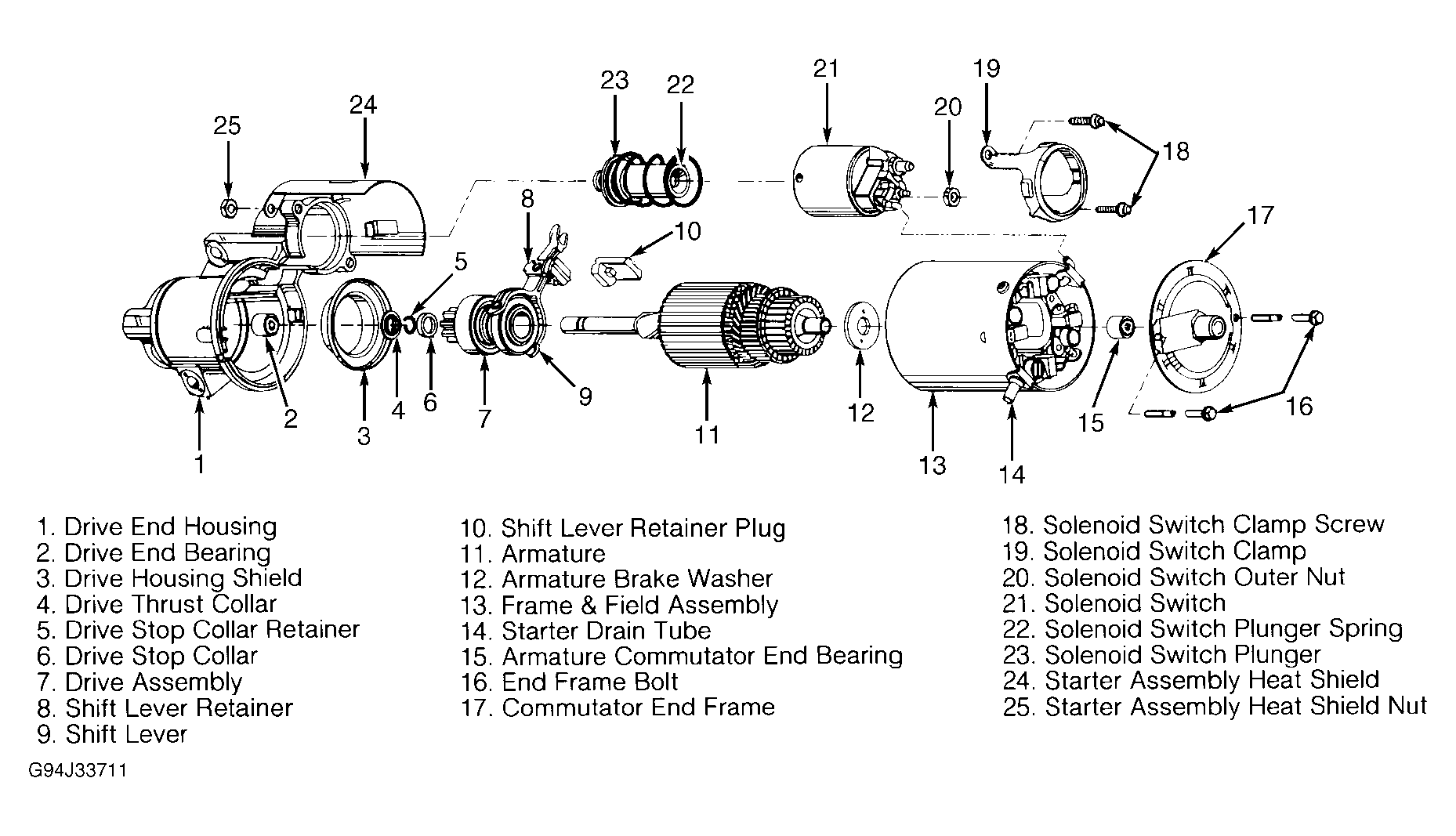

Fig 1: Exploded View Of Delco-Remy Starter Motor (SD260) (Caprice, Impala SS & Roadmaster)
Courtesy of GENERAL MOTORS CORP.

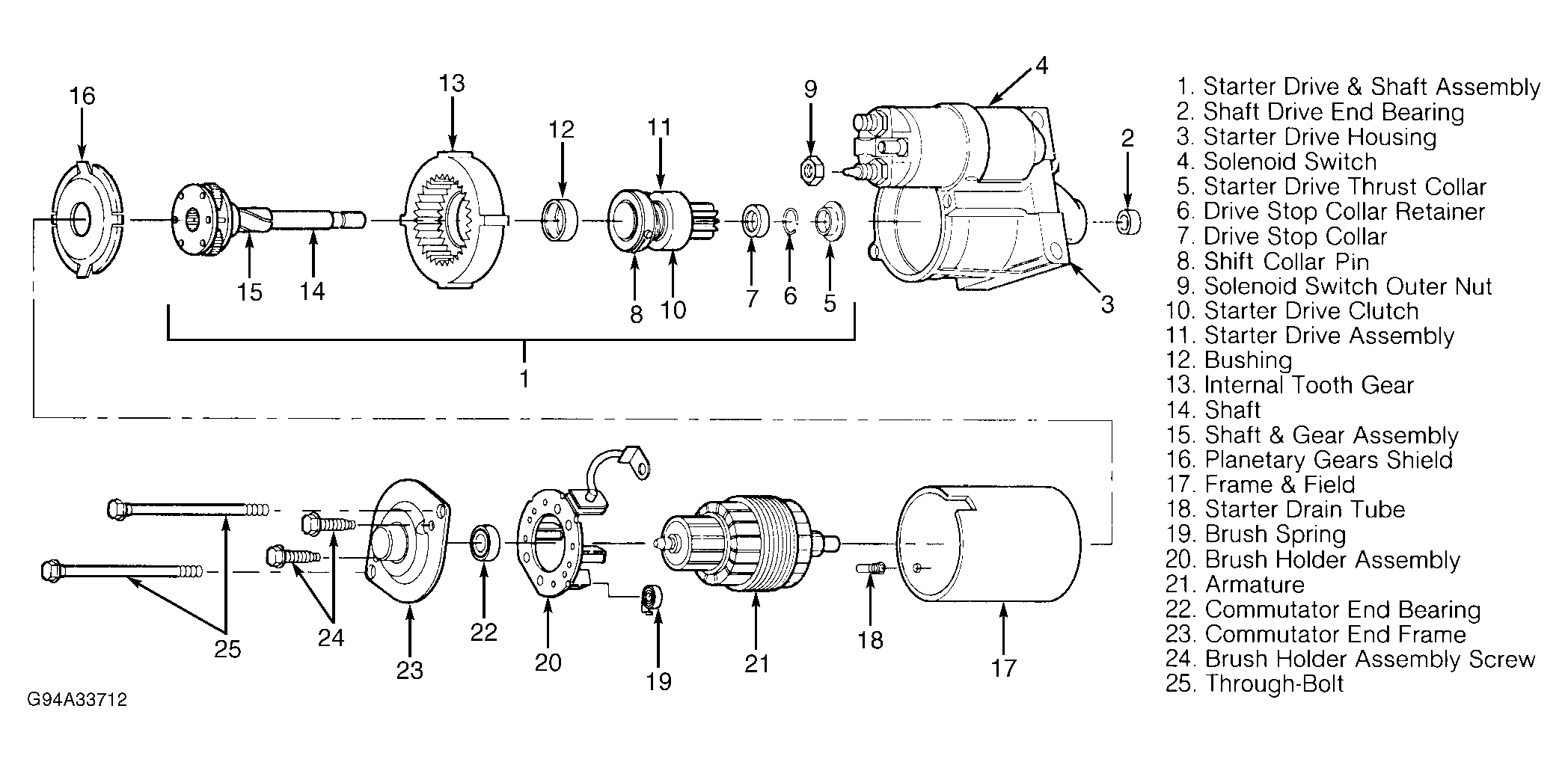

Fig 2: Exploded View Of Delco-Remy Starter Motor (PG250) (Caprice, Impala SS & Roadmaster)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
