Diagnostic Aids

An intermittent problem can be caused by misrouted harness, rubbed-through wire insulation or broken wire inside insulation.

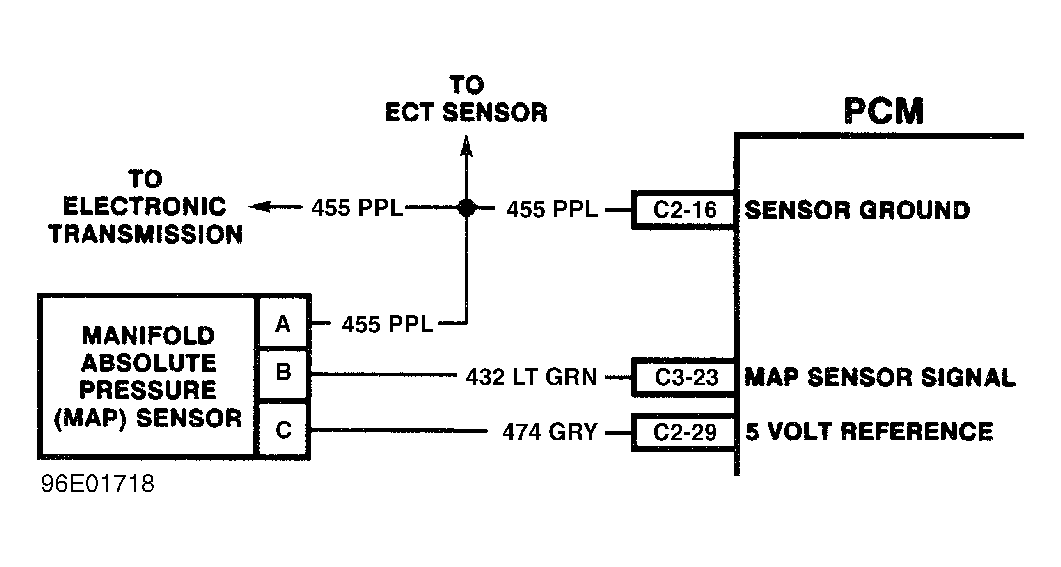

Fig 1: DTC P0106 Schematic

Courtesy of GENERAL MOTORS CORP.
