Inspection (Column Jacket)

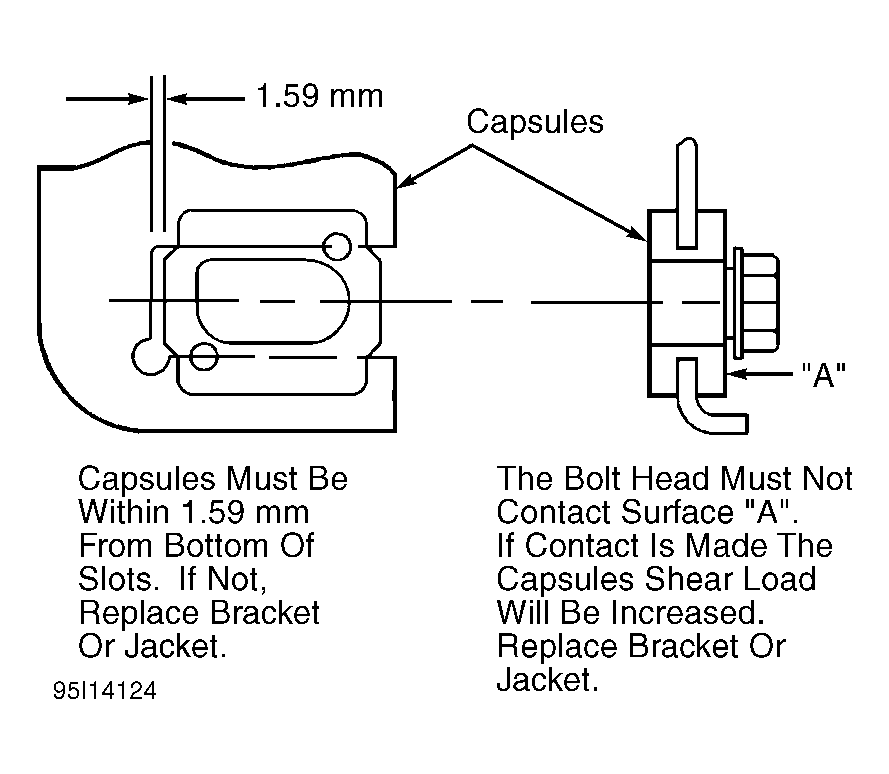

Remove lower bearing from bottom of column. Using COLUMN JACKET COLLAPSE MEASUREMENTS table as a guide, measure distance between points on column jacket as specified in illustration. See Fig 2. If distance measured is not as specified, replace column jacket.
COLUMN JACKET COLLAPSE MEASUREMENTS
| Illustration | In. (mm) |
|---|---|
| 10 | 11.11-11.15 (282.27-283.27) |
