Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component |
Component Location |
| Circuit Breakers |
In fuse block. |
| Fuse Block |

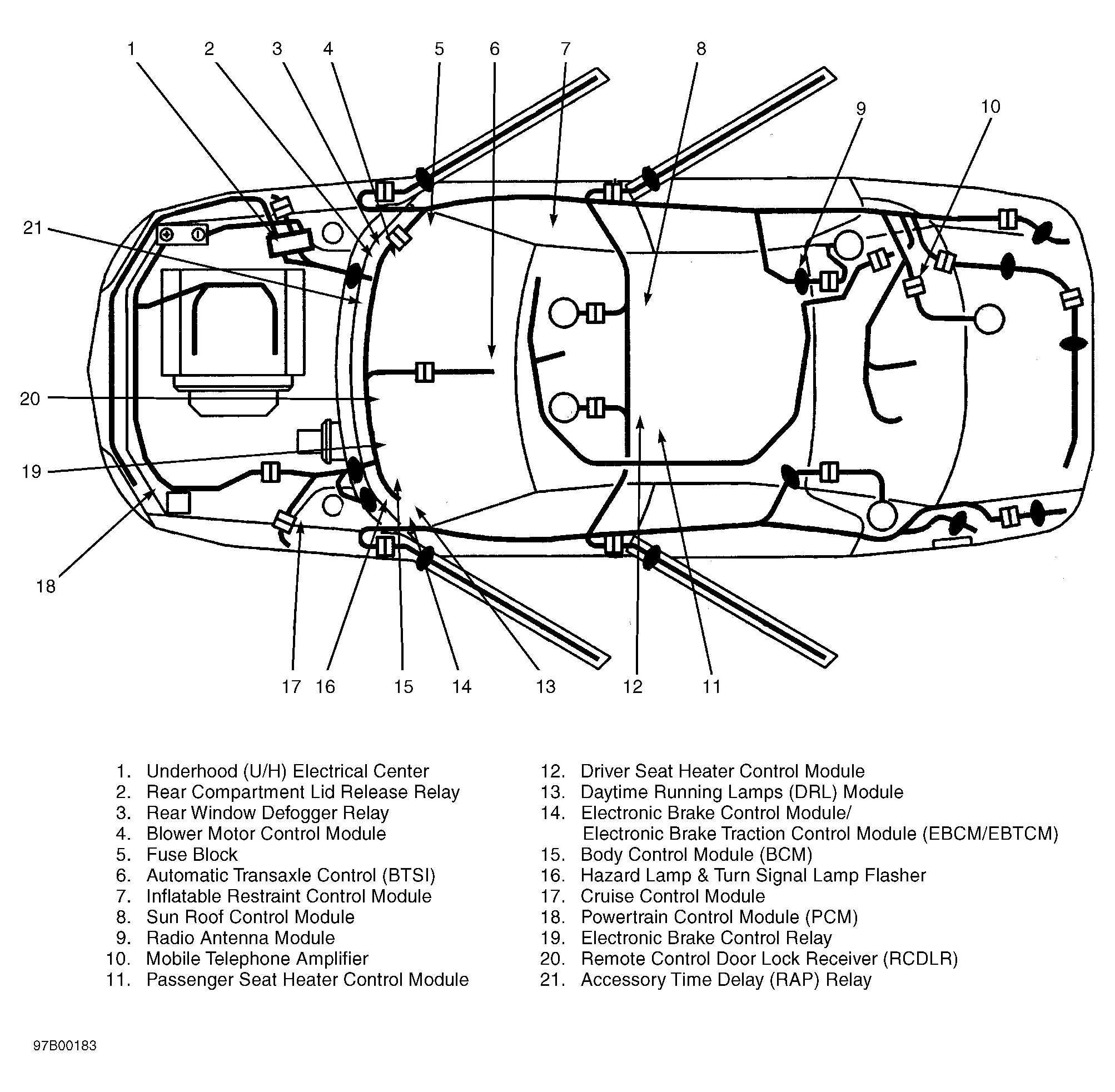

Behind right side of dash, in right door opening. See Figure
. |
| Fusible Links |
Front of engine, on starter assembly. |
| Underhood (U/H) Electrical Center |
Mounted to right strut tower. See Figure
. |
