Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Top Of Car

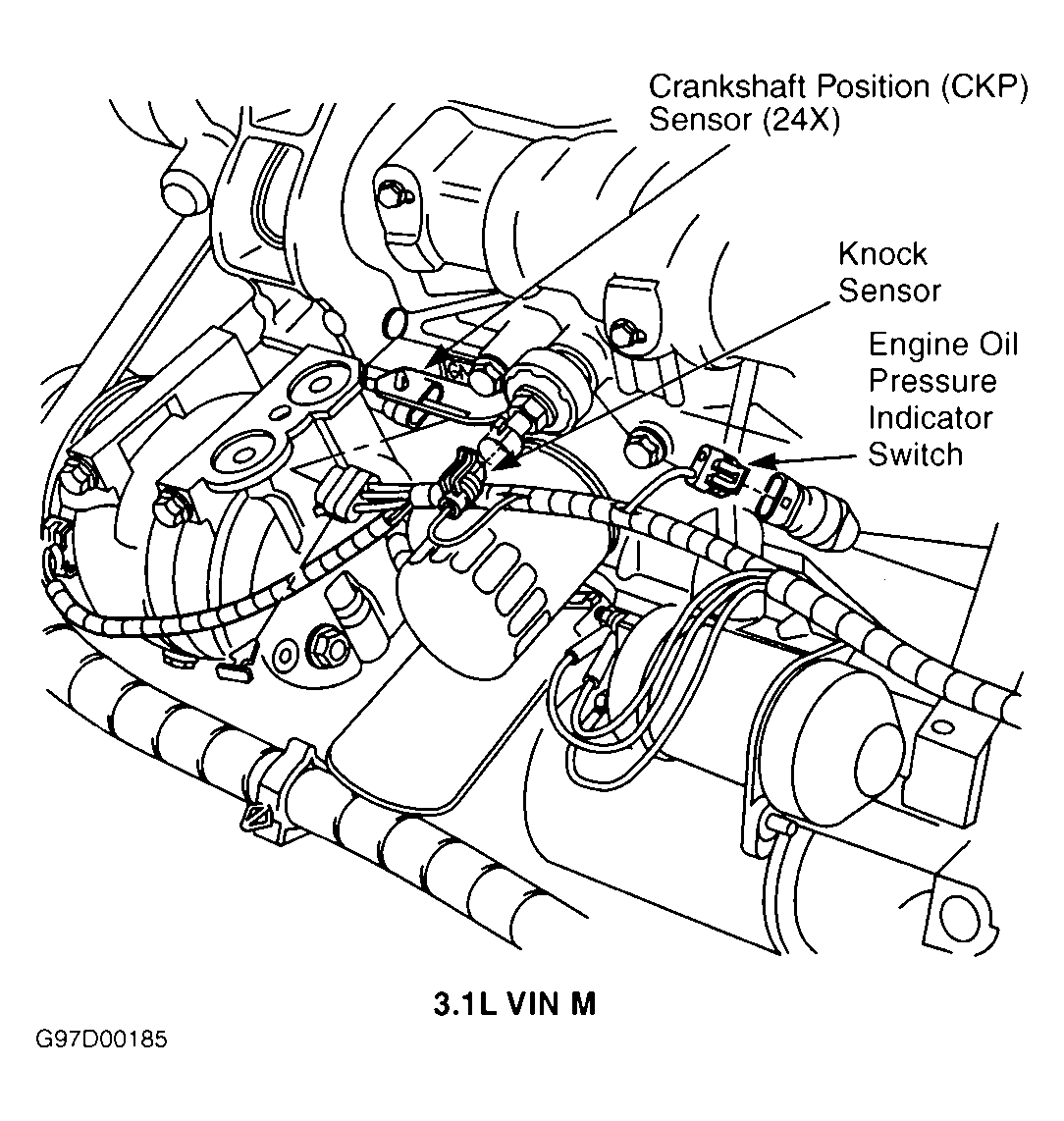

Fig 2: Left Rear Of Engine (3.1L VIN M)

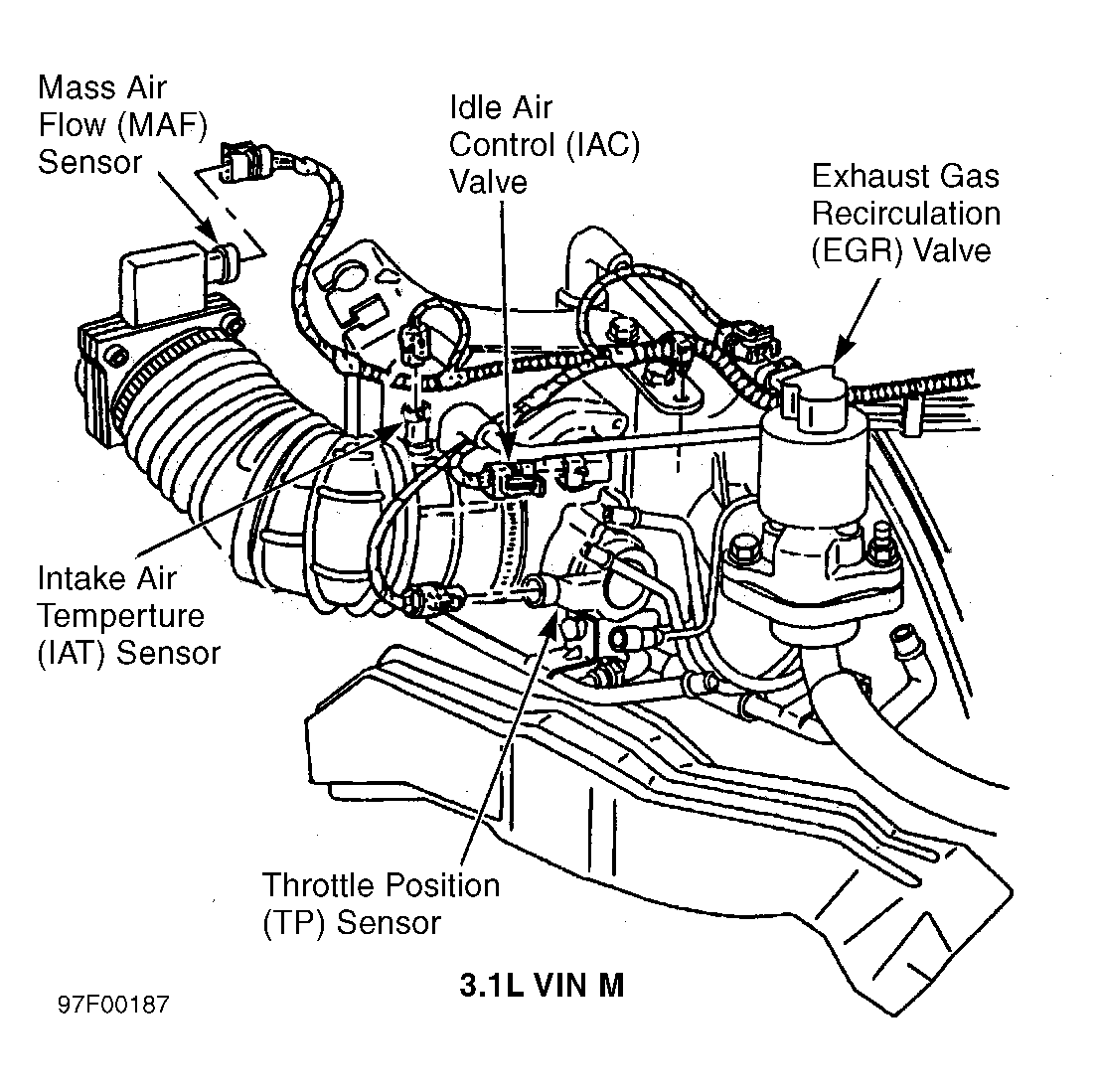

Fig 3: Top Of Engine (3.1L VIN M)

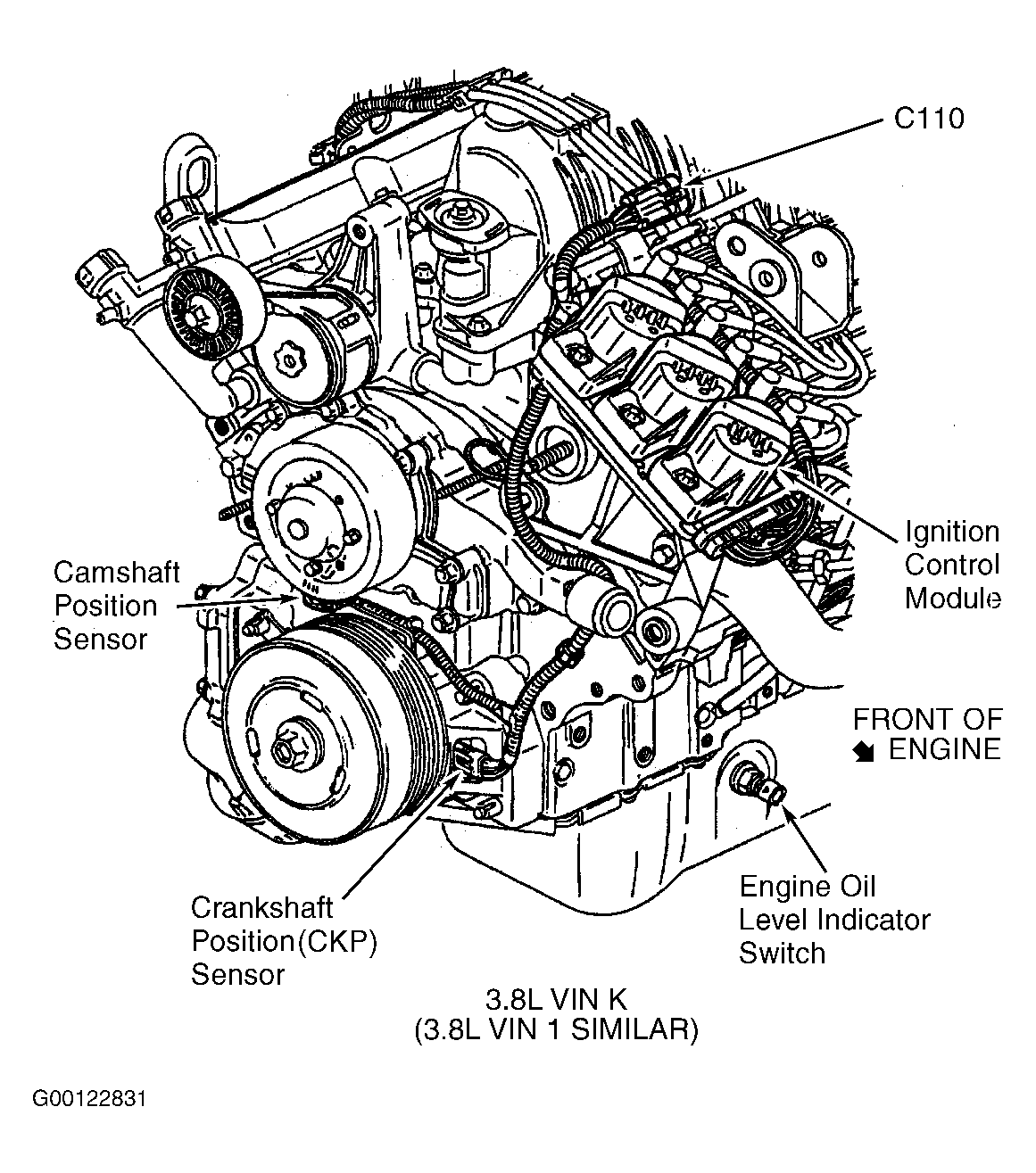

Fig 4: Front Of Engine (3.8L VIN K)

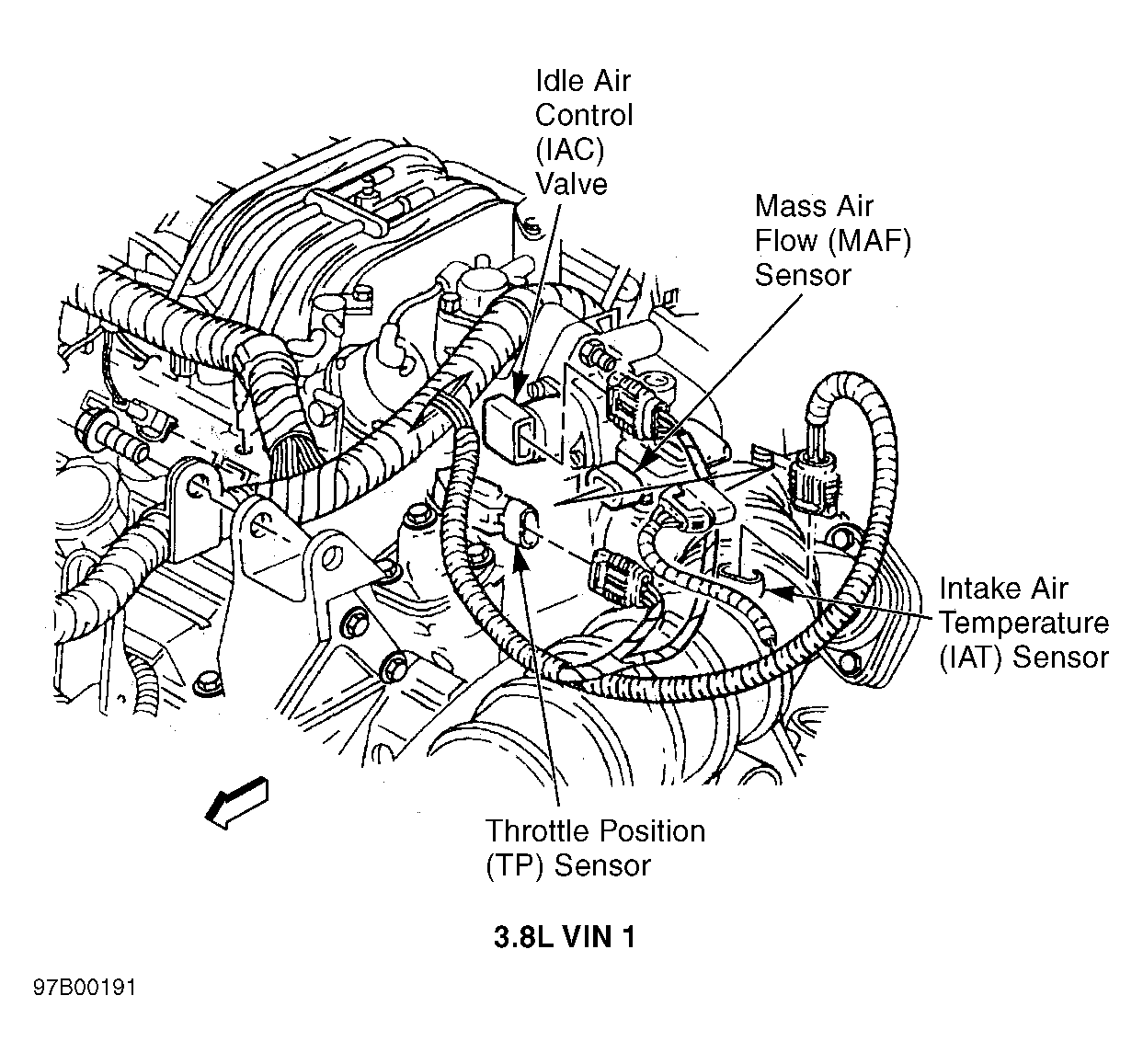

Fig 5: Top Of Engine (3.8L VIN 1)
