Connector Terminal Identification
>>
Accessory Time Delay (Rap) Relay
>>
Grand PRIX
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Grand PRIX

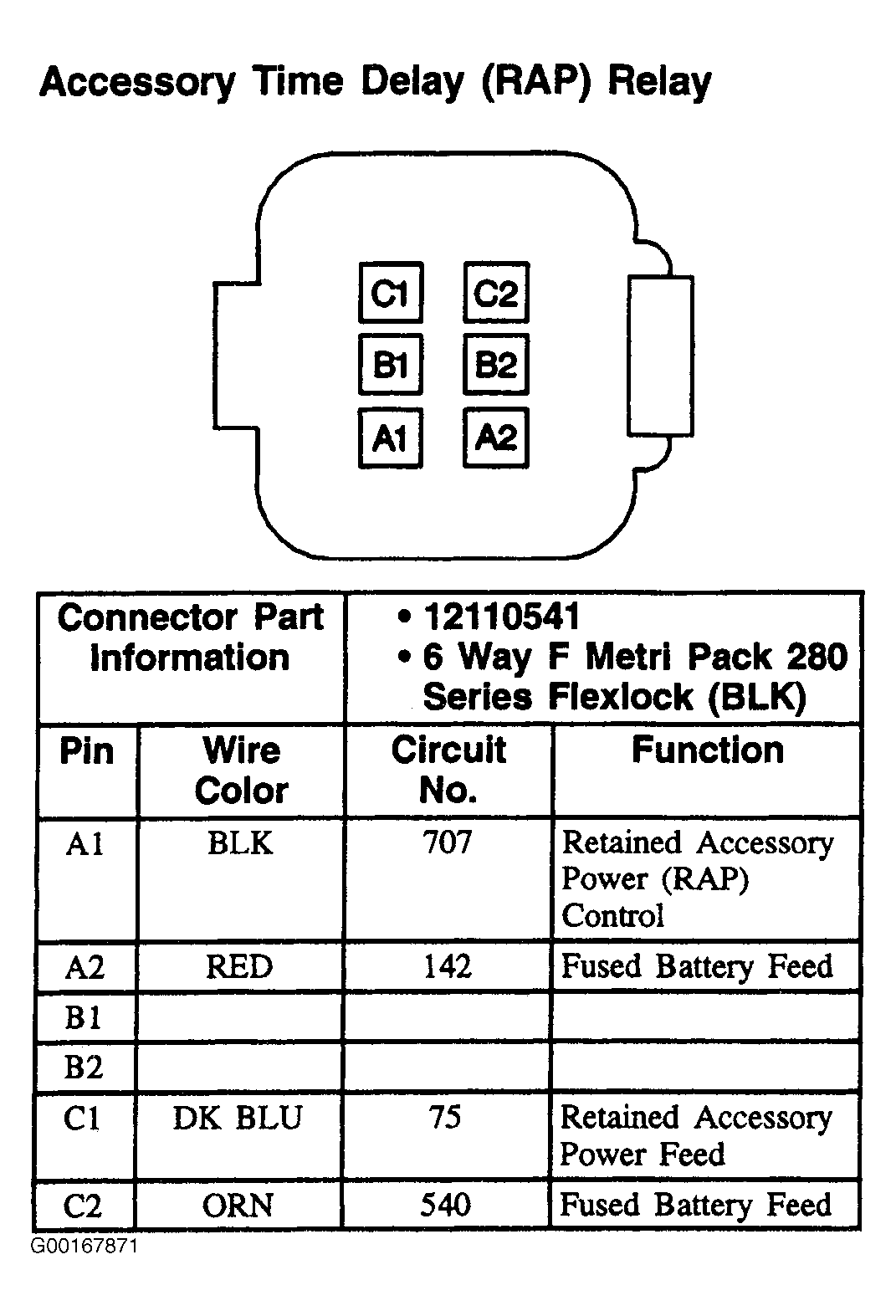

Fig 1: Accessory Time Delay (RAP) Relay (Grand Prix) - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
