Blower Motor Control Module

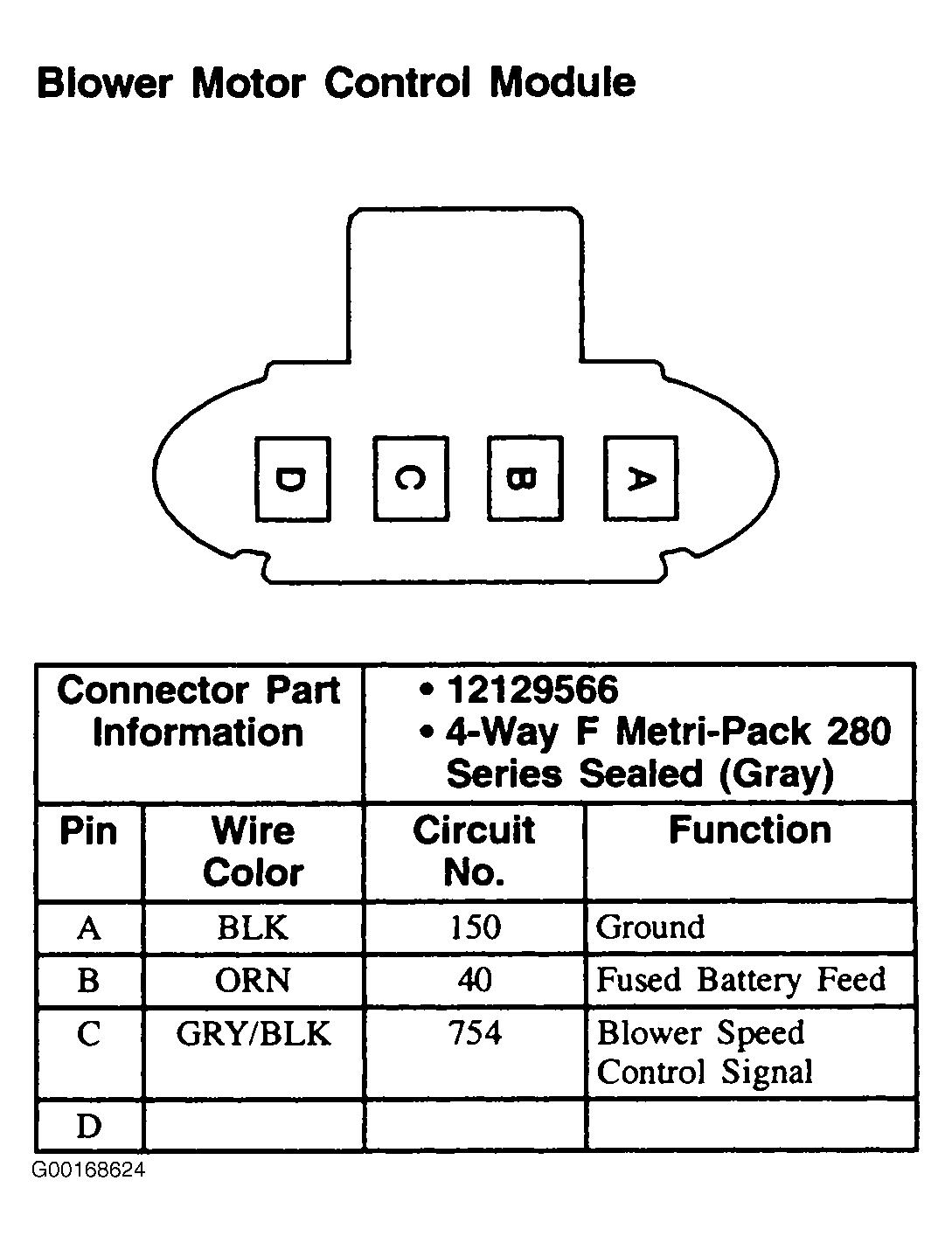

Fig 1: Blower Motor Control Module (Century & Regal) - 4-Pin Connector (Gray)
G00168624Courtesy of GENERAL MOTORS CORP.
