Blower Motor Control Module

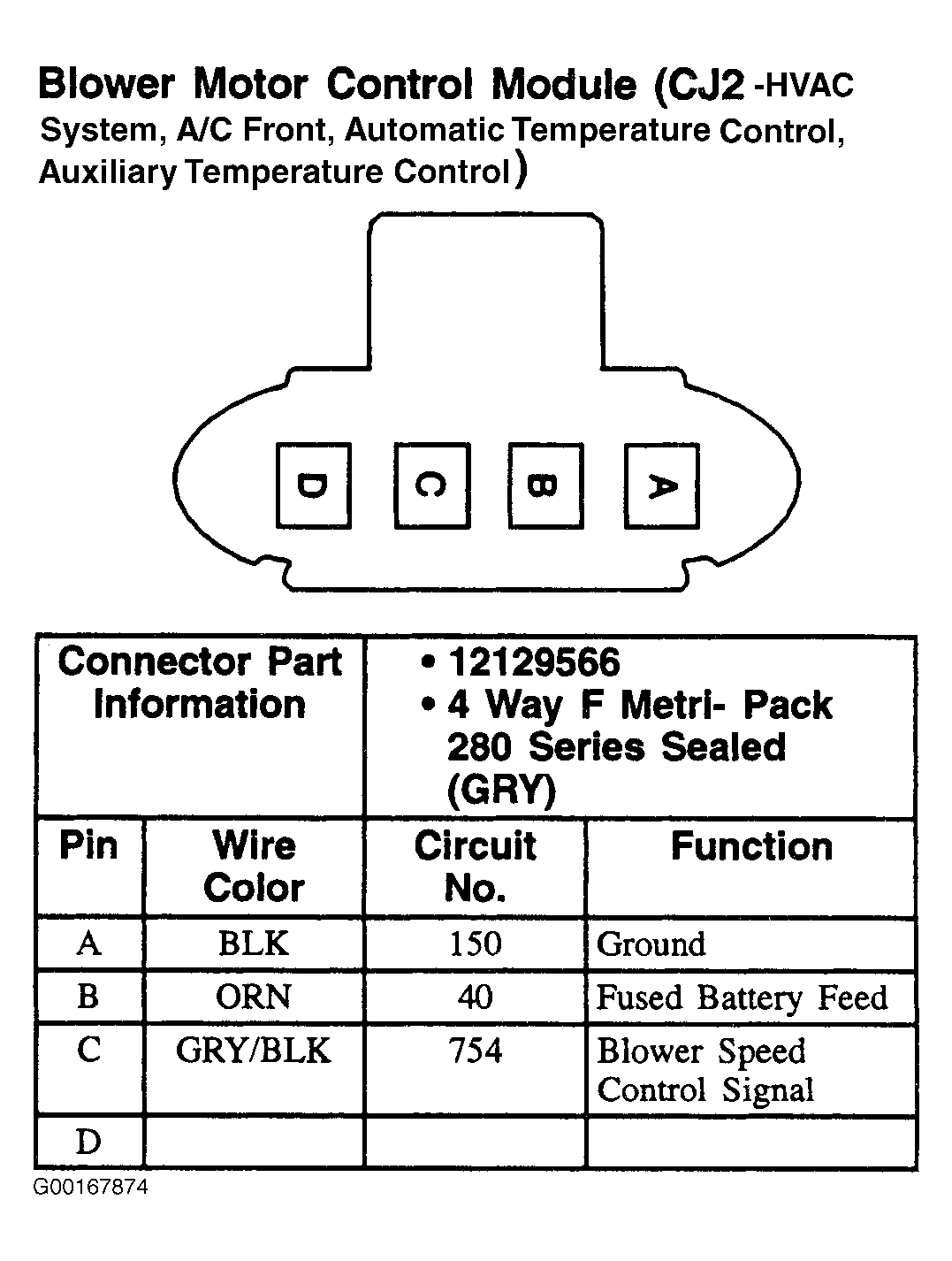

Fig 1: Blower Motor Control Module (CJ2 - HVAC System, A/C Front, Automatic Temperature Control, Auxiliary Temperature Control) (Grand Prix) - 4-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
