Body Control Module (BCM) C2

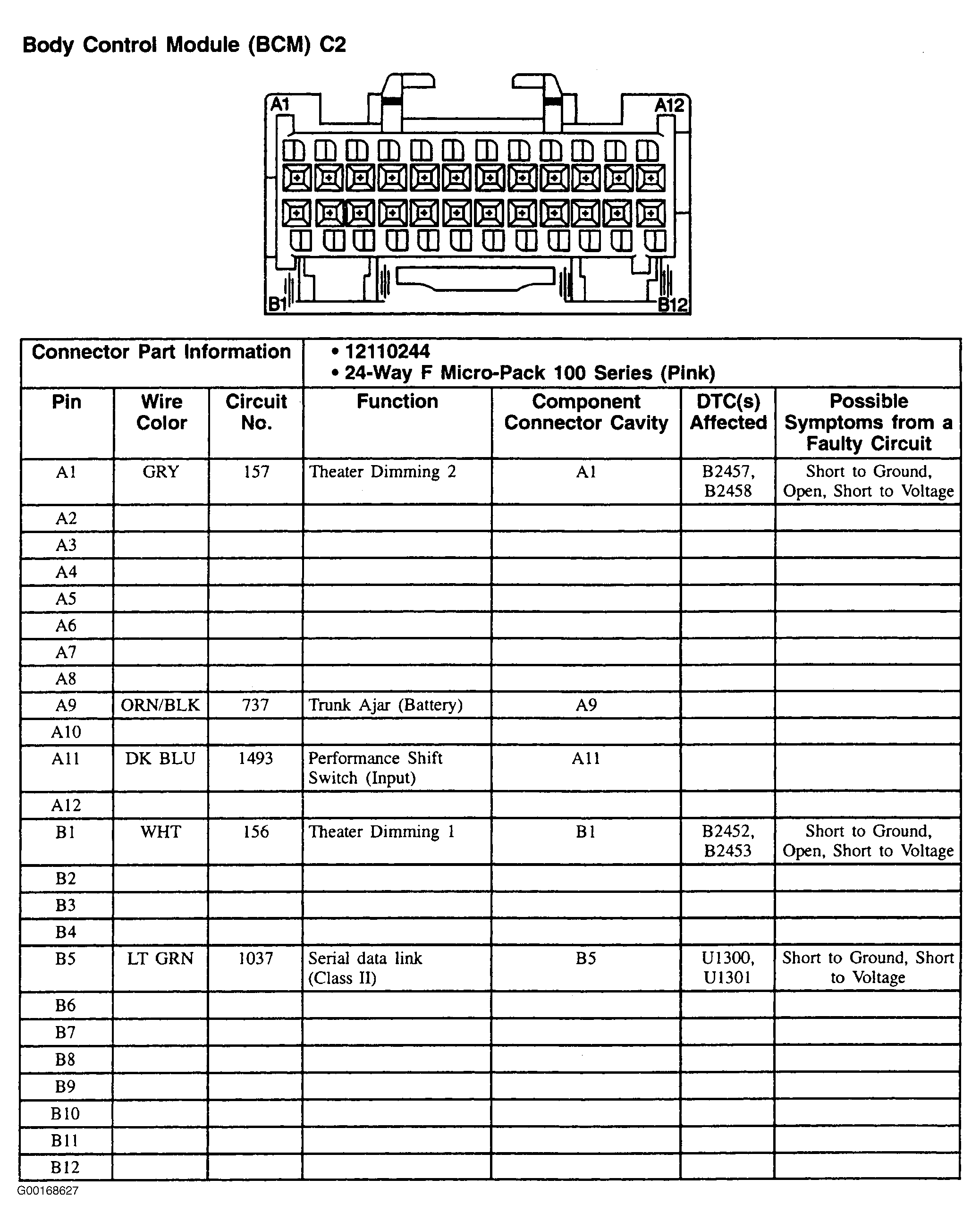

Fig 1: Body Control Module (BCM) C2 (Century & Regal) - 24-Pin Connector (Pink)
G00168627Courtesy of GENERAL MOTORS CORP.
