Body Control Module (BCM) C3

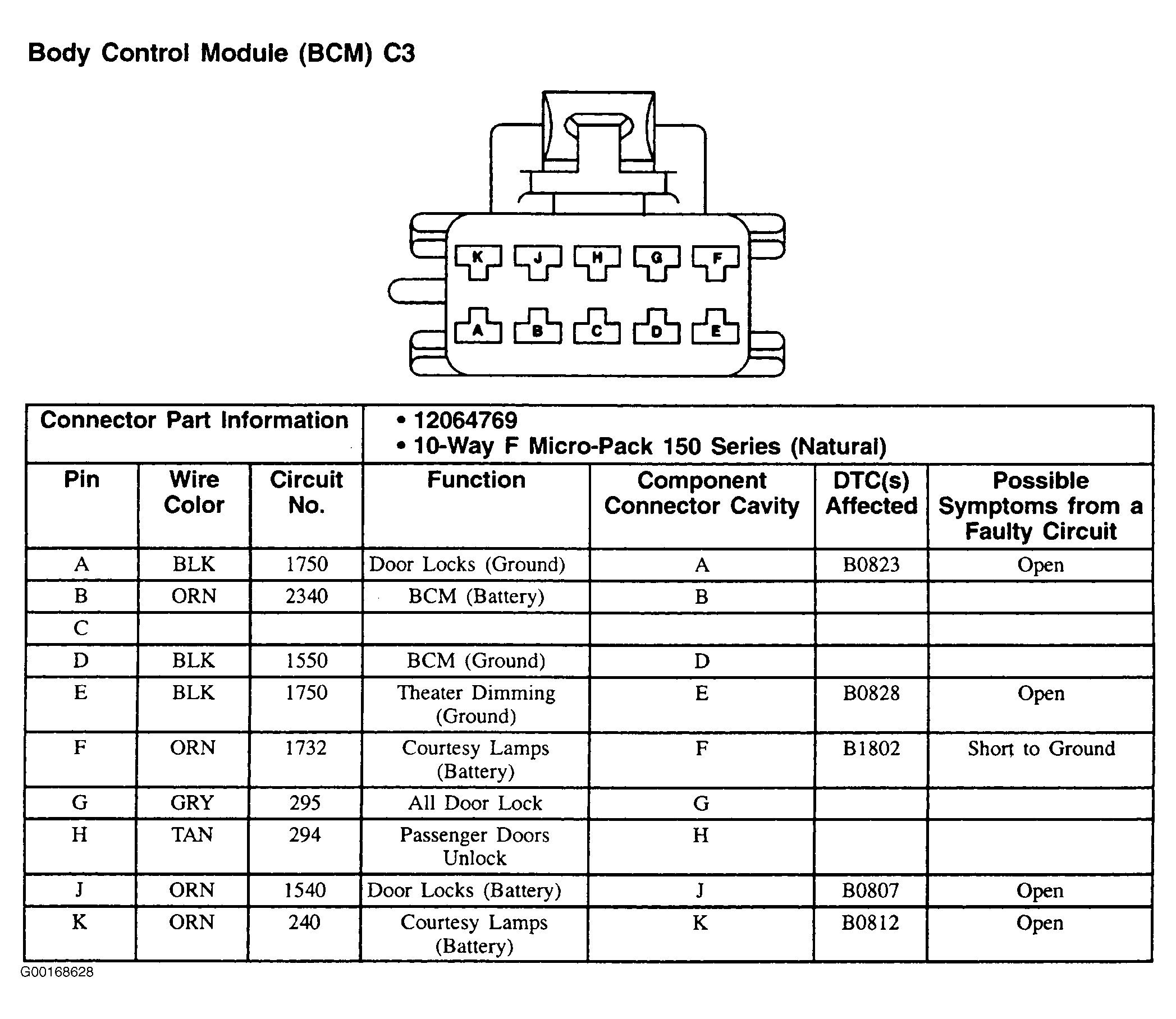

Fig 1: Body Control Module (BCM) C3 (Century & Regal) - 10-Pin Connector (Natural)
G00168628Courtesy of GENERAL MOTORS CORP.
