Grand Prix

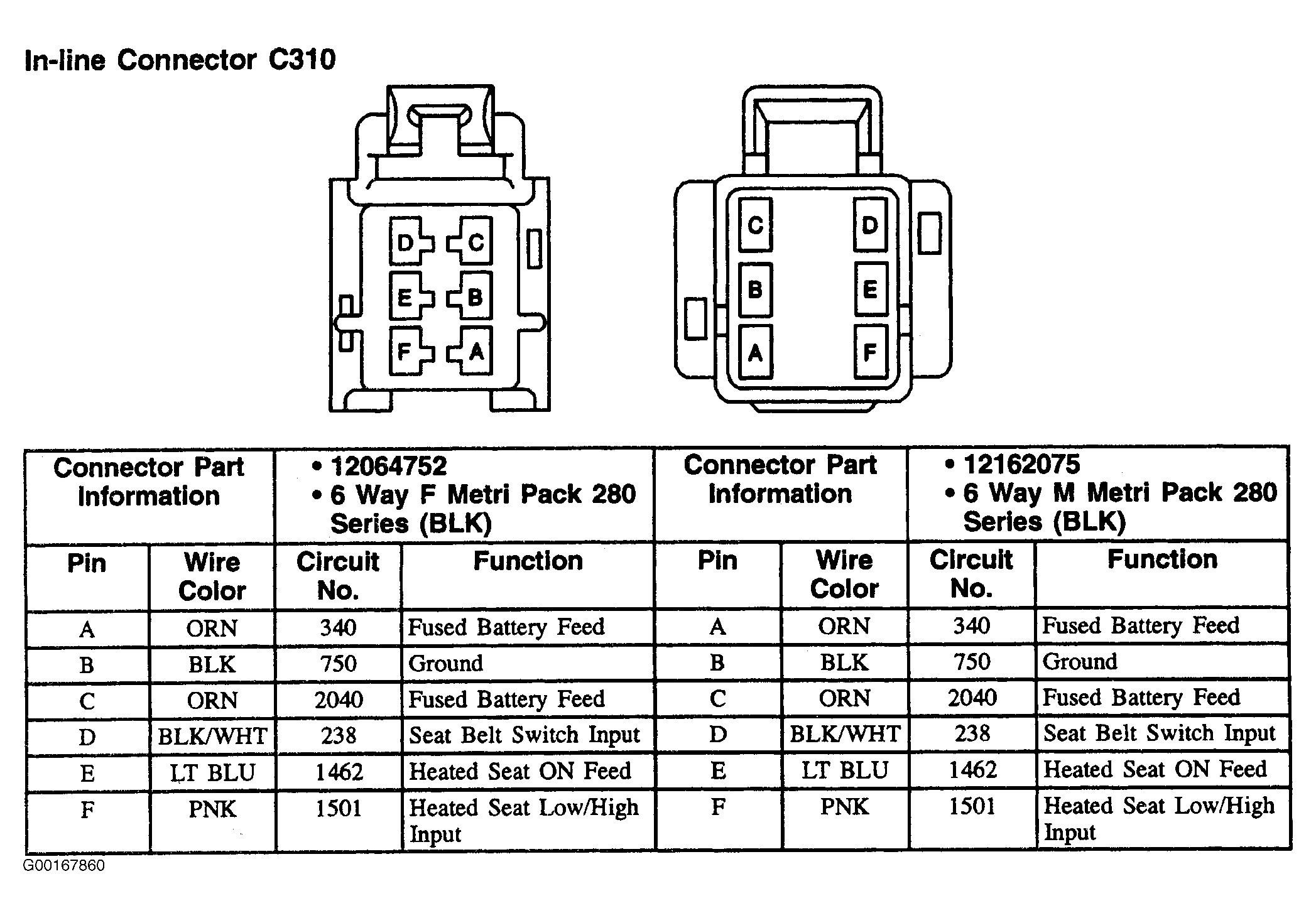

Fig 1: C310 (Grand Prix) - 6-Pin Connector (Black/Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
