C430
>>
Grand Prix
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Grand Prix

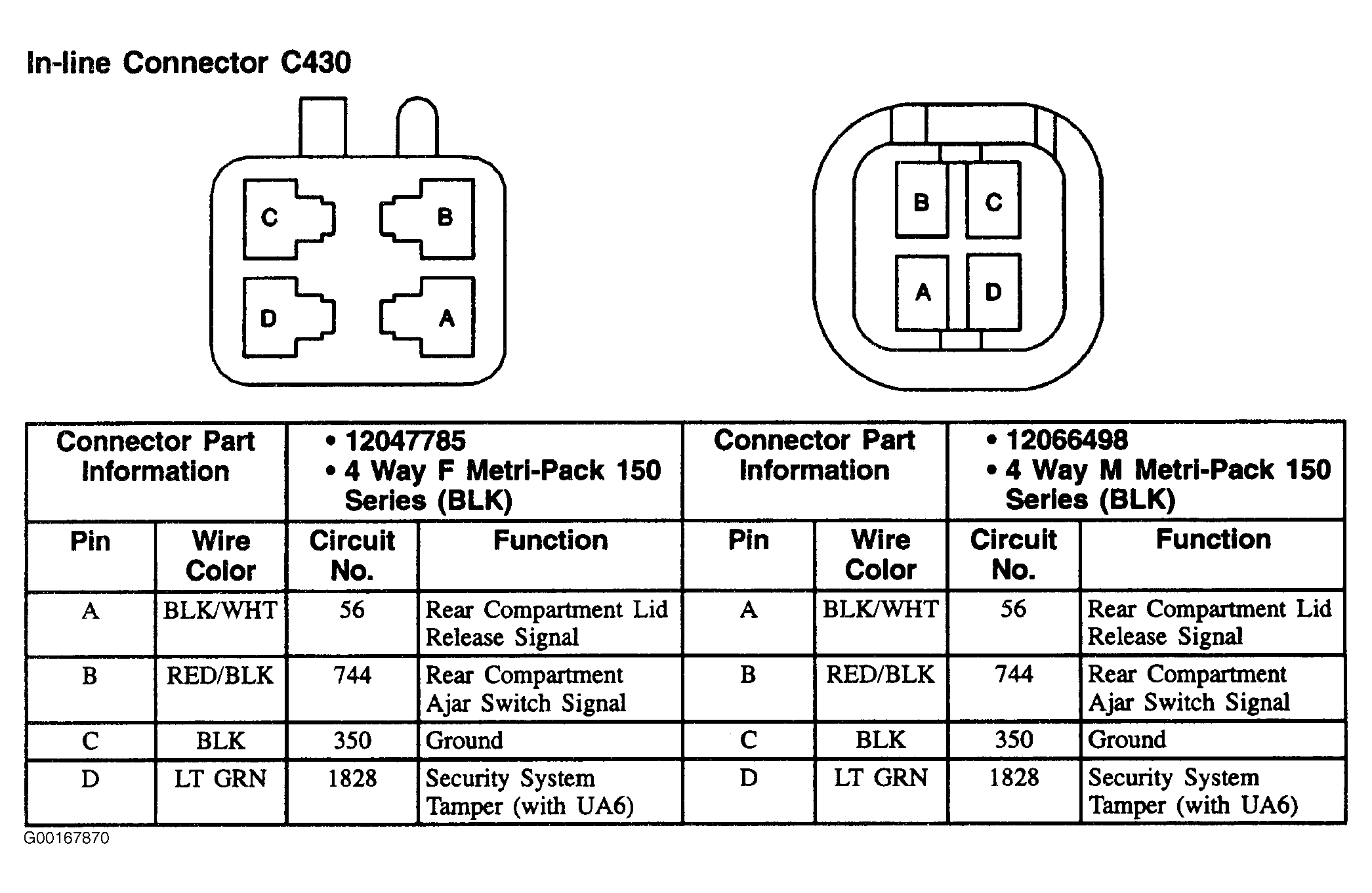

Fig 1: C430 (Grand Prix) - 4-Pin Connector (Black/Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
