Daytime Running Lamp Control Module C2

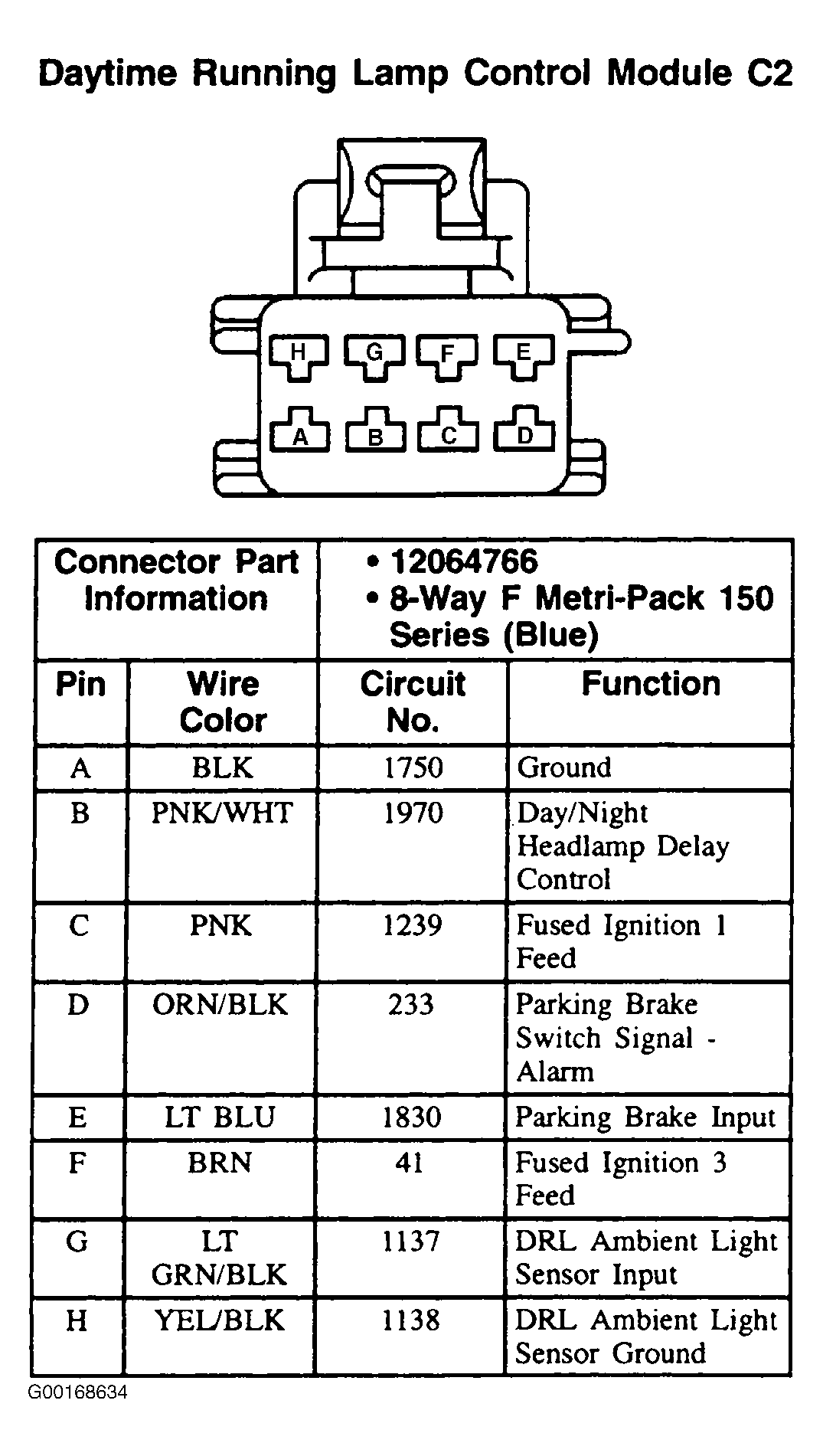

Fig 1: Daytime Running Lamp Control Module C2 (Century & Regal) - 8-Pin Connector (Blue)
G00168634Courtesy of GENERAL MOTORS CORP.
